Detail Information

Name:	Tuya Mini Camera	Resolution:	4MP
Lens:	2.8mm	IR Range:	10m
Solar Panel:	3W	Battery:	5000mAh
Audio:	Two Way Audio	Night Vision:	Infrared & Color Night Vision
Power Supply:	Battery And Type-C	App:	Tuya
Highlight:	2K Tuya Mini Camera , Tuya Mini Camera 4MP , WiFi Two Way Audio Camera

Product Description

Tuya Mini Camera 2K WiFi Connection Two-Way Audio Color Night Vision Siren Light Alarm

Product Introduction:

Engineered for flexible outdoor security, this battery-powered Wi-Fi camera delivers crisp 4MP video quality, capturing every detail with superior clarity. Its high-definition lens ensures sharp imaging, making it an ideal choice for monitoring entryways, backyards, garages, and other areas where wiring is impractical. Whether it's a vehicle in the driveway or a visitor at the door, you can rely on clear footage to identify faces, license plates, and activity from a distance.

Features:

● 4MP
● Powered by Rechargeable Battery
● Support Local SD Card & Cloud Storage
● IR Range: 8-15m
● PIR motion detection
● High Quality Dual-Way Audio
● 3W Solar Panel Optional

What's include:

● 1 x Camera

● 1 x Bracket
● 1 x Screw bag

● 1 x Cable
● 1 x Manual

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

Specification Sheet:

System	Image Sensor	1/2.8" 2Megapixel progressive CMOS
	Sensor Brand And Model	SMARTSENS, SSC333E
	Main Chipset Brand And Model	AK3918AV100N
	Wi-Fi Chipset Brand And Model	AIC8800MC
	Lens Brand And Model	CH2820D
	Lens Length	2.8mm
	Aperture	F2.0
	Speaker	1W 8Ω
	Noise Reduction	3D NR
	Antenna Gain (dBi)	1.5dB
Network and condition	Wireless Standard	IEEE 802.11 b/g/n
	Wireless Frequency	2.412 GHz ~ 2.474 GHz
	WiFi Encryption Protocol	WPA-PSK/WPA2-PSK, WPA/WPA2, WEP
	Working Temperature	-10℃~50℃
	Storage Temperature	-20℃~60℃
	Working Humidity	20%-85%RH
Basic specifications and parameters	Pairing Method	Scan code mode/ Bluetooth Connection mode
	Two-way Talk	Support
	Motion Detection	Support
	WebRTC	Support
	Area Monitoring Detection	Support
	Privacy area	No
	Humanoid Filtering	Support
	WDR	Automatic wide dynamic range
	Anti Flicker	Support
	IR CUT	Support
	Automatic switching	Support
	Tamper alarm	No
	Sound Alarm	Support
	Sound Detection	No
	Reset button	Reset button (hold andp ress 10 seconds)
	PIR Detection Angle	120° (MAX)
	PIR Detection Distance	8 meters
	Minium PIR Report Time Gap	4.5s
	Local Storage SD Slot	Micro SD Slot (up to 128GB)
	Hot Swappable SD Card	Support
	Condition to trigger local storage	Motion detection
	Local video recording duration	15s
	8G SD Card recording duration	14 Hours
	Condition to trigger cloud storage	Motion detection
	Tuya Cloud Storage	Support
	Privacy Mode	Support
	Power LED Color	Red Green
	Power LED On/Off Control	No
	Status Indicator LED Color	Red,green,blue
	Indicator Color	Charging red, network red and blue light flashing, fully charged green, working blue
	Alexa and Google Assistant	Support
Electrical Specification	Power Supply	Battery and Type-C
	Power Supply by USB without Battery	Not Support
	Working Power Consumption	180mAh
	Standby Power Consumption	150uA
	Motion detection Image Resolution	HD(640*360)
	Live Stream Video Resolution	HD(25601440) / SD(640360) @15fps
	Live Stream Effective Pixels	4MP
	Live Stream Effective Pixels by HW or SW	Real pixels(Hardware straight out)
	Angle of View(H/v/D)	H108.4° V58.1° D128.5°
	Angle of Pan and Tilt	N/A
	Microphone Sensitive	-38dB
	Audio Input	Built in Mic
	Audio Output	Built in Speaker
	Video Compression	H.264 / H.265
	Audio Compression	G.711
	Frame Rate	Main stream:1024Kbps Sub-stream:256Kbps
Lighting specifications	Night Vision Mode	Full color and Black&white mode
	Number of infrared light	4 pcs
	IR Distance	10m
	Manual switch infrared night vision function	Not Support
	Number of white light	3 pcs
	White Light Color Temperature	6500K
	White Light Color Rendering index	1900/3/10
	White Light Luminous Flux	45lm
	White Light Lighting Angle	120°
	White Lighting Distance	Distance 10 meters
Battery	Battery Type	1951/1/22
	Battery Capacity	5200mAh
	Battery Accuracy	1900/1/0
	How many times of triggers per day	10 times, 2 months
	Abnormal Battery Voltage Level and the percentage	Below 3.4V ,less than 5%
	Battery charging time (Input DC 5V1A)	4 hours
	Battery protection	Built-in li battery
Solar Panel	Solar Panel	Support
	Does Solar Panel Include Battery	No
	Solar Panel Output Power	3W
	The Length of Cable of Solar Panel	1.9M-2M
	Working Temperature	－20℃~60℃
	Storage Temperature	－20℃~60℃
	Working Humidity	≤60%
	Charging time for the camera	According to the weather and light conditions
	Ingress Protection(IP)	IP65
	Solar Panel Net Weight	0.296kg
Mechanical Specification	Housing Material	PC + ABS+IRON
	Housing	White
	Hosing Flame Retardance	V-0
	Ingress Protection(IP)	IP65
Product size	Product Dimension	64x62x90mm (camera), 47.8x47.8x77mm (bracket)
	Net Weight	245g
	Power Cable Length	1.5m

More Information:

This camera provides HD night vision with two flexible modes, ensuring clear monitoring even in complete darkness. You can switch between modes according to different surveillance needs.

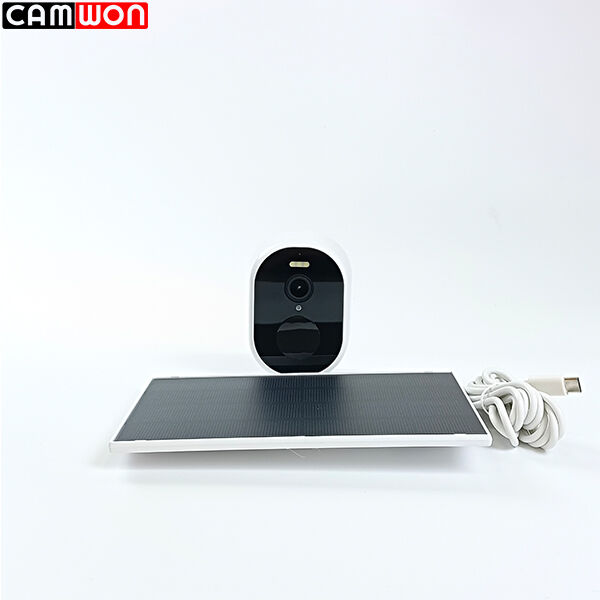

2K Tuya Mini Camera 4MP Two Way Audio Camera WiFi Connection With Light Alarm 0

This camera features two-way talk functionality, enabling real-time voice communication between you and your family members at home.

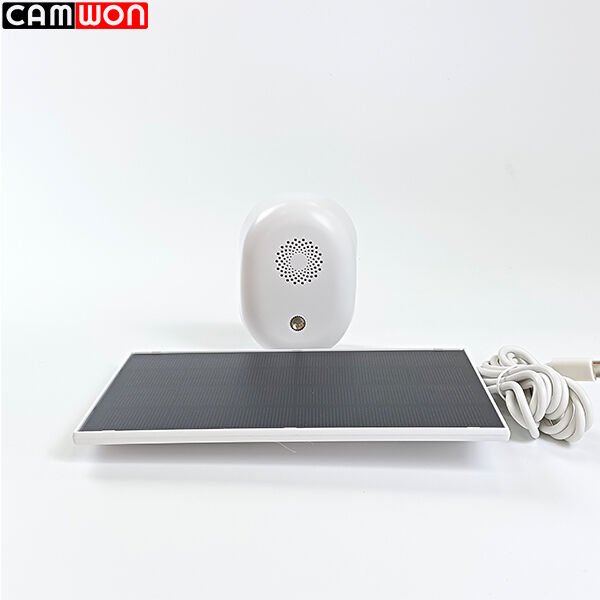

2K Tuya Mini Camera 4MP Two Way Audio Camera WiFi Connection With Light Alarm 1

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	WIP-TB400SC

Minimum Order Quantity:	One Carton

2K Tuya Mini Camera 4MP Two Way Audio Camera WiFi Connection With Light Alarm

2K Tuya Mini Camera

Tuya Mini Camera 4MP

WiFi Two Way Audio Camera

Home Security CCTV Camera,

Wireless CCTV Security Camera,

Human Detection Security Camera
