Detail Information

Name:	NVR Security Camera System	Screen:	10.1 Inch Touch Screen
Camera:	4pcs 3MP Bullet Camera	Channel:	4CH
Night Vision:	Infrared Night Vision	Camera Housing:	Metal
Storage:	TF Card And SSD	App:	Tuya
Highlight:	Tuya NVR Security Camera System , LCD Outdoor Wireless Camera System , Outdoor Wireless Camera System 4CH

Product Description

4CH 3MP Wireless Touchscreen LCD NVR Surveillance Camera System Outdoor Tuya Camera System

Product Introduction:

This all-in-one 4-channel 3MP wireless security camera system integrates a touchscreen LCD NVR with weatherproof outdoor cameras, powered by the Tuya Smart ecosystem for seamless smart home & remote monitoring.

Designed for plug-and-play simplicity, it delivers crisp 3MP high-definition video, stable wireless transmission, and one-touch local control via the built-in touchscreen display. The outdoor cameras feature IP66-rated weatherproofing, infrared night vision, and motion detection to safeguard homes, yards, shops, and warehouses around the clock.

With Tuya App remote access, you can view live feeds, playback recordings, receive motion alerts, and manage the system from anywhere via smartphone or tablet. Supporting H.265 video compression for efficient storage and smooth streaming, this reliable NVR kit combines easy operation, robust outdoor performance, and smart connectivity to provide cost-effective 24/7 surveillance protection.

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

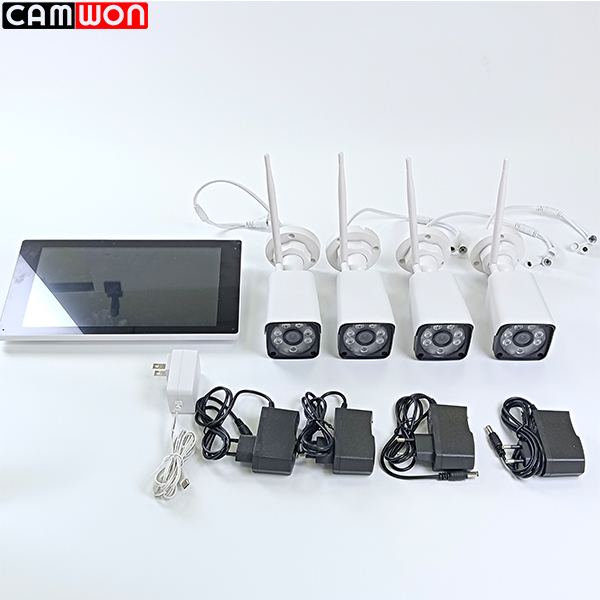

What's include:

• 4 x Camera

• 1 x 10.1 inch Monitor
• 1 x Bracket
• 4 x Screw bag
• 1 x Mouse
• 5 x Adapter
• 1 x Manual

Specifications:

APP:		Tuya
Specification of Wireless IP Camera:
System structure	Embedded LINUX design, single-core 32-bit DSP (GK7201V200), pure hardware compression, watchdog, 8MB FLASH, 64MB, Built-in DDR;
Sensor	3MP CMOS (lens optical size: 1/2.7”), color 1.0Lux@F1.2, black and white 0.1 Lux@F1.2; integrated IR-CUT driver, supports linkage control of Sensor+IR-CUT+soft photosensitivity+LED fill light, supports day and night conversion;
Video processing	H.265+/H.265/H.264 video encoding, supports dual streams, supports P and N systems
Frame rate	3 million 15 frames, supports frame rate adaptation
Image output	Main stream: 2304×1296; Sub stream: 640×360
Audio interface	1 input, supports microphone or pickup input; 1 1-way output, built-in amplifier (recommended speaker 8Ω/2W);
Audio processing	G.711 codec standard, supports two-way voice intercom function, supports audio and video synchronization; 8khz sampling rate
Network interface	1 RJ45 Ethernet interface, 10/100M adaptive, 8KV anti-static ability;
WiFi	1 DC3.3V WiFi module, supports 2.4G frequency;
Signal interface	1 IRCUT interface, supports IR-CUT and image linkage control;
Lightning protection	Power supply and network are fully lightning-proof, front-end power input is lightning-proof, anti-static, and anti-reverse connection
ONVIF protocol	Not Support
OTA	Support
Business function	Supports OSD, supports real-time video transmission, supports motion detection, supports human detection
Power supply	DC12V power input interface, 1.2W-3.3W power consumption;
Working environment	-20℃～+55℃

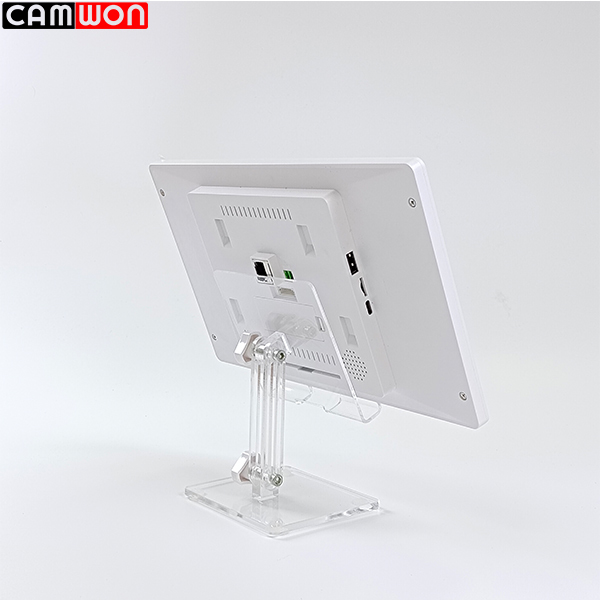

Specification of NVR Monitor:
Model	Wireless Video Monitor
Image Signal Processor	SOC
Operating System	LINUX
LCD	10.1-inch TFT LCD
Resolution	1280*800
Operation method	Capacitance touch screen
Operation interface	Flat style UI interface, easy to operate
Outdoor camera	Max support 8*Outdoor camera
Video Compression	H265/H264
Record	Support scheduled recording and event recording
Storage	TF card and SSD
Hard Disk	1 x SSD, Max 1TB
TF Card	1 x TF Card , Max 256GB
USB Interface	1 × USB 2.0
Audio Input	Built-in microphone
Audio Output	Built-in speaker
Audio Compression Standard	G.711U
Audio Compression Rate	64Kbps
Sound Quality	Supports noise suppression and echo cancellation
APP	Support tuya APP,Support remote intercom and unlock
Network Interface	1 RJ-45 10/100M self-adaptive
Power Supply	DC12V
Power Consumption	＜10W
Working Temperature	`-10℃ ～55℃
Working Humidity	10%～90%
Dimensions	270mm165mm30mm

Tuya NVR Security Camera System Touchscreen LCD Outdoor Wireless Camera System 4CH 3MP 0

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	KVR-T4204A

Minimum Order Quantity:	One Carton
