3MP Tuya Security System 4 CH Wireless Security Camera System

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: KVR-T4204C
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: Tuya Security System Screen: 10.1 Inch
Lens: 3.6mm Channel: 4CH
Face Detection: Support Human Detection: Support
Playback: Support App: Tuya
Highlight:

3MP Tuya Security System

,

Tuya Security System 4CH

,

4 CH Wireless Security Camera System


Product Description

Tuya Home Life 3MP Wifii Home Security System with Cameras 10.1 Inch 4CH Monitor



Product Introduction:

3MP Super HD Resolution: Capture crystal-clear video with 3-megapixel detail (2048 × 1536), sharper than 1080p, ensuring every detail is visible day and night.
10.1 Inch LCD Monitor NVR: The integrated 10.1" HD screen displays 4 cameras simultaneously for real-time local viewing. No extra monitor needed—built-in NVR records directly to a hard drive or Micro SD card.
Stable 2.4G WiFi Connection: Wireless cameras auto-pair to the NVR for quick setup. IP66 weatherproof rating for indoor/outdoor use.
Smart Motion Detection & Alerts: AI human detection minimizes false alarms. Receive instant app notifications, email alerts, or trigger a built-in siren.
Infrared Night Vision: Automatic IR cut filter provides up to 20–30m clear night vision in total darkness.
Two-Way Audio: Built-in microphone and speaker let you listen, talk, and warn visitors or intruders remotely.
Tuya Smart Life App Control: Remote live view, playback, and settings on iOS/Android. Works with Alexa & Google Assistant for voice control.
H.265+ Video Compression: Saves storage space and enables smoother streaming.
Expandable Design: Supports up to 4 cameras; stores video locally via HDD (up to 6TB) or Micro SD (up to 128GB).



Features:

NVR Specification:
1. 8CH 10.1 Inch LCD Monitor NVR
2. Video Input: 4CH
3. Support 2.5 inch Mini Hard Drive
4. Automatic Connection with IP Cameras
5. Support wireless distance over 100m



IP Camera Specification:
1.Resolution : HD 2MP/3MP
2.Lens: 3.6mm
3.IR LEDs Amount: 6PCS IR LEDs
4.Night Vision: 65ft(25m)
5.Weatherproof: IP66
6. Two-way Audio
7. Support Humandroid Motion Detection
Remark: 4 sets/CTN





Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

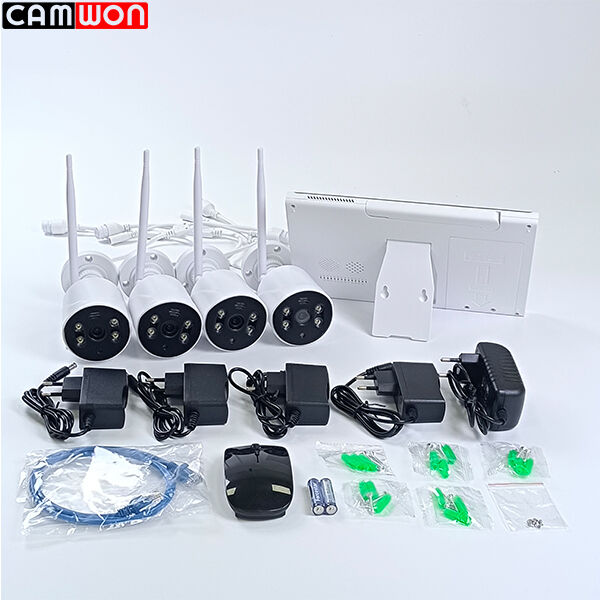

What's include:

• 4 x  Camera

• 1 x 10.1 inch Monitor
• 1 x  Bracket
• 4 x  Screw bag
• 1 x  Mouse
• 5 x  Adapter
• 1 x  Manual



Specifications:

WiFi NVR Specification
System Main processor XM8516D
screen 10.1 inch  1280*800
Operating System Embedded Linux
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface Operator interface 16-bit true color graphic menu operation interface, support mouse operation
Preview 1/4
Video input (IP) 4*3MP
Access bandwidth 24Mbps
Forwarding bandwidth 24Mbps
Video compression H.265+
Display quality Max 3MP
Playback quality 3MP
Decode 4*3MP
VR Unsupport
Motion detection Support(depend on camera)
Audio Audio compression G.711A
Intercom Support
Record & playback Recording mode Manual>Alarm>Dynamic Detection>Timing
Local payback 4*3MP
Search mode Search by Time/Calendar/Event/Channel
Record storage HDD,Network,SD card
Backup mode Network backup, USB hard disk, USB burner,
External
Interface
Video output 1ch HDMI HD output
Audio I/O 0/0
Alarm I/O 0/0
Network interface 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
USB interface 2*USB2.0 ports
HDD 1* SATA+1 SD card
ESATA No
Serial interface No
Other ONVIF No
Power supply 5V/2A  Type-C
Power Consumption <10W(Without HDD)
WiFi Camera Specification
To configure Processor + sensor XM530 Ai+2.0M 1/3"Q03 CMOS sensor
Low illumination Color: 0.1 Lux;  B/W: 0.01 Lux
Effective pixel HD 3MP
Lens HD lens 3.6MM
Infrared lamp 8pcs X 5 Lamp beads
Infrared distance 150~200m
Day&night IR cut filter with auto switch
General setting Saturation, brightness and contrast ;
Adjustable through IE browser or client software.
Video compression H.265+
temperature -10-60
humidity 10%-90% RH
Power supply DC12V 1A
Consumption  MAX 6W
Waterproof grade IP66
Dimension  221*120*92;
Weight 0.5 kg

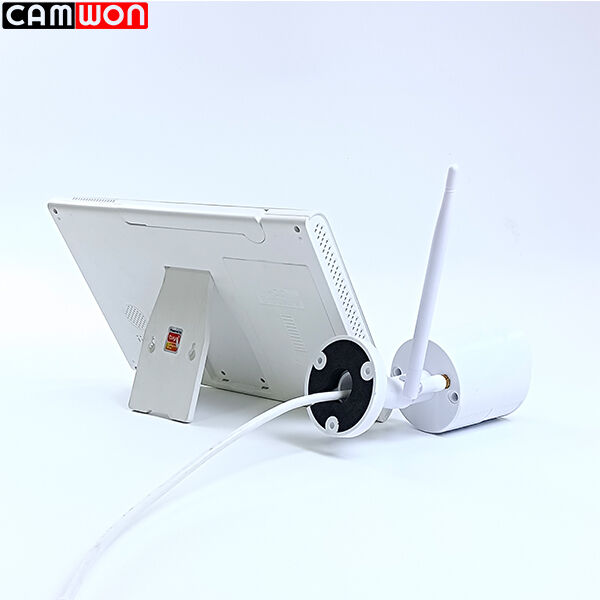

This 10.1 Inch LCD NVR Kit features a built-in HD display for direct local monitoring, combining an all-in-one design with true plug-and-play functionality. No complicated wiring or professional setup is required — just connect the cameras and power on, and the system automatically pairs and starts working. With a user-friendly interface and simple operation, it is extremely easy to install, manage, and view recordings. Ideal for home and business surveillance, this system delivers stable performance and hassle-free security protection.

3MP Tuya Security System 4 CH Wireless Security Camera System 0



This 10.1 Inch LCD NVR Kit comes with a built-in HD monitor and supports two-way audio, allowing real-time talk and listen between the NVR and cameras. With plug-and-play design, it is easy to install and operate. You can communicate with visitors, warn intruders, or interact with family anytime via the security system. Perfect for home, shop, office and outdoor surveillance, providing clear video and convenient two-way communication for safer and smarter protection.

3MP Tuya Security System 4 CH Wireless Security Camera System 1
