Detail Information

Name:	Home NVR Camera System	Screen:	10.1 Inch Touch Screen
Camera:	4pcs 3MP Bullet Camera	Camera Housing:	Metal
Frame Rate:	15fps	Night Vision:	Infrared Night Vision
TF Card:	Max 256GB	Power:	DC 12V
Highlight:	12V Home NVR Camera System , Touch Screen WiFi Security Camera System , WiFi Security Camera System 12V

Product Description

10.1 inch Touch Screen NVR Kit WIFI Security Camera Security System Tuya WIFI NVR System

Product Introduction:

This complete WiFi security system features a built-in 10.1-inch HD touch screen NVR, combining a wireless camera kit with smart Tuya connectivity for effortless home and business monitoring. No complicated setup or extra monitor is needed—everything is controlled directly on the large, responsive touch display for live viewing, playback, and system settings. The wireless cameras connect smoothly via WiFi, delivering clear video day and night with reliable night vision and motion detection. Through the Tuya Smart app, you can watch real-time footage remotely, receive instant alert notifications, and manage your entire security system from anywhere. Designed for easy installation and stable performance, this all-in-one NVR kit provides convenient, smart, and continuous protection for homes, stores, offices, and other spaces.

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

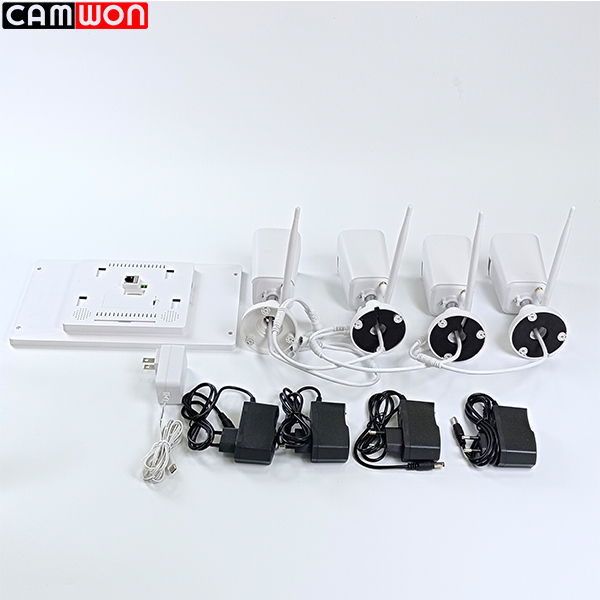

What's include:

• 4 x Camera

• 1 x 10.1 inch Monitor
• 1 x Bracket
• 4 x Screw bag
• 1 x Mouse
• 5 x Adapter
• 1 x Manual

Specifications:

APP:		Tuya
Specification of Wireless IP Camera:
System structure	Embedded LINUX design, single-core 32-bit DSP (GK7201V200), pure hardware compression, watchdog, 8MB FLASH, 64MB, Built-in DDR;
Sensor	3MP CMOS (lens optical size: 1/2.7”), color 1.0Lux@F1.2, black and white 0.1 Lux@F1.2; integrated IR-CUT driver, supports linkage control of Sensor+IR-CUT+soft photosensitivity+LED fill light, supports day and night conversion;
Video processing	H.265+/H.265/H.264 video encoding, supports dual streams, supports P and N systems
Frame rate	3 million 15 frames, supports frame rate adaptation
Image output	Main stream: 2304×1296; Sub stream: 640×360
Audio interface	1 input, supports microphone or pickup input; 1 1-way output, built-in amplifier (recommended speaker 8Ω/2W);
Audio processing	G.711 codec standard, supports two-way voice intercom function, supports audio and video synchronization; 8khz sampling rate
Network interface	1 RJ45 Ethernet interface, 10/100M adaptive, 8KV anti-static ability;
WiFi	1 DC3.3V WiFi module, supports 2.4G frequency;
Signal interface	1 IRCUT interface, supports IR-CUT and image linkage control;
Lightning protection	Power supply and network are fully lightning-proof, front-end power input is lightning-proof, anti-static, and anti-reverse connection
ONVIF protocol	Not Support
OTA	Support
Business function	Supports OSD, supports real-time video transmission, supports motion detection, supports human detection
Power supply	DC12V power input interface, 1.2W-3.3W power consumption;
Working environment	-20℃～+55℃

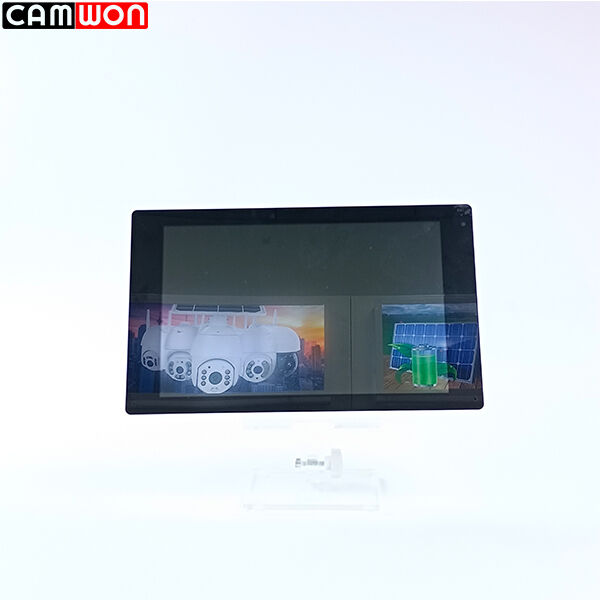

Specification of NVR Monitor:
Model	Wireless Video Monitor
Image Signal Processor	SOC
Operating System	LINUX
LCD	10.1-inch TFT LCD
Resolution	1280*800
Operation method	Capacitance touch screen
Operation interface	Flat style UI interface, easy to operate
Outdoor camera	Max support 8*Outdoor camera
Video Compression	H265/H264
Record	Support scheduled recording and event recording
Storage	TF card and SSD
Hard Disk	1 x SSD, Max 1TB
TF Card	1 x TF Card , Max 256GB
USB Interface	1 × USB 2.0
Audio Input	Built-in microphone
Audio Output	Built-in speaker
Audio Compression Standard	G.711U
Audio Compression Rate	64Kbps
Sound Quality	Supports noise suppression and echo cancellation
APP	Support tuya APP,Support remote intercom and unlock
Network Interface	1 RJ-45 10/100M self-adaptive
Power Supply	DC12V
Power Consumption	＜10W
Working Temperature	`-10℃ ～55℃
Working Humidity	10%～90%
Dimensions	270mm165mm30mm

12V Home NVR Camera System 10.1 Inch Touch Screen WiFi Security Camera System 0

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	KVR-T4204A

Minimum Order Quantity:	One Carton

12V Home NVR Camera System 10.1 Inch Touch Screen WiFi Security Camera System
