LCD Touch Screen Home Security Systems 3MP 4CH NVR Surveillance Camera System

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: KVR-T4204A
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: Touch Screen Home Security Systems Screen: 10.1 Inch Touch Screen
Lens: 3.6mm Channel: 4CH
Resolution: 3MP Human Detection: Support
Storage: TF Card And SSD App: Tuya
Highlight:

LCD Touch Screen Home Security Systems

,

Touch Screen Home Security Systems 3MP

,

4CH NVR Surveillance Camera System


Product Description

3MP 4CH WiFi Touchscreen LCD NVR Surveillance System Tuya Wireless CCTV Camera System



Product Introduction:

Equipped with 3MP (2304×1296) high-definition cameras, this system captures every detail with stunning clarity—far exceeding the resolution of 1080P cameras. Whether it’s identifying faces, license plates, or small objects, the crisp video quality ensures you never miss critical details, even in low-light environments. The 4-channel NVR supports up to 4 wireless cameras simultaneously, allowing you to cover multiple angles of your property (such as entrances, backyards, offices, or storage areas) with a single system, creating a full-coverage security network.



The integrated LCD touchscreen NVR eliminates the need for additional monitors or complex setup. With a responsive touch interface, you can directly view live feeds, playback recorded footage, adjust settings, and manage alerts with just a few taps—no technical expertise required. This plug-and-play design allows you to set up the system in minutes: simply connect the NVR to power, pair the wireless cameras, and start monitoring immediately, making it perfect for users of all skill levels.



This surveillance system is packed with intelligent features to enhance your security. The built-in motion detection technology sends real-time push notifications to your phone whenever abnormal activity is detected, allowing you to respond promptly to potential threats. For added convenience, it supports multiple recording modes: 24/7 continuous recording, motion-triggered recording, and scheduled recording, helping you save storage space while ensuring critical footage is never missed.



Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

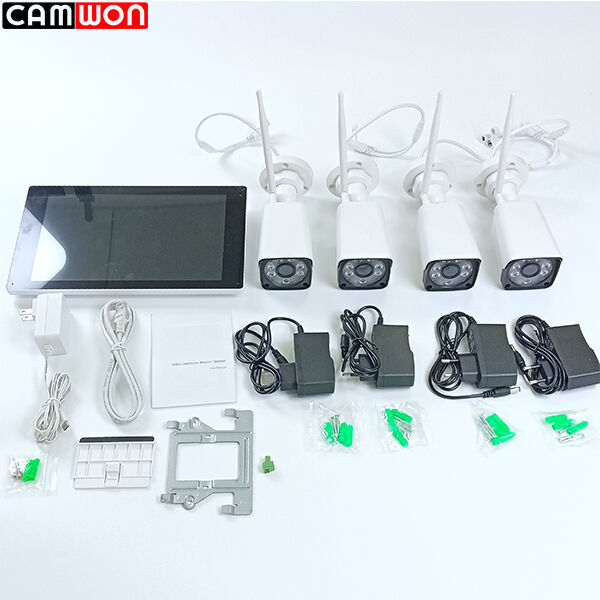

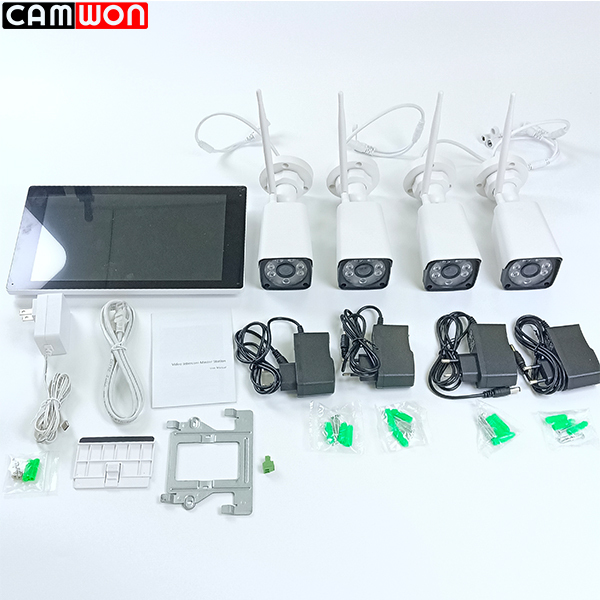

What's include:

• 4 x  Camera

• 1 x 10.1 inch Monitor
• 1 x  Bracket
• 4 x  Screw bag
• 1 x  Mouse
• 5 x  Adapter
• 1 x  Manual



Specifications:

APP: Tuya
Specification of Wireless IP Camera:
System structure Embedded LINUX design, single-core 32-bit DSP (GK7201V200), pure hardware compression, watchdog, 8MB FLASH, 64MB, Built-in DDR;
Sensor 3MP CMOS (lens optical size: 1/2.7”), color 1.0Lux@F1.2, black and white 0.1 Lux@F1.2; integrated IR-CUT driver, supports linkage control of Sensor+IR-CUT+soft photosensitivity+LED fill light, supports day and night conversion;
Video processing H.265+/H.265/H.264 video encoding, supports dual streams, supports P and N systems
Frame rate 3 million 15 frames, supports frame rate adaptation
Image output Main stream: 2304×1296; Sub stream: 640×360
Audio interface 1 input, supports microphone or pickup input; 1 1-way output, built-in amplifier (recommended speaker 8Ω/2W);
Audio processing G.711 codec standard, supports two-way voice intercom function, supports audio and video synchronization; 8khz sampling rate
Network interface 1 RJ45 Ethernet interface, 10/100M adaptive, 8KV anti-static ability;
WiFi 1 DC3.3V WiFi module, supports 2.4G frequency;
Signal interface 1 IRCUT interface, supports IR-CUT and image linkage control;
Lightning protection Power supply and network are fully lightning-proof, front-end power input is lightning-proof, anti-static, and anti-reverse connection
ONVIF protocol Not Support
OTA Support
Business function Supports OSD, supports real-time video transmission, supports motion detection, supports human detection
Power supply DC12V power input interface, 1.2W-3.3W power consumption;
Working environment  -20℃~+55
Specification of NVR Monitor:
Model Wireless Video Monitor
Image Signal Processor SOC
Operating System LINUX
LCD 10.1-inch TFT LCD
Resolution 1280*800
Operation method Capacitance touch screen
Operation interface Flat style UI interface, easy to operate
Outdoor camera Max support 8*Outdoor camera
Video Compression H265/H264
Record Support scheduled recording and event recording
Storage TF card and SSD
Hard Disk 1 x SSD, Max 1TB
TF Card 1 x TF Card , Max 256GB
USB Interface 1 × USB 2.0
Audio Input Built-in microphone
Audio Output Built-in speaker
Audio Compression Standard G.711U
Audio Compression Rate 64Kbps
Sound Quality Supports noise suppression and echo cancellation
APP Support tuya APP,Support remote intercom and unlock
Network Interface 1 RJ-45 10/100M self-adaptive
Power Supply DC12V
Power Consumption 10W
Working Temperature `-10 55
Working Humidity 10%90%
Dimensions 270mm*165mm*30mm
