Detail Information

Name:	Home Security System	Screen:	10.1 Inch Touch Screen
Camera:	4pcs 3MP Bullet Camera	Camera Housing:	Metal
Channel:	4CH	Night Vision:	Infrared Night Vision
Storage:	TF Card And SSD	App:	Tuya
Highlight:	10.1 Inch Home Security System , Bullet CCTV Camera Security System , 10.1 Inch CCTV Camera Security System

Product Description

Newest Touch Screen 10.1 inch 4CH 3MP CCTV Camera System Bullet Camera Security System

Product Introduction:

This all-in-one security system integrates a 10.1-inch HD touchscreen monitor with a 4-channel NVR and four 3MP high-definition bullet cameras, delivering one-stop 24/7 surveillance for homes, shops, warehouses and small businesses.

Featuring crisp 3MP resolution and infrared night vision, the weatherproof bullet cameras capture clear footage day and night, while the intuitive touchscreen lets you view live feeds, playback recordings, adjust settings and manage channels with simple taps. The system supports multi-screen split viewing, smart motion detection, automatic recording and local storage, ensuring reliable monitoring with easy operation.

With plug-and-play setup, stable signal transmission and durable outdoor-ready camera housing, it combines professional surveillance performance with user-friendly control, providing strong protection and clear evidence for your property around the clock.

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

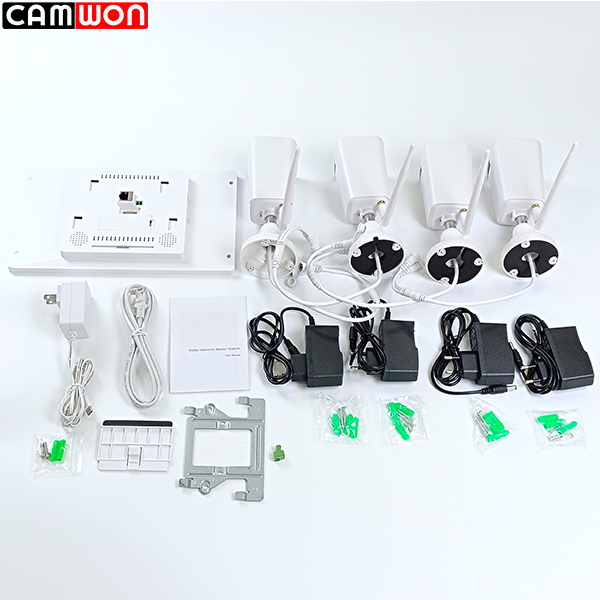

What's include:

• 4 x Camera

• 1 x 10.1 inch Monitor
• 1 x Bracket
• 4 x Screw bag
• 1 x Mouse
• 5 x Adapter
• 1 x Manual

Specifications:

APP:		Tuya
Specification of Wireless IP Camera:
System structure	Embedded LINUX design, single-core 32-bit DSP (GK7201V200), pure hardware compression, watchdog, 8MB FLASH, 64MB, Built-in DDR;
Sensor	3MP CMOS (lens optical size: 1/2.7”), color 1.0Lux@F1.2, black and white 0.1 Lux@F1.2; integrated IR-CUT driver, supports linkage control of Sensor+IR-CUT+soft photosensitivity+LED fill light, supports day and night conversion;
Video processing	H.265+/H.265/H.264 video encoding, supports dual streams, supports P and N systems
Frame rate	3 million 15 frames, supports frame rate adaptation
Image output	Main stream: 2304×1296; Sub stream: 640×360
Audio interface	1 input, supports microphone or pickup input; 1 1-way output, built-in amplifier (recommended speaker 8Ω/2W);
Audio processing	G.711 codec standard, supports two-way voice intercom function, supports audio and video synchronization; 8khz sampling rate
Network interface	1 RJ45 Ethernet interface, 10/100M adaptive, 8KV anti-static ability;
WiFi	1 DC3.3V WiFi module, supports 2.4G frequency;
Signal interface	1 IRCUT interface, supports IR-CUT and image linkage control;
Lightning protection	Power supply and network are fully lightning-proof, front-end power input is lightning-proof, anti-static, and anti-reverse connection
ONVIF protocol	Not Support
OTA	Support
Business function	Supports OSD, supports real-time video transmission, supports motion detection, supports human detection
Power supply	DC12V power input interface, 1.2W-3.3W power consumption;
Working environment	-20℃～+55℃
Specification of NVR Monitor:
Model	Wireless Video Monitor
Image Signal Processor	SOC
Operating System	LINUX

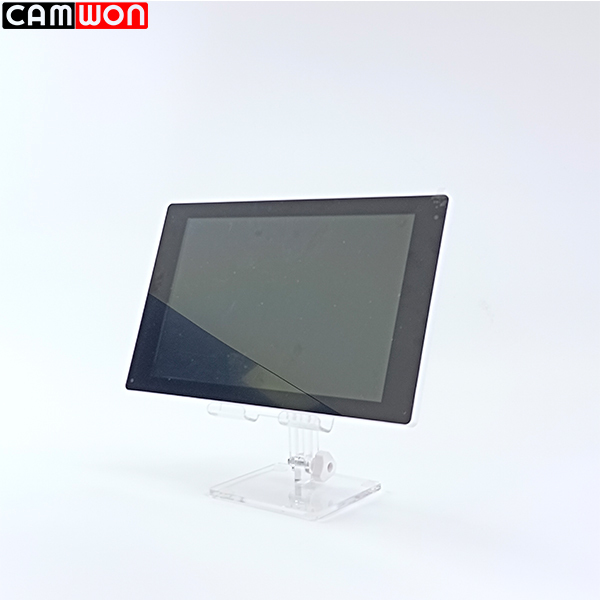

LCD	10.1-inch TFT LCD
Resolution	1280*800
Operation method	Capacitance touch screen
Operation interface	Flat style UI interface, easy to operate
Outdoor camera	Max support 8*Outdoor camera
Video Compression	H265/H264
Record	Support scheduled recording and event recording
Storage	TF card and SSD
Hard Disk	1 x SSD, Max 1TB
TF Card	1 x TF Card , Max 256GB
USB Interface	1 × USB 2.0
Audio Input	Built-in microphone
Audio Output	Built-in speaker
Audio Compression Standard	G.711U
Audio Compression Rate	64Kbps
Sound Quality	Supports noise suppression and echo cancellation
APP	Support tuya APP,Support remote intercom and unlock
Network Interface	1 RJ-45 10/100M self-adaptive
Power Supply	DC12V
Power Consumption	＜10W
Working Temperature	`-10℃ ～55℃
Working Humidity	10%～90%
Dimensions	270mm165mm30mm
