Outdoor 10.1Inch LCD NVR Kits with 4CH 8CH 3MP Security Camera System CCTV Camera System
Product Introduction:
This all-in-one CCTV security system integrates a 10.1-inch HD LCD monitor with a professional NVR, available in 4-channel and 8-channel versions, paired with high-performance 3MP outdoor security cameras to deliver reliable, clear, and easy-to-manage surveillance for homes, shops, warehouses, and public areas.
With a built-in 10.1-inch LCD display, you can view live feeds directly without an extra monitor. It supports multi-channel synchronous display, flexible video storage (supports external hard drive), and instant motion alert notifications. Stable, durable, and user-friendly, this NVR kit is a cost-effective all-round security solution for residential and commercial surveillance needs.
Features:
NVR Specification:
1. 8CH 10.1 Inch LCD Monitor NVR
2. Video Input: 4CH
3. Support 2.5 inch Mini Hard Drive
4. Automatic Connection with IP Cameras
5. Support wireless distance over 100m
IP Camera Specification:
1.Resolution : HD 2MP/3MP
2.Lens: 3.6mm
3.IR LEDs Amount: 6PCS IR LEDs
4.Night Vision: 65ft(25m)
5.Weatherproof: IP66
6. Two-way Audio
7. Support Humandroid Motion Detection
Remark: 4 sets/CTN
Product Supports:
● OEM / ODM Support
● PID Customization
● Giftbox Customized
● Free Logo Printing

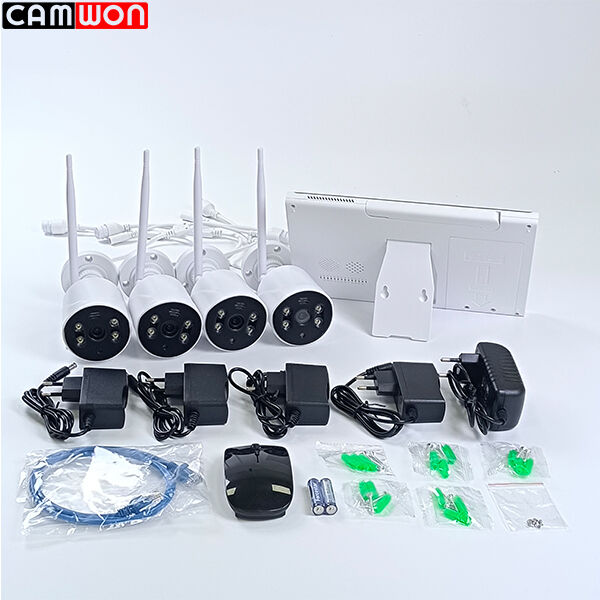

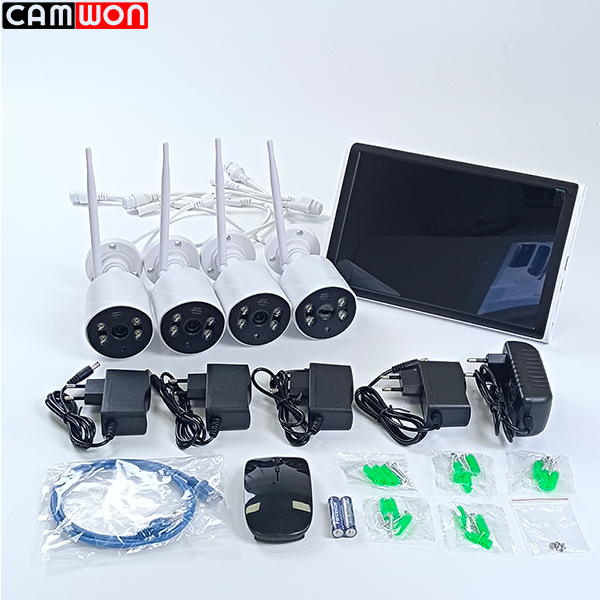

What's include:
• 4 x Camera
• 1 x 10.1 inch Monitor
• 1 x Bracket
• 4 x Screw bag
• 1 x Mouse
• 5 x Adapter
• 1 x Manual
Specifications:
| WiFi NVR Specification |
| System |
Main processor |
XM8516D |
| screen |
10.1 inch 1280*800 |
| Operating System |
Embedded Linux |
| System resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
| Interface |
Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
| Preview |
1/4 |
| Video input (IP) |
4*3MP |
| Access bandwidth |
24Mbps |
| Forwarding bandwidth |
24Mbps |
| Video compression |
H.265+ |
| Display quality |
Max 3MP |
| Playback quality |
3MP |
| Decode |
4*3MP |
| VR |
Unsupport |
| Motion detection |
Support(depend on camera) |
| Audio |
Audio compression |
G.711A |
| Intercom |
Support |
| Record & playback |
Recording mode |
Manual>Alarm>Dynamic Detection>Timing |
| Local payback |
4*3MP |
| Search mode |
Search by Time/Calendar/Event/Channel |
| Record storage |
HDD,Network,SD card |
| Backup mode |
Network backup, USB hard disk, USB burner, |
External
Interface |
Video output |
1ch HDMI HD output |
| Audio I/O |
0/0 |
| Alarm I/O |
0/0 |
| Network interface |
1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI |
| USB interface |
2*USB2.0 ports |
| HDD |
1* SATA+1 SD card |
| ESATA |
No |
| Serial interface |
No |
| Other |
ONVIF |
No |
| Power supply |
5V/2A Type-C |
| Power Consumption |
<10W(Without HDD) |
| WiFi Camera Specification |
| To configure |
Processor + sensor |
XM530 Ai+2.0M 1/3"Q03 CMOS sensor |
| Low illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
| Effective pixel |
HD 3MP |
| Lens |
HD lens 3.6MM |
| Infrared lamp |
8pcs X ￠5 Lamp beads |
| Infrared distance |
150~200m |
| Day&night |
IR cut filter with auto switch |
| General |
setting |
Saturation, brightness and contrast ;
Adjustable through IE browser or client software. |
| Video compression |
H.265+ |
| temperature |
-10℃-＋60℃ |
| humidity |
10%-90% RH |
| Power supply |
DC12V 1A |
| Consumption |
MAX 6W |
| Waterproof grade |
IP66 |
| Dimension |
221*120*92; |
| Weight |
0.5 kg |
This 10.1 Inch LCD NVR Kit features a built-in HD display for direct local monitoring, combining an all-in-one design with true plug-and-play functionality. No complicated wiring or professional setup is required — just connect the cameras and power on, and the system automatically pairs and starts working. With a user-friendly interface and simple operation, it is extremely easy to install, manage, and view recordings. Ideal for home and business surveillance, this system delivers stable performance and hassle-free security protection.
This 10.1 Inch LCD NVR Kit comes with a built-in HD monitor and supports two-way audio, allowing real-time talk and listen between the NVR and cameras. With plug-and-play design, it is easy to install and operate. You can communicate with visitors, warn intruders, or interact with family anytime via the security system. Perfect for home, shop, office and outdoor surveillance, providing clear video and convenient two-way communication for safer and smarter protection.
