Detail Information

Name:	Tuya 4MP WiFi Solar Camera	Resolution:	2560*1440
Lens:	4mm	WiFi:	2.4Ghz WiFi
IR Range:	10 Meters	Solar Panel:	3W
Battery:	4000mAh	Night Vision:	Infrared & Color Night Vision
Highlight:	BLE WiFi Mini Camera , 2K 120 Degree Wide Angle Camera , 120 Degree Wide Angle Camera IP65

Product Description

Tuya IP65 Mini Camera 2K WiFi BLE Connection 120 Degree Wide View Siren Light Alarm

Product Introduction:

This Tuya IP65 mini smart camera delivers reliable 2K high-definition surveillance with stable WiFi & BLE dual connection for flexible setup. It features a 120° wide-angle lens to cover more space with fewer blind spots, while the IP65 weatherproof rating makes it ideal for both indoor and outdoor use.

Equipped with a built-in siren and flashing light alarm, it triggers active deterrence instantly when motion is detected, effectively warning off unwanted visitors. Controlled via the Tuya Smart App, you can access real-time viewing, two-way audio, playback, and alert notifications anytime, anywhere.

Compact in size yet powerful in performance, this camera combines easy installation, stable connectivity, and all-round security protection, making it a perfect choice for home, shop, warehouse and property monitoring.

Features:
● 4MP
● Powered by Rechargeable Battery
● Support Local SD Card & Cloud Storage
● IR Range: 8-15m
● PIR motion detection
● High Quality Dual-Way Audio

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

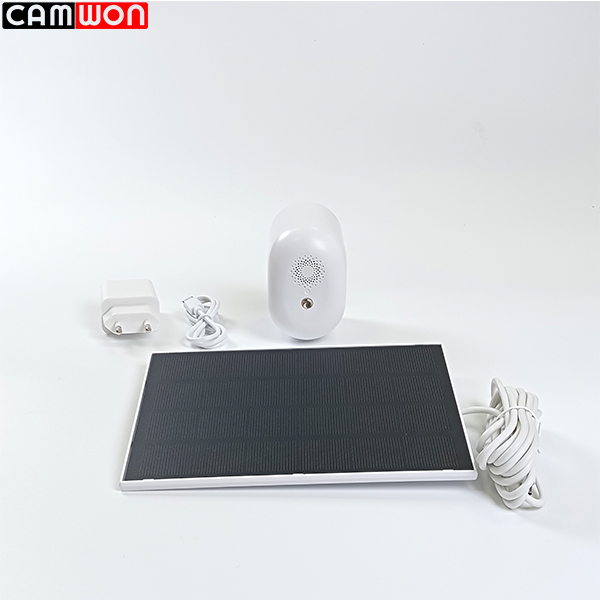

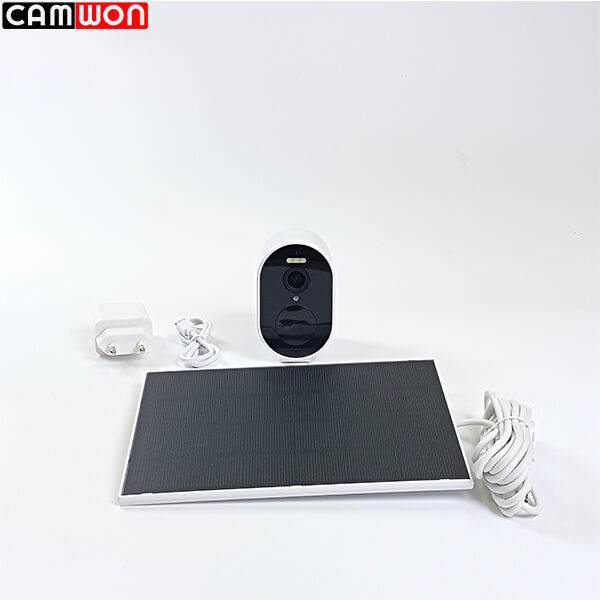

What's include:

• 1 x Camera

• 1 x Bracket
• 1 x Screw bag

• 1 x Cable
• 1 x Manual

Specifications:

Product Dimension		795072.0
Net Weight		180g
Power Cable Length		500MM
Housing Material		ABS
Housing		White
Hosing Flame Retardance		UL94 V0
Ingress Protection(IP)		IP65
Hardware Specification
Image Sensor		1/3" progressive CMOS
Sensor Brand And Model		SMARTSENS, 2331c
Main Chipset Brand And Model		INGENIC, T31ZL
4G Module Brand And Model		FTG800M40BV
Lens Brand And Model		zx0391
lens Focal Length		4mm
Aperture		F2.2
Antenna Gain (dBi)		3dB
Electrical Specification
Power Supply		4000 lithium battery pack
Standby Power Consumption		2.1mW
Working Power Consumption		813mW
Live Stream Video Resolution		HD(25601440) / SD(640360)
Notification Image Resolution		SD(640*360)
Real Pixels or Interpolation		4MP
Angle of View(H/V/D)		77.8°(Horizontal) * 42°(Vertical) * 91°(Diagonal)
Microphone Sensitive		-38dB
Noise Reduction		3D NR
Audio Input		Built in Mic
Audio Output		Built in 8Ω1W Speaker
Audio Compression		G711U
Video Compression		H.264 / H.265
Frame Rate		Main streaming 1024Kbps / Sub streaming 256Kbps
Lighting Specification
IR CUT		Support
IR On/Off Control		Auto / Manual
IR Distance		10m (49ft)
Night Vision Mode		Infrared mode & Color mode
Number of Infrared Light		4pcs
Number of White Light		3pcs
Indicator Color Status		solid red - not connected to base station, no SIM card inserted, or no data traffic
		flashing blue - connected to 4G network but not configured
		solid blue - connected to server
		both red and blue light up (purple) - Firmware upgrade in progress
		all off - powered off or in sleep mode
Network and Condition
Wireless Standard		IEEE 802.11 b/g/n
Wireless Frequency		2400-2500MHz 5150-5800MHZ
Wireless Encryption Protocol		WPA-PSK/WPA2-PSK, WPA/WPA2, WEP
Working Temperature		-10℃ ~ 45℃
Working Humidity		20%-85%RH (no condensation)
Basic Specification
Pairing Method		QR code+Bluetooth 2.4G WIFI
Two-way Talk		Support
Sound Detection		N/A
Motion Detection		Support
Area Monitoring Detection		Support
Humanoid Body Filtering		Support
Trigger Siren		Support
Privacy Mode		N/A
Privacy Zones		N/A
Tamper Alarm		N/A
Cloud Storage		Support
PIR Set		Support
WebRTC		N/A
Condition to trigger local storage		Motion detection & Preview
Condition to trigger cloud storage		N/A
WDR		Support
Anti Flicker		Support
Local Storage SD Slot		Micro SD Slot (up to 128GB)
Hot Swappable SD Card		Support
Local SIM Card Slot		N/A
Battery
Battery Type		2 * 18650Rechargeable Lithium Battery (Low temperature resistant)
Battery Capacity		4000 mAh
Battery Charging Time (Input DC 5V1A)		10 hours
Battery Life		2 months (triggered 10 times per day)
Solar Panel
Dimension		173*120
Net Weight		143g
The Length of Cable of Solar Panel		2M
Housing Material		ABS
Craftsmanship		PET
Solar Panel Output Power		Max3W
Does Solar Panel Include Battery		N/A
Energy Conversion Rate		21%
Working Temperature		－20℃ ~ 55℃
Working Humidity		≤60%

2K High Resolution

BLE WiFi Mini Camera 2K 120 Degree Wide Angle Camera IP65 With Siren Light Alarm 0

Infrared & Color Night Vision

BLE WiFi Mini Camera 2K 120 Degree Wide Angle Camera IP65 With Siren Light Alarm 1
