Detail Information

Name:	Video Door Phone Camera	Resolution:	2Mp & 5Mp Optional
WiFi:	2.4GHz	Storage:	128G TF Card & Cloud
Power Supply:	Battery Powered	Meterial:	ABS
Audio:	Built In MIC & Speaker	Color:	Grey
Warranty:	18 Months
Highlight:	Waterproof Intercom Doorbell Camera , WiFi Video Door Phone Camera , Video Door Phone Camera HD

Product Description

Tuya HD1080P Smart Wi-Fi Video Doorphone Waterproof Night Vision Intercom Doorbell Camera

Features:

● Viewing angle: 170°
● Maximum image size: 1920 X 1080
● 1/3-inch 2-megapixel CMOS image sensor
● IR Night Vision: 4* 5mm 850nm LED
● Power consumption: standby current 15uA, working current 200mA
● Two-way audio
● Support SD card (Max. 128G), cloud storage
● Communication protocol: TCP/IP, HTTP, DHCP, DNS
● Wifi: Support 2.4G WIFI IEEE802.11b/g
● APP:Tuya Smart
● Power supply: built-in 2600mAh (two) battery and external MICRO USB 5V 2A and AC/DC 12-24V/1A
● Waterproof IP55
● Support PIR Motion Detection
● Support Google, Alexa

Package Included:

● Doorbell Camera *1

● Doorbell Chime (Optional) *1

● 2600mAh Battery (Optional) *2

● User Manual *1

● Installation Accessories

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

Specification

Model No.		WIP-TR200SB
APP		Tuya
Image Sensor	Sensor	1/3" color CMOS Sensor, RTL8715+F37
	Viewing Angle	130°
	Minimum Illumination	0.01 Lux
Audio	Input/Output	Two-way voice intercom available (built-in Microphone and speaker)
Video	Video Compressing Method	H.265 (support H.264, H.265)
	Image Frame Rate	1/25~1/100,000 per second
	Maximum Image Resolution	1920*1080P
	Light Source for Night Vision	IRCUT double optical filter automatic switching, and 4pcs 850nm LED Light IR Distance: 7M
Network	Wireless Network	2.4G Wi-Fi (IEEE802.11b/g/n)
	Protocol Supported	TCP/IP, HTTP, DHCP, DNS
Alarm Notification	Alarm Methods	Alarm push by mobile APP
Wake-up	Wake-up Method	PIR motion detection wake-up, ringing doorbell wake-up, remote APP live wake-up
Video Recording	Recording Method	Alarm triggered recording and manual recording
	Video Storage	Cloud & local Micro SD card storage (max. 128G)
Battery	Capacity	2*18650 battery, 5200mAh
	Removability	Removable
	Battery Life	Around 3 months (If trigger 20 times everyday)
	Standby Time	1 year
	Charging Voltage	DC5V/2A (USB-Type C Port)
	Charge Time	< 8 hours
Power Consumption	Working Current	200mA
	Standby Current	1.5mA
Interfaces	Power Supply	1 USB-Type C Port
	SD Card	1 Micro SD card (up to 128GB supported)
	Button	1 Reset button, 1 Doorbell Button
Power Supply	Power Supply	AC12-24V/DC12-24V (optional)
Installation Method	Installation Method	Screw installation & Double-sided tape installation
Environment	Dustproof and waterproof	IP65
	Operating Environment	-20° ~ 50°C / less than 90% (no condensation)
Specification	Size (LxWxH)	6138135mm
	Material + Process	PC+ABS
	Color	White/Grey/Black
Door Chime Spec.	Working Frequency	433Mhz
	Receiveing Range	150M (open space)
	Ringtones	58 for choosen
	Volume	4 grade volume adjusting, 25dB ~ 85dB
	Power Supply	DC5V, 1A (by micro usb port)
	LED Night	* Flash blue light when doorbell ringing * White light work as a PIR night light in the night
	Material + Process	ABS

More Information:

【Tuya Smart Home Video Doorbell 2-Way Intercom System APP Remotely Control WiFi CCTV IP Camera for Home Apartment】

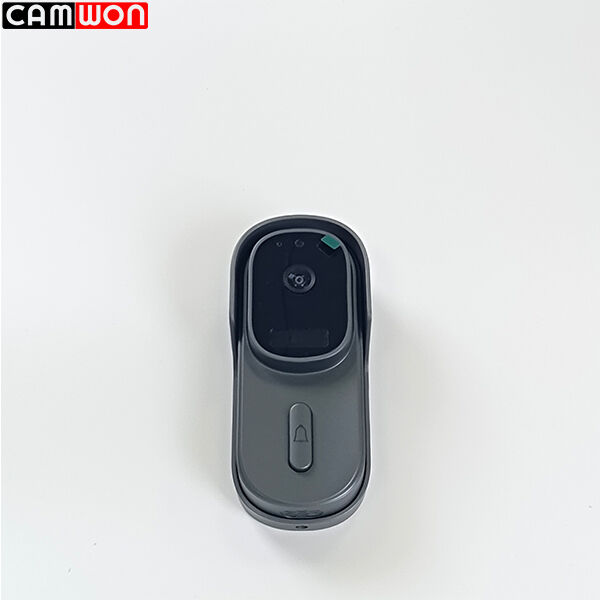

Waterproof Intercom Doorbell Camera WiFi Video Door Phone Camera HD 1080P 0

【This doorbell camera is built for outdoors. It has an IP65 weatherproof rating and comes with a built-in rain cover for extra protection.】

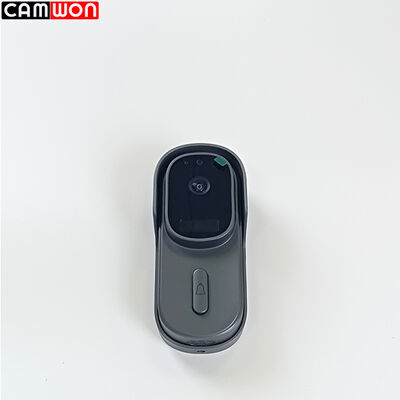

Waterproof Intercom Doorbell Camera WiFi Video Door Phone Camera HD 1080P 1

【Powered by 5200mAh battery, the wireless doorbell works for 40 days with 20 triggers a day under testing. (May change due to environment and frequency).】

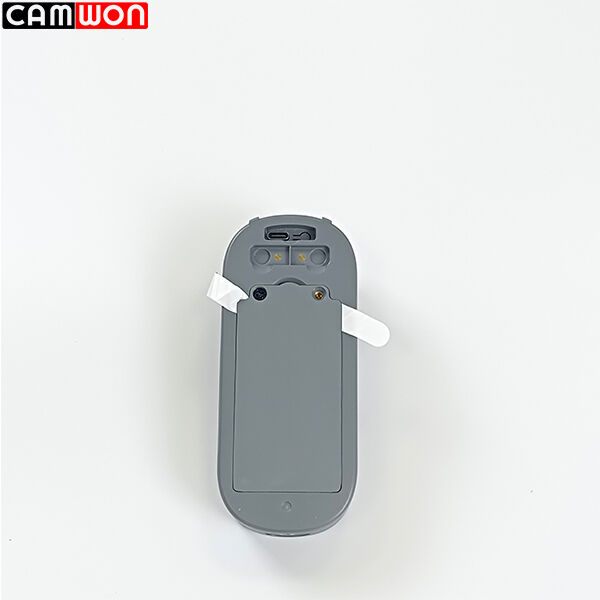

Waterproof Intercom Doorbell Camera WiFi Video Door Phone Camera HD 1080P 2

Tag:

Place of Origin:	China
Brand Name:	CAMWON
Certification:	CE, ROHS, BSCI, UKCA, EN-18031, TELEC, REACH
Model Number:	WIP-TR200SB

Minimum Order Quantity:	One Carton

Waterproof Intercom Doorbell Camera WiFi Video Door Phone Camera HD 1080P
