Detail Information

Name:	WiFi Home Security Alarm System	Audio:	Two-way Audio
Resolution:	2MP/4MP	Accessories Frequency:	433mHz
Supported Zones:	Up To 100 Wireless Zones And 3 Wired Zones	Rotation Angle:	Horizontal: 0°- 355°, Vertical: 0°- 90°
Voice Control:	Support Alexa & Google Assistant	App:	Tuya
Highlight:	smart home wifi camera , smart solar wifi camera

Product Description

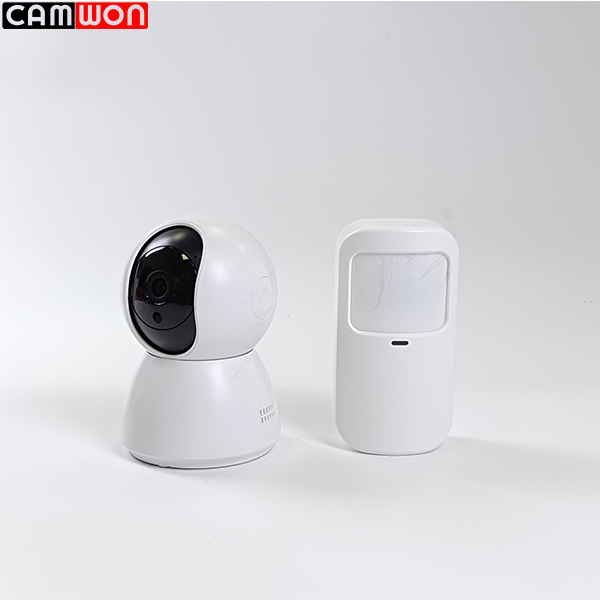

Smart IOT IP Camera PIR Motion Door Detector Alarm Kit 2 in 1 Home Security System

What is an IoT Camera?

An IoT camera brings convenience and safety to modern living. With features like pan-tilt control, two-way audio, and device sharing, it lets you monitor your space and interact with your home from anywhere in the world.

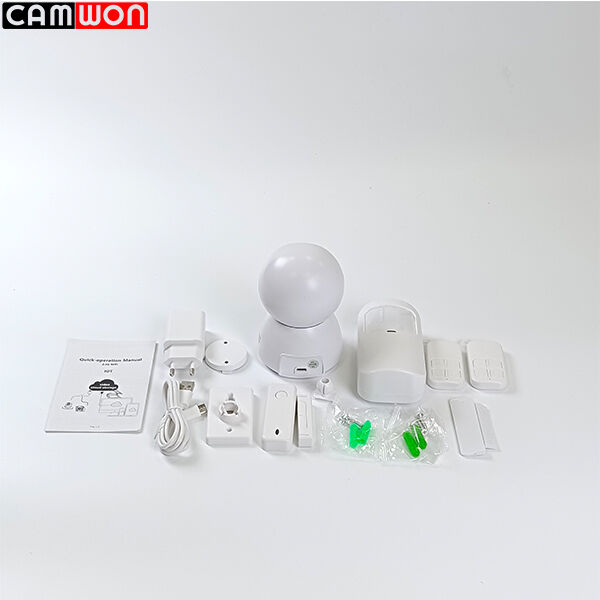

What's include:

WiFi IOT Camera Alarm Kit

1* Camera(Smart Hub)
1* PIR sensor
1* Door sensor
2* Remote control
Accessory: sticker, user manual, power adaptor

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

Specification Sheet:

Model No.	WIP-AK012	WIPAK013
APP	Tuya
Image Sensor	1/4.5" 2MP CMOS	1/2.8" 4MP CMOS
Effective Pixels	1920(H) x 1080(V)	2560(H) x 1440(V)
Video Pixels	1080p	1440p
Shutter Speed	1/15~1/10,000s
Minimum Illumination	Color 1Lux@F2.0, Monochrome 0.01Lux@F2.0
Day/Night Mode	Auto-switching between color and monochrome
Wide Dynamic Range	Digital wide dynamic range
Lens Specifications	3.6mm@F2.0, 87°/ 43°/104°
Light Board	6 infrared LEDs
Gimbal Angle	Horizontal: 0° to 355°, Vertical: 0° to 90°
Main Control Unit	FH8626V200
Bluetooth Module	BL-M6355CU1/AIC8800D40L
WiFi Chip	SV6355/AIC8800D40L
Physical Privacy Masking	Optional support
Firmware Version	V1.0.0
Audio/Video
Compression Format	H.264
Bitrate	32Kbps~2Mbps
Frame Rate	15fps
Dual Stream	Supported
Audio Input/Output	Built-in speaker and microphone
Audio	Two-way intercom
Video recording
Storage	TF card (maximum 256GB), cloud storage
Playback speed	X1
Rewind speed	X1
Video format	H264 encryption
Offline recording	Supported
Network
Wireless Security	Supports WEP, WPA, and WPA2 encryption methods.
Communication Protocol	HTTP, DHCP, DNS, TCP/IP.
Network Standard	LTE-TDD B34/B38/B39/B40/B41, LTE-FDD B1/B3/B8, LTE-FDD B5/B3.
Alarm Trigger	Motion detection, human detection, and sound detection.
Mobile Phone System	iOS 9 and above, Android 5 and above.
Security Encryption	AES128.
Maximum Number of Connections	5 or more.
Antenna	One built-in antenna.
Bluetooth Network Pairing	Yes (Bluetooth pairing function is supported when WiFi is available)
Standard
Operating temperature	-10 °C to 55 °C
Waterproof rating	NA
Shock resistance rating	IK08
Power supply method	DC 5V/1A
Power consumption	Max 5W
Power interface	Type C, 5V
Functions	Correlated color temperature, human detection, sound detection, effective area setting, number of 1 pc effective areas, rectangle effective area, motion tracking, 6pcs PTZ favorite points, alarm sound on/off, alarm sound type setting, alarm sound volume adjustment, Amazon Alexa(Optional), Google Home(Optional), Web RTC, ONVIF, preset point linkage.
IoT
Sub-device Quantity	32
History Sub-device	Supports a total of 30 days, with 16 messages per day in a loop.
Sub-device type	Covers infrared, door sensor, remote control, smoke detector, water immersion detector, CO detector, gas detector, etc.
Type Arming/Disarming	Remote control supported, APP supported.
Sub-device Management	APP supported.
IoT Parameter Settings	APP supported.

More Information:

You can manage the system remotely via the app, set timer schedules, and share device access with family members. The included remotes also allow quick arming or disarming, making it easy to use for everyone.

2 in 1 Smart WiFi Home Security Alarm System with PIR Motion Door Sensor Smoke Detector 0

The kit works with motion sensors, door sensors, and remote controls. It provides all-round protection, supporting emergency SOS alerts and reliable intrusion detection for your home.

2 in 1 Smart WiFi Home Security Alarm System with PIR Motion Door Sensor Smoke Detector 1

With WiFi plus Bluetooth integration, your camera stays consistently connected. This stability ensures you never miss important alerts or clear footage, keeping your home protected around the clock.

2 in 1 Smart WiFi Home Security Alarm System with PIR Motion Door Sensor Smoke Detector 2

Even in low-light or no-light environments, the camera maintains clear imaging. It provides 24/7 surveillance, so you never miss important details at night.

2 in 1 Smart WiFi Home Security Alarm System with PIR Motion Door Sensor Smoke Detector 3

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	WIP-AK012

Minimum Order Quantity:	One Carton
