Detail Information

Name:	IOT Security Camera	Audio:	Two-way Audio
Resolution:	2MP/4MP	Accessories Frequency:	433mHz
Voice Control:	Support Alexa & Google Assistant	Rotation Angle:	Horizontal: 0°- 355°, Vertical: 0°- 90°
Supported Zones:	Up To 100 Wireless Zones And 3 Wired Zones	App:	Tuya
Highlight:	2MP IOT Security Camera , 4MP IOT Security Camera , 433mHz Home Security Camera Alarm System

Product Description

IOT Wireless Camera 2 in 1 Home Security Alarm System WiFi With PIR Motion Door Detector

What is an IoT Camera?

An IoT camera is a smart surveillance device that connects to the internet, allowing remote access and control via mobile apps. This 2K kit integrates with Tuya-powered platforms, turning it into a central hub for home security.

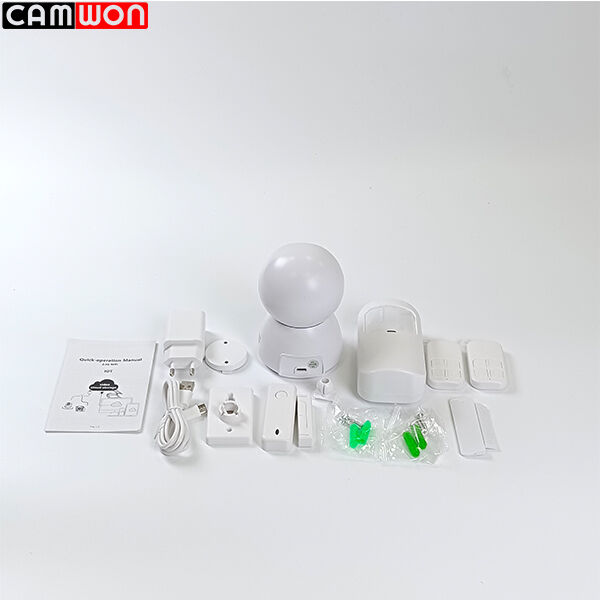

What's include:

WiFi IOT Camera Alarm Kit

1* Camera(Smart Hub)
1* PIR sensor
1* Door sensor
2* Remote control
Accessory: sticker, user manual, power adaptor

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

Specification Sheet:

Model No.	WIP-AK012	WIPAK013
APP	Tuya
Image Sensor	1/4.5" 2MP CMOS	1/2.8" 4MP CMOS
Effective Pixels	1920(H) x 1080(V)	2560(H) x 1440(V)
Video Pixels	1080p	1440p
Shutter Speed	1/15~1/10,000s
Minimum Illumination	Color 1Lux@F2.0, Monochrome 0.01Lux@F2.0
Day/Night Mode	Auto-switching between color and monochrome
Wide Dynamic Range	Digital wide dynamic range
Lens Specifications	3.6mm@F2.0, 87°/ 43°/104°
Light Board	6 infrared LEDs
Gimbal Angle	Horizontal: 0° to 355°, Vertical: 0° to 90°
Main Control Unit	FH8626V200
Bluetooth Module	BL-M6355CU1/AIC8800D40L
WiFi Chip	SV6355/AIC8800D40L
Physical Privacy Masking	Optional support
Firmware Version	V1.0.0
Audio/Video
Compression Format	H.264
Bitrate	32Kbps~2Mbps
Frame Rate	15fps
Dual Stream	Supported
Audio Input/Output	Built-in speaker and microphone
Audio	Two-way intercom
Video recording
Storage	TF card (maximum 256GB), cloud storage
Playback speed	X1
Rewind speed	X1
Video format	H264 encryption
Offline recording	Supported
Network
Wireless Security	Supports WEP, WPA, and WPA2 encryption methods.
Communication Protocol	HTTP, DHCP, DNS, TCP/IP.
Network Standard	LTE-TDD B34/B38/B39/B40/B41, LTE-FDD B1/B3/B8, LTE-FDD B5/B3.
Alarm Trigger	Motion detection, human detection, and sound detection.
Mobile Phone System	iOS 9 and above, Android 5 and above.
Security Encryption	AES128.
Maximum Number of Connections	5 or more.
Antenna	One built-in antenna.
Bluetooth Network Pairing	Yes (Bluetooth pairing function is supported when WiFi is available)
Standard
Operating temperature	-10 °C to 55 °C
Waterproof rating	NA
Shock resistance rating	IK08
Power supply method	DC 5V/1A
Power consumption	Max 5W
Power interface	Type C, 5V
Functions	Correlated color temperature, human detection, sound detection, effective area setting, number of 1 pc effective areas, rectangle effective area, motion tracking, 6pcs PTZ favorite points, alarm sound on/off, alarm sound type setting, alarm sound volume adjustment, Amazon Alexa(Optional), Google Home(Optional), Web RTC, ONVIF, preset point linkage.
IoT
Sub-device Quantity	32
History Sub-device	Supports a total of 30 days, with 16 messages per day in a loop.
Sub-device type	Covers infrared, door sensor, remote control, smoke detector, water immersion detector, CO detector, gas detector, etc.
Type Arming/Disarming	Remote control supported, APP supported.
Sub-device Management	APP supported.
IoT Parameter Settings	APP supported.

More Information:

The kit includes a pan-tilt camera, motion sensor, door sensor, and remote controls. It offers all-round home protection, covering monitoring, intrusion detection, and convenient remote operation.

2MP / 4MP IOT Security Camera 433mHz Home Security Camera Alarm System 2 In 1 0

It connects to sensors via 433MHz and to your phone via WiFi. You can receive instant app alerts for motion detection, door opening, or SOS triggers, keeping you informed of home status at all times.

2MP / 4MP IOT Security Camera 433mHz Home Security Camera Alarm System 2 In 1 1

Equipped with both WiFi and Bluetooth support, it drastically reduces connection failures. You can enjoy uninterrupted live feeds and seamless control without worrying about dropouts.

2MP / 4MP IOT Security Camera 433mHz Home Security Camera Alarm System 2 In 1 2

The infrared night vision ensures clear black-and-white footage at night. It can capture suspicious activity, helping you protect your home effectively after dark.

2MP / 4MP IOT Security Camera 433mHz Home Security Camera Alarm System 2 In 1 3

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	WIP-AK012

Minimum Order Quantity:	One Carton
