Detail Information

Name:	Smart Tuya Camera	Resolution:	2MP/4MP
Accessories Frequency:	433mHz	Supported Zones:	Up To 100 Wireless Zones And 3 Wired Zones
Audio:	Two-way Intercom	Voice Control:	Support Alexa & Google Assistant
Rotation Angle:	Horizontal: 0°- 355°, Vertical: 0°- 90°	App:	Tuya
Highlight:	2K Smart Tuya Camera , Smart Tuya Camera 2MP , 4MP Home Security Alarm Camera

Product Description

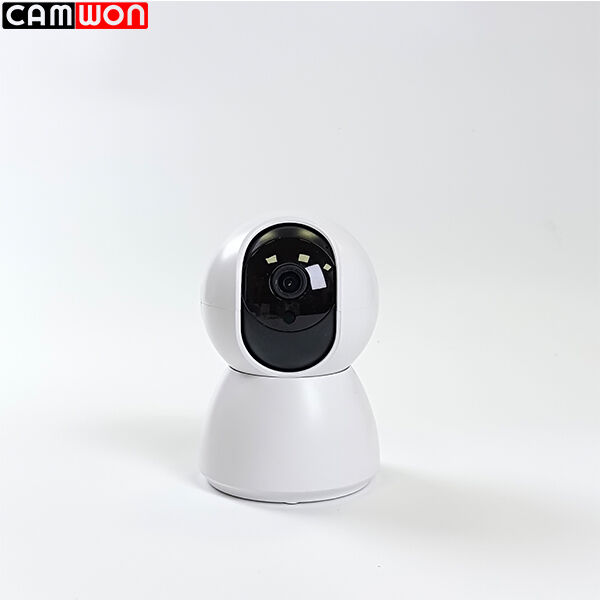

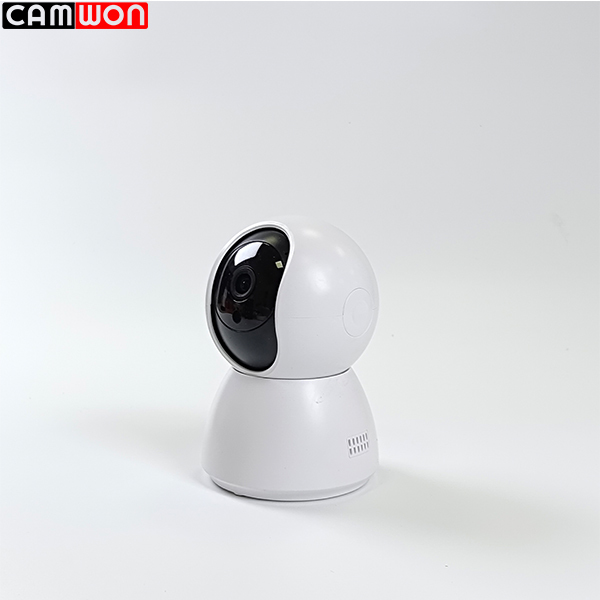

TUYA Alarm System with Camera Support PIR Detector Door Sensor for Home Security

What is an IoT Camera?

An IoT camera, also known as an Internet of Things security camera, is a smart surveillance device that connects to the internet via Wi-Fi. Unlike traditional cameras, it enables seamless remote monitoring and control through smartphone apps (like Tuya Smart or Smart Life) or other smart platforms.

This 2K IoT camera alarm kit is a perfect example of smart home security. It combines high-definition video capture with intelligent features such as motion detection, night vision, and two-way audio. The kit includes various sensors and remote controls, allowing it to trigger alerts and act as a security hub. With support for 2.4G Wi-Fi, you can check live feeds, review recordings, and manage settings anytime, anywhere, making it a versatile and essential part of modern home protection.

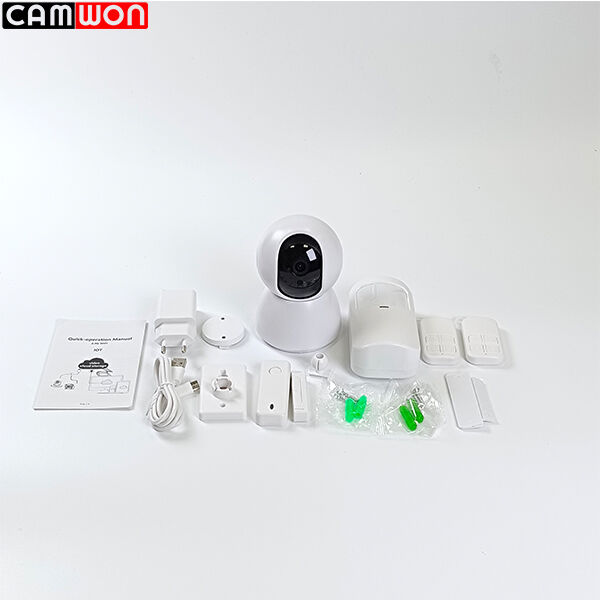

What's include:

WiFi IOT Camera Alarm Kit

1* Camera(Smart Hub)
1* PIR sensor
1* Door sensor
2* Remote control
Accessory: sticker, user manual, power adaptor

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

Specification Sheet:

Model No.	WIP-AK012	WIPAK013
APP	Tuya
Image Sensor	1/4.5" 2MP CMOS	1/2.8" 4MP CMOS
Effective Pixels	1920(H) x 1080(V)	2560(H) x 1440(V)
Video Pixels	1080p	1440p
Shutter Speed	1/15~1/10,000s
Minimum Illumination	Color 1Lux@F2.0, Monochrome 0.01Lux@F2.0
Day/Night Mode	Auto-switching between color and monochrome
Wide Dynamic Range	Digital wide dynamic range
Lens Specifications	3.6mm@F2.0, 87°/ 43°/104°
Light Board	6 infrared LEDs
Gimbal Angle	Horizontal: 0° to 355°, Vertical: 0° to 90°
Main Control Unit	FH8626V200
Bluetooth Module	BL-M6355CU1/AIC8800D40L
WiFi Chip	SV6355/AIC8800D40L
Physical Privacy Masking	Optional support
Firmware Version	V1.0.0
Audio/Video
Compression Format	H.264
Bitrate	32Kbps~2Mbps
Frame Rate	15fps
Dual Stream	Supported
Audio Input/Output	Built-in speaker and microphone
Audio	Two-way intercom
Video recording
Storage	TF card (maximum 256GB), cloud storage
Playback speed	X1
Rewind speed	X1
Video format	H264 encryption
Offline recording	Supported
Network
Wireless Security	Supports WEP, WPA, and WPA2 encryption methods.
Communication Protocol	HTTP, DHCP, DNS, TCP/IP.
Network Standard	LTE-TDD B34/B38/B39/B40/B41, LTE-FDD B1/B3/B8, LTE-FDD B5/B3.
Alarm Trigger	Motion detection, human detection, and sound detection.
Mobile Phone System	iOS 9 and above, Android 5 and above.
Security Encryption	AES128.
Maximum Number of Connections	5 or more.
Antenna	One built-in antenna.
Bluetooth Network Pairing	Yes (Bluetooth pairing function is supported when WiFi is available)
Standard
Operating temperature	-10 °C to 55 °C
Waterproof rating	NA
Shock resistance rating	IK08
Power supply method	DC 5V/1A
Power consumption	Max 5W
Power interface	Type C, 5V
Functions	Correlated color temperature, human detection, sound detection, effective area setting, number of 1 pc effective areas, rectangle effective area, motion tracking, 6pcs PTZ favorite points, alarm sound on/off, alarm sound type setting, alarm sound volume adjustment, Amazon Alexa(Optional), Google Home(Optional), Web RTC, ONVIF, preset point linkage.
IoT
Sub-device Quantity	32
History Sub-device	Supports a total of 30 days, with 16 messages per day in a loop.
Sub-device type	Covers infrared, door sensor, remote control, smoke detector, water immersion detector, CO detector, gas detector, etc.
Type Arming/Disarming	Remote control supported, APP supported.
Sub-device Management	APP supported.
IoT Parameter Settings	APP supported.

More Information:

This 2K IOT camera alarm kit works with the Tuya smart ecosystem, supporting both Tuya Smart and Smart Life apps for easy control. It connects via 2.4G Wi-Fi, integrating smoothly into your smart home setup.

2K Smart Tuya Camera 2MP / 4MP Home Security Alarm Camera Support PIR Detector Door Sensor 0

This IOT camera combines an alarm host and camera into one device, using exclusive global technology. It replaces separate alarm and camera units, saving space and simplifying your home security setup.

2K Smart Tuya Camera 2MP / 4MP Home Security Alarm Camera Support PIR Detector Door Sensor 1

This camera features a dual connection solution with WiFi and Bluetooth. The combination ensures stable linking, minimizing disruptions for reliable monitoring at all times.

2K Smart Tuya Camera 2MP / 4MP Home Security Alarm Camera Support PIR Detector Door Sensor 2

This camera is equipped with 10m infrared night vision, powered by 6 built-in infrared LEDs. It lets you clearly see your room conditions even in complete darkness.

2K Smart Tuya Camera 2MP / 4MP Home Security Alarm Camera Support PIR Detector Door Sensor 3

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	WIP-AK012

Minimum Order Quantity:	One Carton
