| Name: | Tuya Window Camera | Audio: | Two-way Audio |
|---|---|---|---|
| Power Cable Length: | 800MM | Power Adaptor: | 5V/1A |
| Housing Material: | ABS | Night Vision: | 8-10 Meters |
| Resolution: | 3MP | App: | Tuya |
| Highlight: | OEM Tuya Window Camera,Tuya Window Camera 5V,Wide Angle Night Vision Camera 3MP |
||

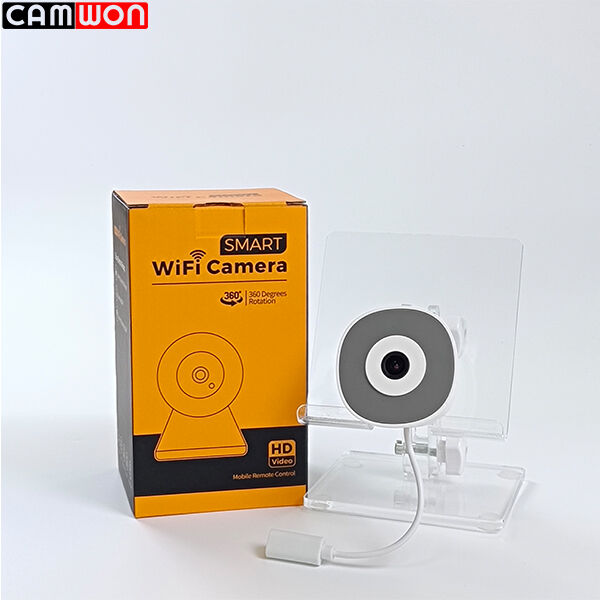

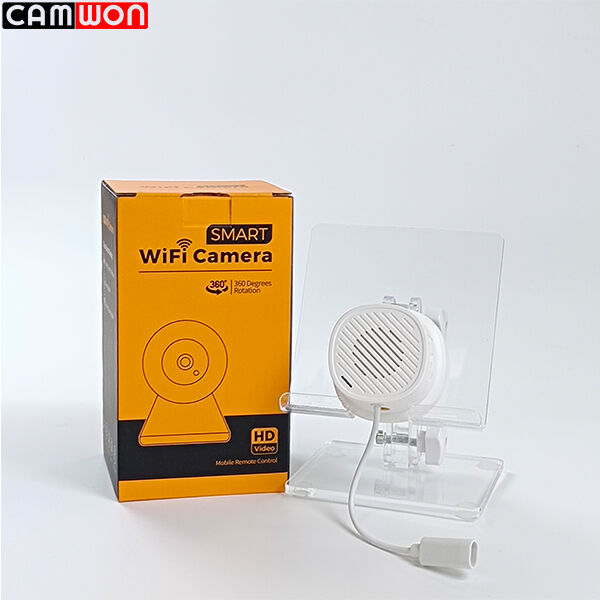

Tuya Window Camera 3MP Wi-Fi Security Camera with Built-in Siren Wide Angle Night Vision
Product Introduction:
Support for both local SD card and cloud storage gives you options to save and review footage based on your preference. Powered by 5V DC, it’s easy to install near any window with a nearby power outlet. Compact and unobtrusive, this camera blends into your indoor space while providing powerful, real-time security coverage.
Features:
● 3.0MP Optional
● Human Detection
● IR Lights, Night vision: 8-10 meters
● Audio: Two-way Audio
● Support Local SD Card & Cloud Storage
● Power: 5V DC
What's include:
● 1 x Camera
● 1 x Power Cable
● 1 x Adapter
● 1 x Manual
● 1 x Screw bag
Product Supports:
● OEM / ODM Support
● PID Customization
● Giftbox Customized
● Free Logo Printing
Specification Sheet:
| ◆ Model No.: | WIP-TB300AK | ||||
| ◆ APP | Tuya / Smart Life | ||||
| ◆ Product Dimension | 112.2*71.9*118.3mm | ||||
| ◆ Net Weight | 300g | ||||
| ◆ Power Cable Length | 800MM | ||||
| ◆ Housing Material | ABS | ||||
| ◆ Housing | White | ||||
| ◆ Hosing Flame Retardance | UL94 HB | ||||
| ◆ Ingress Protection(IP) | Glass camera | ||||
| ◆ Image Sensor | 1/2.9 2Megapixel progressive CMOS | ||||
| ◆ Sensor Brand And Model | SMARTSENS, SC231HA | ||||
| ◆ Main Chipset Brand And Model | T31L | ||||
| ◆ Wi-Fi Chipset Brand And Model | ATBM6012B-X | ||||
| ◆ Lens Brand And Model | 1932/11/18 | ||||
| ◆ lens Focal Length | 4MM | ||||
| ◆ Aperture | F1.6 | ||||
| ◆ Antenna Gain (dBi) | 3DB | ||||
| Electrical Specification | |||||
| ◆ Input Voltage | DC 5V 1A | ||||
| ◆ Live Stream Video Resolution | HD(2304*1296) / SD(640*360) | ||||
| ◆ Notification Image Resolution | SD(640*360) | ||||
| ◆ Real Pixels or Interpolation | 3MP | ||||
| ◆ Angle of View(H/V/D) | H 82.0° / V 44.1° / D 97.4° | ||||
| ◆ Angle of Pan and Tilt | N/A | ||||
| ◆ Microphone Sensitive | -38dB | ||||
| ◆ Noise Reduction | 3D NR | ||||
| ◆ Audio Input | Built in Mic | ||||
| ◆ Audio Output | Built in 8Ω1W 94db Speaker | ||||
| ◆ Audio Compression | G711U | ||||
| ◆ Video Compression | H.264&H.265 | ||||
| ◆ Frame Rate | Main streaming 1Mbps / Sub streaming 512Kbps | ||||
| Lighting Specification | |||||
| ◆ IR CUT | N/A | ||||
| ◆ IR On/Off Control | Auto / Manual | ||||
| ◆ IR Distance | 10m (49ft) | ||||
| ◆ Night Vision Mode | Low-light night vision | ||||
| ◆ Number of Infrared Light | N/A | ||||
| ◆ Number of White Light | N/A | ||||
| ◆ Indicator Color Status | Waiting for network configuration status - blue light blinking | ||||
| Offline status - Blue light blinking | |||||
| Network connection successful and working status - blue light stays on steadily | |||||
| Network and Condition | |||||
| ◆ Wireless Standard | IEEE 802.11 b/g/n | ||||
| ◆ Wireless Frequency | 2400-2500MHz | ||||
| ◆ Wireless Encryption Protocol | WPA-PSK/WPA2-PSK, WPA/WPA2, WEP | ||||
| ◆ Working Temperature | -10℃-+45℃ | ||||
| ◆ Working Humidity | 20%-95%RH | ||||
| Basic Specification | |||||
| ◆ Pairing Method | QR code + Bluetooth | ||||
| ◆ Network transmission | Supports 2.4GHz | ||||
| ◆ Two-way Talk | Support | ||||
| ◆ Sound Detection | Support | ||||
| ◆ Motion Detection | Support | ||||
| ◆ Area Monitoring Detection | Support | ||||
| ◆ Humanoid Body Filtering | Support | ||||
| ◆ Alarm Timer Settings | N/A | ||||
| ◆ Trigger Siren | Support | ||||
| ◆ Privacy Mode | Support | ||||
| ◆ Tamper Alarm | N/A | ||||
| ◆ Cloud Storage | Support | ||||
| ◆ WebRTC | Support | ||||
| ◆ WDR | Support | ||||
| ◆ Anti Flicker | Support | ||||
| ◆ Local Storage SD Slot | Micro SD Slot (up to 128GB) | ||||
| ◆ Hot Swappable SD Card | Support | ||||
| ◆ Voice Solution Configuration | Amazon Alexa, Google Assistant | ||||
| ◆ Installation method | Glass adsorption | ||||
| ◆ Reset button | Externa | ||||
| ◆homo sapiens form detection | Support | ||||
| ◆ Motion tracking | N/A | ||||
| ◆ Remote viewing/playback | Support | ||||
| ◆ Screen flip | Support | ||||
| ◆ Gun-ball linkage | N/A | ||||
| ◆ Pan-Tilt-Zoom (PTZ) | N/A | ||||
| ◆ Alarm push notification | Support | ||||
| ◆One-touch call | N/A | ||||
| ◆Network protocol | TCP/IP,IPv4,DHCP,P2P; | ||||
| ◆Network port functionality | N/A | ||||
| Automation in Application | |||||
| ◆ Automation Function as Condition | TBD | ||||
| ◆ Automation Function as Result | TBD | ||||
| Certification | |||||
| ◆ Approved Certification | |||||
More Information:
It integrates with the Tuya smart ecosystem, so you can view live feeds and manage settings via the app. The compact size and easy pairing make it a flexible choice for smart home or travel security.
![]()
Designed for family care, this sound monitor works as a reliable helper. It keeps you connected to your home’s audio environment, giving you peace of mind throughout the day and night.
![]()
With its easy stick-on mount and USB power supply, you can place this device on any window quickly. It’s ideal for renters or temporary use, offering flexible monitoring without permanent installation.
![]()
With reliable motion detection, this camera acts as a vigilant guard for your home. It lets you keep an eye on kids playing or monitor visitors, ensuring safety and convenience wherever you are.
![]()
