Detail Information

Name:	Tuya WiFi Doorbell Camera	Resolution:	2Mp & 5Mp Optional
Storage:	128G TF Card & Cloud	Power Supply:	Battery Powered/ Wired AC-powered
Meterial:	ABS	Audio:	Built In MIC & Speaker
Color:	Grey	App:	Tuya
Highlight:	smart home wifi camera , smart solar wifi camera

Product Description

Wide View Tuya Smart Life WiFi Video Intercom Doorbell Door Camera Wired Connect AC Power

This wired AC-powered WiFi video intercom doorbell delivers wide-angle monitoring and full smart home control via the Tuya Smart Life App. It combines a high-definition door camera, real-time two-way intercom, instant motion alerts, and reliable wired power supply to upgrade your home entry security.

Key features include an ultra-wide field of view to eliminate blind spots, clear day/night imaging, and stable 2.4G WiFi connectivity. You can see, hear, and speak to visitors remotely from your smartphone, receive instant push notifications when the bell rings or motion is detected, and enjoy non-stop operation with wired AC power input. Built to withstand outdoor use, it supports local recording and smart linkage, making it a secure and convenient upgrade for homes, apartments, and villas.

Package Included:

● Doorbell Camera *1

● Doorbell Chime (Optional) *1

● 2600mAh Battery (Optional) *2

● User Manual *1

● Installation Accessories

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

Specification

Model No.		WIP-TR200SB
APP		Tuya
Image Sensor	Sensor	1/3" color CMOS Sensor, RTL8715+F37
	Viewing Angle	130°
	Minimum Illumination	0.01 Lux
Audio	Input/Output	Two-way voice intercom available (built-in Microphone and speaker)
Video	Video Compressing Method	H.265 (support H.264, H.265)
	Image Frame Rate	1/25~1/100,000 per second
	Maximum Image Resolution	1920*1080P
	Light Source for Night Vision	IRCUT double optical filter automatic switching, and 4pcs 850nm LED Light IR Distance: 7M
Network	Wireless Network	2.4G Wi-Fi (IEEE802.11b/g/n)
	Protocol Supported	TCP/IP, HTTP, DHCP, DNS
Alarm Notification	Alarm Methods	Alarm push by mobile APP
Wake-up	Wake-up Method	PIR motion detection wake-up, ringing doorbell wake-up, remote APP live wake-up
Video Recording	Recording Method	Alarm triggered recording and manual recording
	Video Storage	Cloud & local Micro SD card storage (max. 128G)
Battery	Capacity	2*18650 battery, 5200mAh
	Removability	Removable
	Battery Life	Around 3 months (If trigger 20 times everyday)
	Standby Time	1 year
	Charging Voltage	DC5V/2A (USB-Type C Port)
	Charge Time	< 8 hours
Power Consumption	Working Current	200mA
	Standby Current	1.5mA
Interfaces	Power Supply	1 USB-Type C Port
	SD Card	1 Micro SD card (up to 128GB supported)
	Button	1 Reset button, 1 Doorbell Button
Power Supply	Power Supply	AC12-24V/DC12-24V (optional)
Installation Method	Installation Method	Screw installation & Double-sided tape installation
Environment	Dustproof and waterproof	IP65
	Operating Environment	-20° ~ 50°C / less than 90% (no condensation)
Specification	Size (LxWxH)	6138135mm
	Material + Process	PC+ABS
	Color	White/Grey/Black
Door Chime Spec.	Working Frequency	433Mhz
	Receiveing Range	150M (open space)
	Ringtones	58 for choosen
	Volume	4 grade volume adjusting, 25dB ~ 85dB
	Power Supply	DC5V, 1A (by micro usb port)
	LED Night	* Flash blue light when doorbell ringing * White light work as a PIR night light in the night
	Material + Process	ABS

More Information:

【Tuya Smart Home Video Doorbell 2-Way Intercom System APP Remotely Control WiFi CCTV IP Camera for Home Apartment】

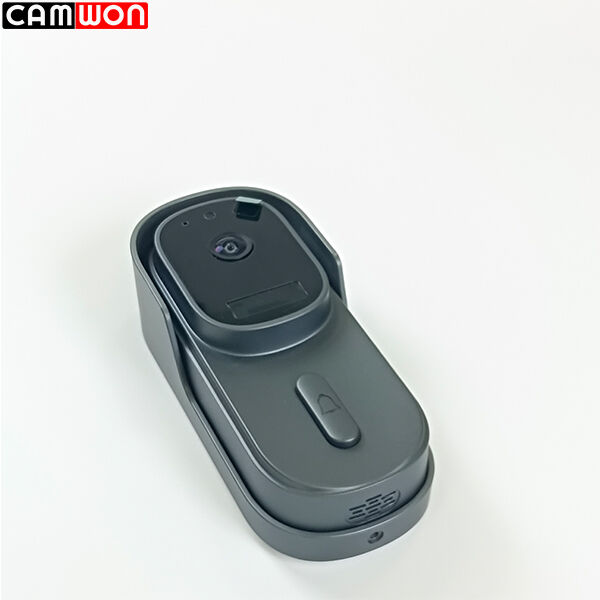

Wide View Tuya Smart Life WiFi Video Intercom Doorbell Door Camera Wired Connect AC Power 0

【This doorbell camera is built for outdoors. It has an IP65 weatherproof rating and comes with a built-in rain cover for extra protection.】

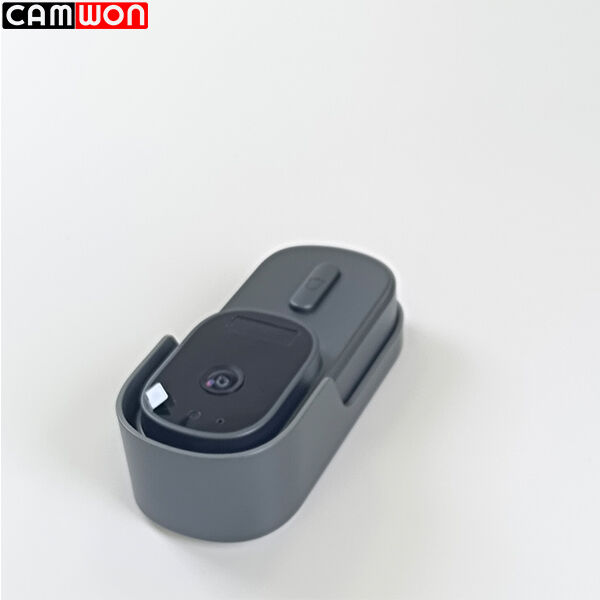

Wide View Tuya Smart Life WiFi Video Intercom Doorbell Door Camera Wired Connect AC Power 1

【Powered by 5200mAh battery, the wireless doorbell works for 40 days with 20 triggers a day under testing. (May change due to environment and frequency).】

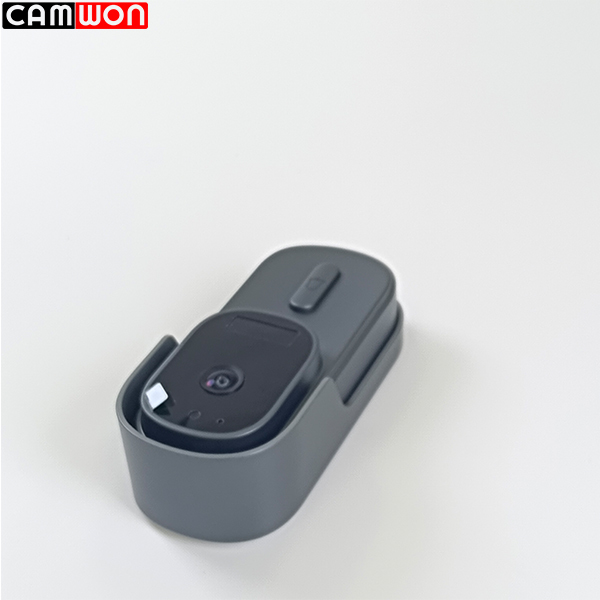

Wide View Tuya Smart Life WiFi Video Intercom Doorbell Door Camera Wired Connect AC Power 2

Tag:

Place of Origin:	China
Brand Name:	CAMWON
Certification:	CE, ROHS, BSCI, UKCA, EN-18031, TELEC, REACH
Model Number:	WIP-TR200SB

Minimum Order Quantity:	One Carton

Wide View Tuya Smart Life WiFi Video Intercom Doorbell Door Camera Wired Connect AC Power
