App Control Tuya Smart Alarm 433mhz Home Security Alarm System Kit

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: WIP-AK011
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: Tuya Smart Alarm Accessories Frequency: 433mHz
Display: 7" IPS Screen Connectivity: WIFI+4G
Alarm Panel Power Supply: 110/220VAC To Type-C 5V, 2000mA Supported Zones: Up To 100 Wireless Zones And 3 Wired Zones
Wi-Fi: IEEE802.11b/g/n Voice Control: Support Alexa & Google Assistant
Backup Battery: 3.7V, 5000mAh Lithium Battery App: Tuya
Highlight:

App Control Tuya Smart Alarm

,

Tuya Smart Alarm 433mhz

,

433mhz Home Security Alarm System Kit


Product Description

Wireless Tuya Wifi Alarm System App Control 433mhz Home Security Alarm Kit System



Product Introduction:

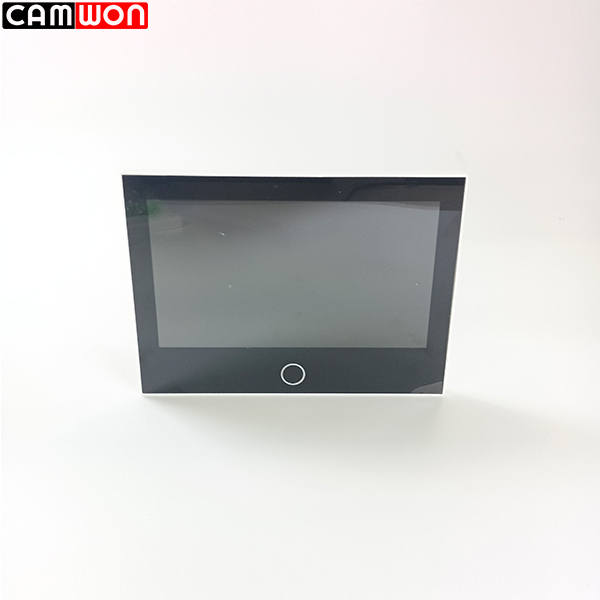

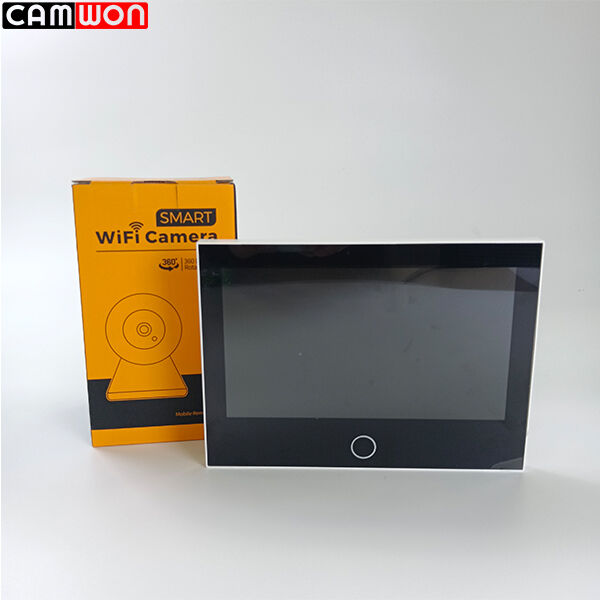

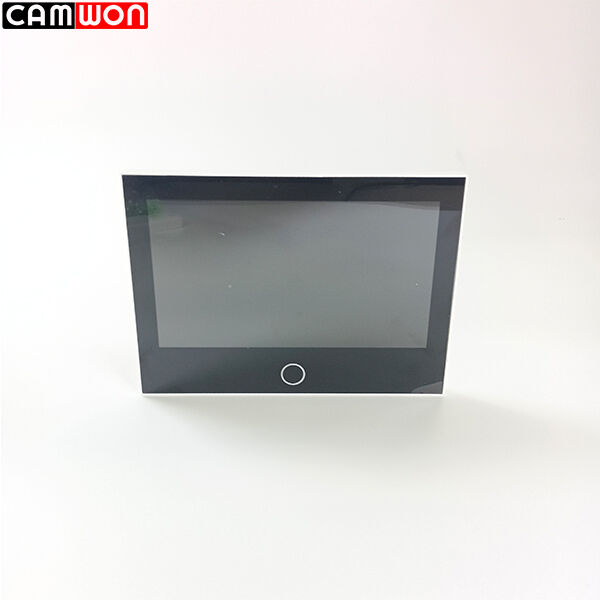

Powered by Tuya, this alarm system combines a 7-inch clear screen with Wi-Fi+4G network support. You can control it remotely via your smartphone, use the SOS emergency button, and connect various sensors to protect your home effectively.



Features:

7-inch IPS Full-color Display Screen

24/7 Real-time Monitoring & Instant Notification

AI-powered Smart Alerts

Built-in Siren & Buzzer​

Multi-connectivity Support

ONVIF & CMS Compatibility



What's include:

1* Smart Hub
1* PIR sensor
1* Door sensor
2* Remote control
1* Siren
Accessory: sticker, user manual, power adaptor



Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing



Specification Sheet:

Alarm Panel
Power Supply: 110/220VAC to Type-C 5V, 2000mA
Backup Battery: 3.7V, 5000mAh Lithium Battery
Avg. Consumption: <300mA@screen off, <650mA@screen on
Siren Output: <500mA@high volume mode, <50mA@low volume mode
Radio Frequency: 433Mhz
Cellular: Cat-1 LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 (for SA version)
LTE-FDD B1/B3/B5/B7/B8/B20 (for E version)
LTE-FDD B1/B3/B5/B8 and LTE-TDD B34/38/39/40/41 (for C version)
SIM Card: 4FF/Nano
Wi-Fi: IEEE802.11b/g/n
Connectivity: wireless siren, up to 10 remote tags, up to 100 sensors
Operation Temperature: -10~55
Door/Window Sensor
Power Supply: DC 3V (CR2032 Lithium Battery x1)
Consumption: <8uA@Standby, <15mA@Alarm
Transmitting Distance: <150m (Open Area/No Interference)
Radio Frequency: 433Mhz/FSK
Operation Temperature: -10~55
PIR Motion Sensor
Power Supply: 1.5V AA Battery x3
Consumption: <15uA@Standby, <25mA@Alarm
Motion Distance: <12meters
Motion Range: 110°
Transmitting Distance: <150m (Open Area and No Interference)
Radio Frequency: 433Mhz/FSK
Operation Temperature: -10~55
Remote
Power Supply: DC 3V (CR2025 Lithium Battery x1)
Consumption: <5uA@Standby, <15mA@Alarm
Transmitting Distance: <150m (Open Area and No Interference)
Radio Frequency: 433Mhz/FSK
Operation Temperature: -10~55



More Information:

Designed for modern homes, this alarm kit combines a user-friendly 7-inch touch screen interface with comprehensive safety features. The intuitive interface displays system status at a glance, while the included wireless remotes and sensors create a layered security network. You can easily arm the system when leaving home, switch to stay mode for nighttime protection, or disarm it with a simple tap. The touch screen also acts as a smart home dashboard, keeping you informed of time, temperature, and weather, while ensuring your home remains protected against intrusions, with instant alerts and reliable performance around the clock.

App Control Tuya Smart Alarm 433mhz Home Security Alarm System Kit 0



Built-in 5000mAh Battery

There is no need to worry about protection failure when there is a sudden power outage, the alarm panel has a built-in 5000mAh.

App Control Tuya Smart Alarm 433mhz Home Security Alarm System Kit 1



Can Add 5 phone numbers and SMS notification phone numbers

Supports SIM cards. Via SIM it is also possible to arm and disarm remotely in case of emergency, even without internet connection.

App Control Tuya Smart Alarm 433mhz Home Security Alarm System Kit 2



Support 6 Languages

App Control Tuya Smart Alarm 433mhz Home Security Alarm System Kit 3
