433mhz Tuya 4G+WIFI Dual Network Alarm System for House Security and Safety Alarm System
Product Introduction:
This smart alarm system, with a 7-inch IPS display and Tuya integration, uses Wi-Fi+4G for stable connectivity. It allows remote arming/disarming, includes multiple security sensors, and provides instant alerts to keep your home safe.
Features:
● 7-inch IPS Full-color Display Screen
● 24/7 Real-time Monitoring & Instant Notification
● AI-powered Smart Alerts
● Built-in Siren & Buzzer
● Multi-connectivity Support
● ONVIF & CMS Compatibility

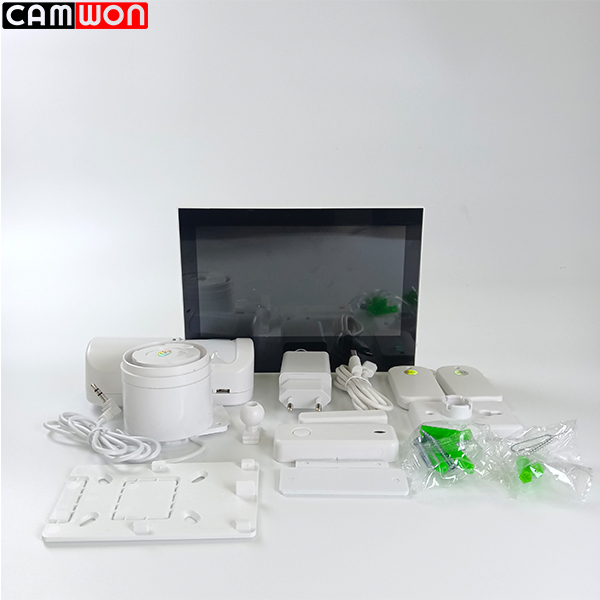

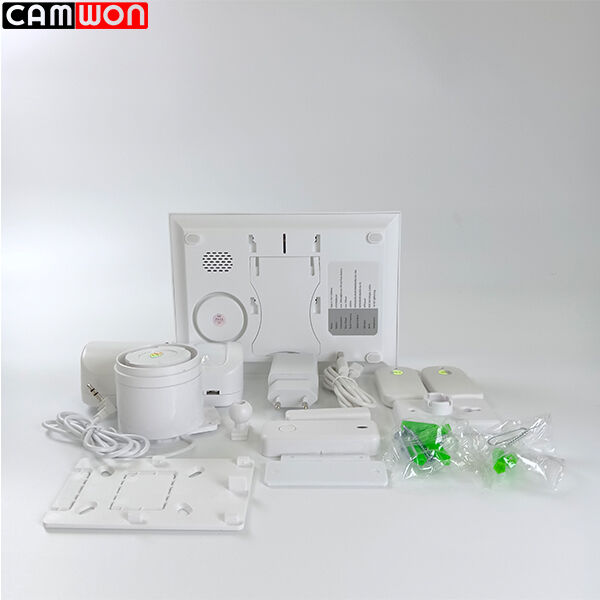

What's include:
1* Smart Hub
1* PIR sensor
1* Door sensor
2* Remote control
1* Siren
Accessory: sticker, user manual, power adaptor
Product Supports:
● OEM / ODM Support
● PID Customization
● Giftbox Customized
● Free Logo Printing
Specification Sheet:
| Alarm Panel |
| Power Supply: |
110/220VAC to Type-C 5V, 2000mA |
| Backup Battery: |
3.7V, 5000mAh Lithium Battery |
| Avg. Consumption: |
<300mA@screen off, <650mA@screen on |
| Siren Output: |
<500mA@high volume mode, <50mA@low volume mode |
| Radio Frequency: |
433Mhz |
| Cellular: Cat-1 |
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 (for SA version) |
| LTE-FDD B1/B3/B5/B7/B8/B20 (for E version) |
| LTE-FDD B1/B3/B5/B8 and LTE-TDD B34/38/39/40/41 (for C version) |
| SIM Card: |
4FF/Nano |
| Wi-Fi: |
IEEE802.11b/g/n |
| Connectivity: |
wireless siren, up to 10 remote tags, up to 100 sensors |
| Operation Temperature: |
-10~55℃ |
| Door/Window Sensor |
| Power Supply: |
DC 3V (CR2032 Lithium Battery x1) |
| Consumption: |
<8uA@Standby, <15mA@Alarm |
| Transmitting Distance: |
<150m (Open Area/No Interference) |
| Radio Frequency: |
433Mhz/FSK |
| Operation Temperature: |
-10~55℃ |
| PIR Motion Sensor |
| Power Supply: |
1.5V AA Battery x3 |
| Consumption: |
<15uA@Standby, <25mA@Alarm |
| Motion Distance: |
<12meters |
| Motion Range: |
110° |
| Transmitting Distance: |
<150m (Open Area and No Interference) |
| Radio Frequency: |
433Mhz/FSK |
| Operation Temperature: |
-10~55℃ |
| Remote |
| Power Supply: |
DC 3V (CR2025 Lithium Battery x1) |
| Consumption: |
<5uA@Standby, <15mA@Alarm |
| Transmitting Distance: |
<150m (Open Area and No Interference) |
| Radio Frequency: |
433Mhz/FSK |
| Operation Temperature: |
-10~55℃ |
More Information:

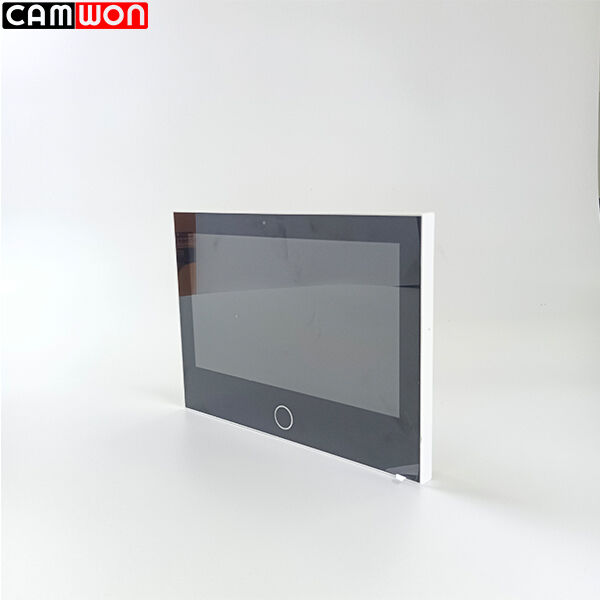

This 7-inch touch screen smart home alarm kit puts complete home security control at your fingertips. The large, clear display shows real-time system status, time, weather, and quick-access buttons for arming, disarming, or activating stay mode, making it easy for anyone in the family to operate. It works seamlessly with connected sensors—including door/window contacts and motion detectors—and remote controls, letting you monitor and manage your entire security system from one central hub. The built-in SOS button provides instant emergency access, adding an extra layer of safety for your household.
With a powerful 5000mAh battery, this alarm panel boasts exceptional battery life. It maintains stable operation even during power outages, keeping your home secure without the risk of sudden shutdowns.
Customize your security sensors with ease: rename devices like "Door Sensor 1" on the touch panel, adjust their type and mode, and keep your alarm system organized for intuitive monitoring and quick responses.
Designed for user comfort, this alarm kit lets you easily adjust screen brightness, alarm volume, and operation tones. You can switch between audible alerts and silent modes seamlessly, tailoring the system to fit your home environment.
Designed for user comfort, this alarm kit lets you easily adjust screen brightness, alarm volume, and operation tones. You can switch between audible alerts and silent modes seamlessly, tailoring the system to fit your home e
