Detail Information

Name:	Smart Wireless Alarm System	Accessories Frequency:	433mHz
Supported Zones:	Up To 100 Wireless Zones And 3 Wired Zones	Power:	DC 5V
Voice Control:	Support Alexa & Google Assistant	Alarm Volume:	110dB
Connectivity:	WIFI+2G / WIFI+4G	App:	Tuya
Highlight:	433MHz Smart Wireless Alarm System , Google Home WiFi GSM Alarm System , APP Control WiFi GSM Alarm System

Product Description

Tuya Smart Home Security Alarm 433MHz WiFi APP Control Power Battery Alexa Google Home

Product Introduction:

This advanced home security system combines WiFi and GSM dual-network connectivity for uninterrupted protection, even during internet outages. Equipped with a PIR motion sensor, door/window contacts, RFID card access, and a loud 85dB siren, it delivers real-time alerts to your smartphone via the Tuya app. With touch-button control and anti-pry alarm features, it ensures fast response to intrusions while supporting seamless integration with Amazon Alexa and Google Assistant for voice control.

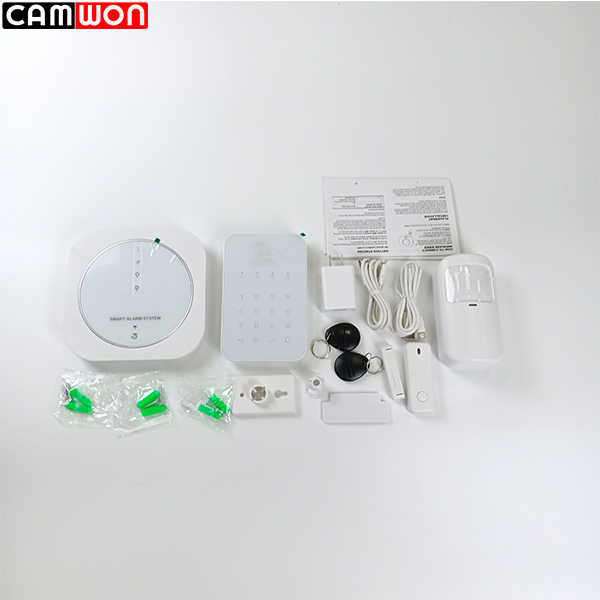

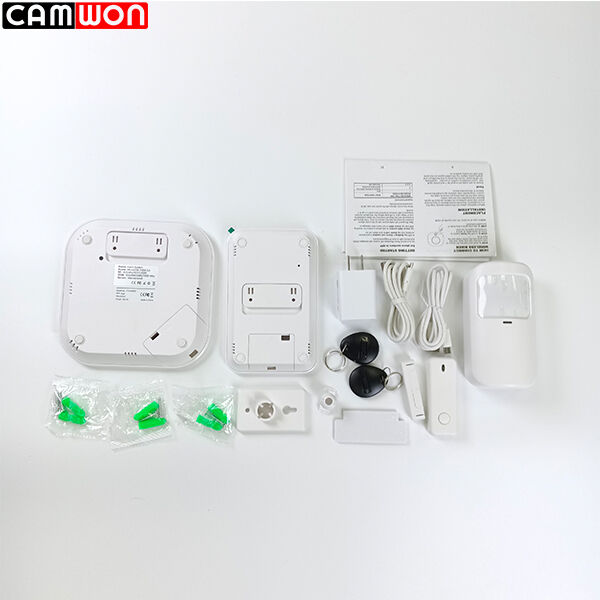

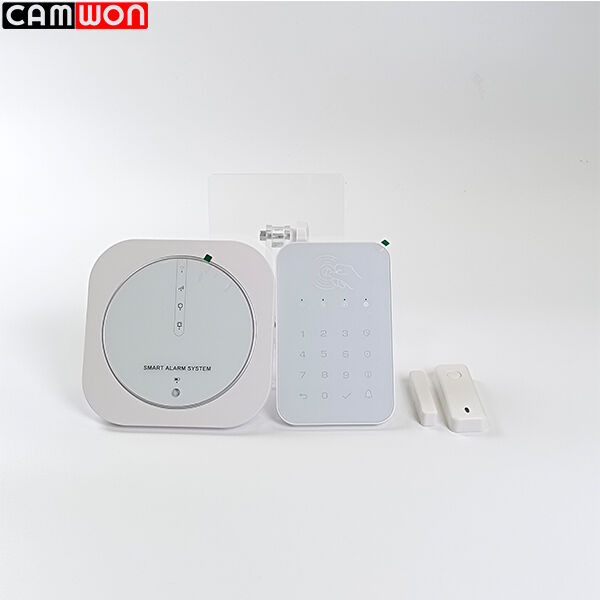

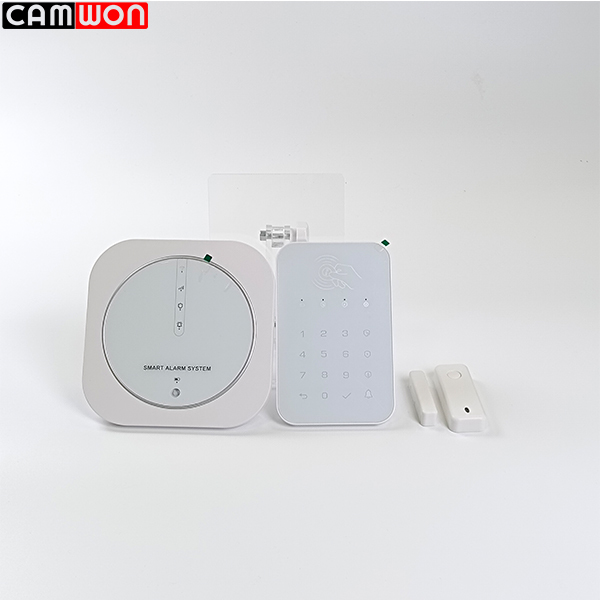

What's include:

1* Smart Hub
1* PIR sensor
1* Door sensor
2* RFID card
1* RFID keypad
Accessory: sticker, user manual, power adaptor

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

Specification Sheet:

Smart Hub Power Supply: Micro USB+5VDC/1000mA Backup Battery: 3.7V,300mAh Lithium-io Battery Consumption:<150mA@normal GSM: 850/900/1800/1900MHz Wi-Fi: IEEE802.11b/g/n Radio Frequency: 433Mhz Connectivity: wireless siren and up to 100 wireless sensors Operating Temperature: -10~55℃











Keypad Power Supply: Micro USB+5VDC/1000mA Backup Battery: 3.7V,500mAh Lithium-ion Battery Consumption: <15uA@sleep and <15mA@ready Radio Frequency: 433Mhz RFID Chip: 4100/4200RFID Frequency: 125KHz Operation Temperature: -10~55℃









Door/Window Sensor Power Supply: DC 3V (CR2032 Lithium Battery x1) Standby Current: <8uA Alarm Current: < 15mA Transmitting Distance: <80m (Open Area/No Interference) Radio Frequency: 433Mhz Operation Temperature: - 10~55℃







PIR Motion Sensor Power Supply: DC 3V (CR2450 Lithium Battery x1) Standby Current: < 15uA Alarm Current: <25mA Detection Scope: < 12m/110° Transmitting Distance: <80m (Open Area and No Interference) Radio Frequency: 433Mhz







RFID Tag Frequency: 125Khz/13.56Mhz/860-960Mhz Protocol: ISO14443A/ISO15693/ISO18000-6C Material: PVC+PET+ABS Function: key fob to quickly arm and disarm your home

More Information:

Robust & Intelligent Protection

Our system is built around a powerful central alarm panel that integrates seamlessly with a suite of smart sensors, including door/window contacts, PIR motion detectors, and smoke/CO alarms. When any sensor is triggered—whether by an unauthorized entry, a detected movement, or a potential hazard—the system immediately activates an 85dB loud siren to deter intruders and alert neighbors, while sending instant, real-time push notifications to your smartphone via the Tuya Smart app. You’ll know instantly what’s happening at home, even when you’re miles away.

Smart Control at Your Fingertips

Powered by the Tuya Smart platform, our alarm system offers global server connectivity for unmatched speed, stability, and security. Through the intuitive Tuya app, you can fully control every aspect of your system: arm/disarm remotely, check sensor statuses, review event logs, and customize alert settings. It also works seamlessly with Google Assistant, allowing you to control your security with simple voice commands—perfect for busy mornings or when your hands are full.

Flexible & User-Friendly Operation

We’ve designed our system to be as easy to use as it is powerful:

RFID Card & Touch Keypad: Arm/disarm with a quick tap of an RFID card or by entering a secure 4-digit code on the backlit touch keypad, ideal for family members and trusted visitors.

Anti-Dismantling & Anti-Pry Alarms: Built-in tamper sensors trigger an immediate alert if someone tries to remove or pry open the panel or any sensor, ensuring your system can’t be disabled by intruders.

Long Battery Life: A backup lithium battery keeps your system fully operational even during power outages, so your home is never left unprotected.

Doorbell Functionality: The system doubles as a smart doorbell—when a visitor presses the keypad’s doorbell button, it chimes the main panel and sends a notification to your phone, letting you know who’s at the door without needing a separate device.

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	WIP-AK004

Minimum Order Quantity:	One Carton

433MHz Smart Wireless Alarm System Alexa Google Home WiFi GSM Alarm System With APP Control
