Detail Information

Name:	Smart Home Security Alarm Kit	Supported Zones:	Up To 100 Wireless Zones And 3 Wired Zones
Accessories Frequency:	433mHz	Connectivity:	WIFI+2G / WIFI+4G
Backup Battery:	3.7V,300mAh	Alarm Volume:	110dB
Voice Control:	Support Alexa & Google Assistant	App:	Tuya
Highlight:	Compact Tuya Smart Alarm , 2G GSM WiFi Alarm System , 4G GSM WiFi Alarm System

Product Description

GSM WiFi Smart Home Security Alarm Kit PIR Motion Sensor 433MHz Wireless Alarm Kit

Product Introduction:

Powered by Tuya’s global server infrastructure, the system delivers high-speed, stable, and secure performance across 30,000+ compatible devices. Whether you’re at home or away, receive instant push notifications on your mobile device for any triggered event — including door sensors, motion detection, or tampering attempts. Its sleek, compact design blends into any interior, while the intuitive app interface allows full remote management, making it the ideal choice for modern, connected homes seeking comprehensive, customizable security.

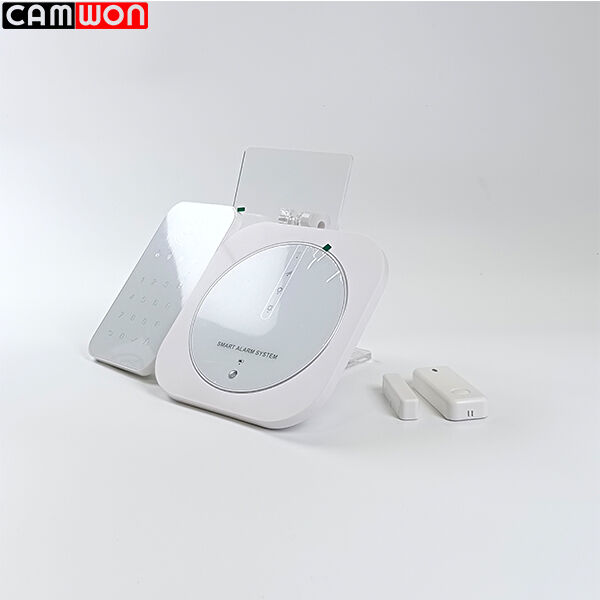

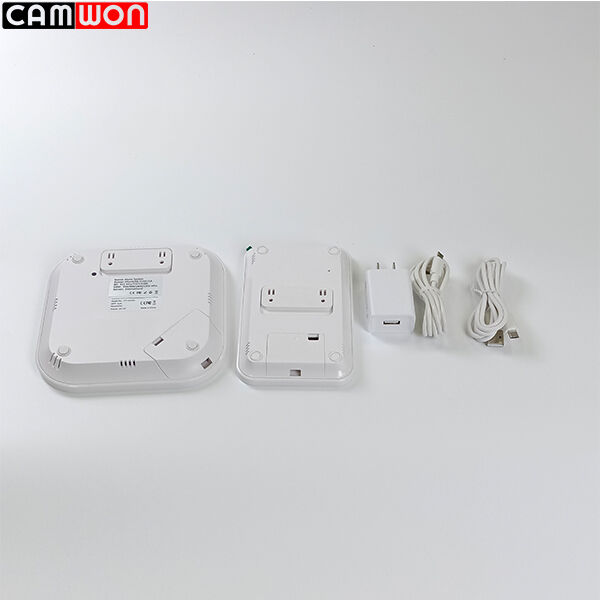

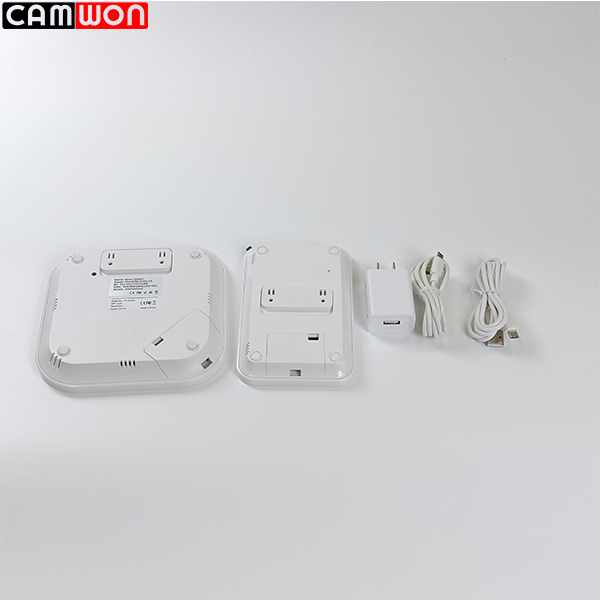

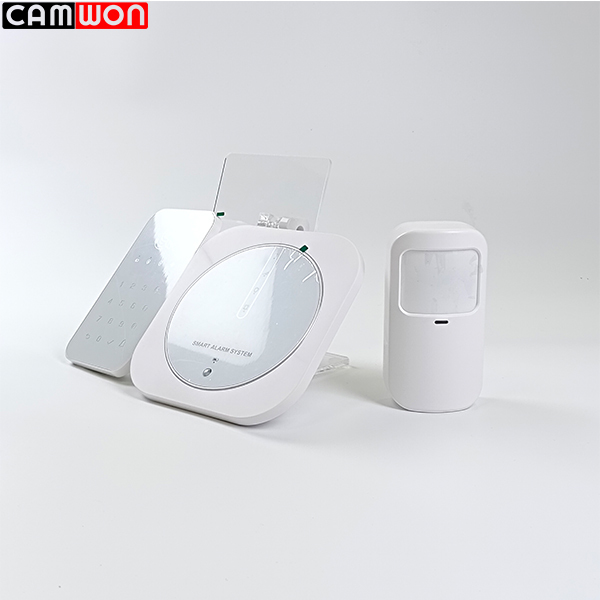

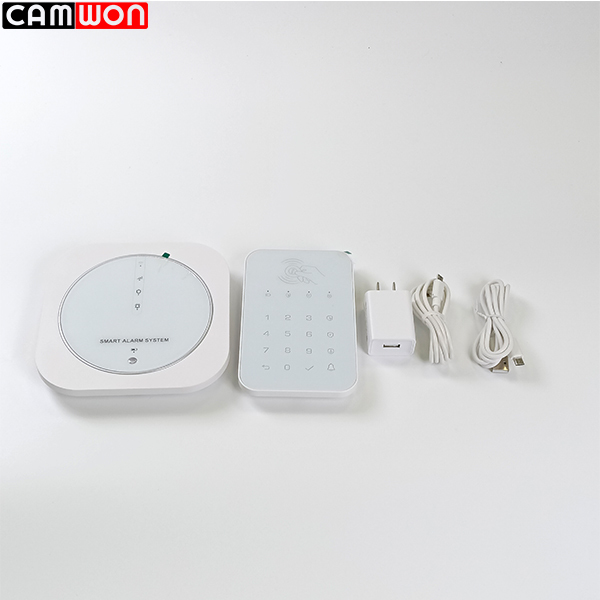

What's include:

1* Smart Hub
1* PIR sensor
1* Door sensor
2* RFID card
1* RFID keypad
Accessory: sticker, user manual, power adaptor

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

Specification Sheet:

Smart Hub Power Supply: Micro USB+5VDC/1000mA Backup Battery: 3.7V,300mAh Lithium-io Battery Consumption:<150mA@normal GSM: 850/900/1800/1900MHz Wi-Fi: IEEE802.11b/g/n Radio Frequency: 433Mhz Connectivity: wireless siren and up to 100 wireless sensors Operating Temperature: -10~55℃











Keypad Power Supply: Micro USB+5VDC/1000mA Backup Battery: 3.7V,500mAh Lithium-ion Battery Consumption: <15uA@sleep and <15mA@ready Radio Frequency: 433Mhz RFID Chip: 4100/4200RFID Frequency: 125KHz Operation Temperature: -10~55℃









Door/Window Sensor Power Supply: DC 3V (CR2032 Lithium Battery x1) Standby Current: <8uA Alarm Current: < 15mA Transmitting Distance: <80m (Open Area/No Interference) Radio Frequency: 433Mhz Operation Temperature: - 10~55℃







PIR Motion Sensor Power Supply: DC 3V (CR2450 Lithium Battery x1) Standby Current: < 15uA Alarm Current: <25mA Detection Scope: < 12m/110° Transmitting Distance: <80m (Open Area and No Interference) Radio Frequency: 433Mhz







RFID Tag Frequency: 125Khz/13.56Mhz/860-960Mhz Protocol: ISO14443A/ISO15693/ISO18000-6C Material: PVC+PET+ABS Function: key fob to quickly arm and disarm your home

More Information:

Your home deserves more than just locks—it deserves a smart, vigilant guardian that works around the clock. Introducing the CAMWON Smart Alarm System, a comprehensive security solution engineered to blend powerful protection with effortless convenience, so you can focus on what matters most without worrying about safety.

Unmatched Security Coverage

At the heart of our system is a sleek, compact central panel that acts as the brain of your home security network. It connects wirelessly to a full range of smart sensors—including door/window contacts, PIR motion detectors, and environmental alarms—to create a protective shield around your property. The moment a sensor is triggered (by an open window, unexpected movement, or tampering), the system unleashes an ear-piercing 85dB siren to scare off intruders and alert nearby residents, while sending instant, actionable alerts straight to your smartphone via the Tuya Smart app. You’ll never miss a critical event, even when you’re halfway across the globe.

Intuitive Smart Control & Connectivity

Powered by the industry-leading Tuya Smart platform, our alarm system offers lightning-fast, stable global connectivity, ensuring your commands and alerts are always delivered without delay. The intuitive Tuya app puts complete control in your pocket: arm or disarm the system with a single tap, check the real-time status of every sensor, review detailed event history, and customize alert preferences to fit your lifestyle. For hands-free convenience, it also integrates seamlessly with Google Assistant, letting you control your security with simple voice commands—just say, “Hey Google, arm my home alarm,” and your system will do the rest.

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	WIP-AK004

Minimum Order Quantity:	One Carton

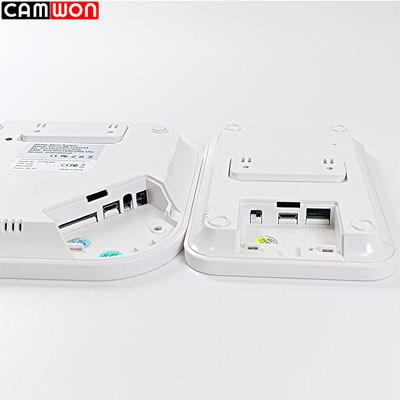

Compact Tuya Smart Alarm 2G 4G GSM WiFi Alarm System With PIR Motion Sensor
