4.3 Inch Touch Screen Security System SOS GSM 4G WiFi Smart Security System

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: WIP-AK010
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: Touch Screen Security System Screen: Touch Screen
Screen Size: 4.3 Inch Accessories Frequency: 433mHz
Connectivity: WIFI+2G / WIFI+4G Backup Battery: 3.7V, 500mAh Rechargeable Lithium Battery
Alarm Volume: 110dB Voice Control: Support Alexa & Google Assistant
Highlight:

4.3 Inch Touch Screen Security System

,

SOS WiFi Smart Security System

,

4G WiFi Smart Security System


Product Description

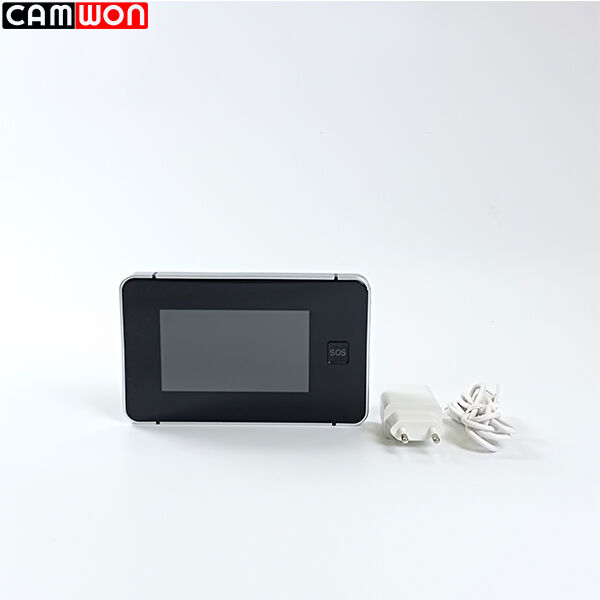

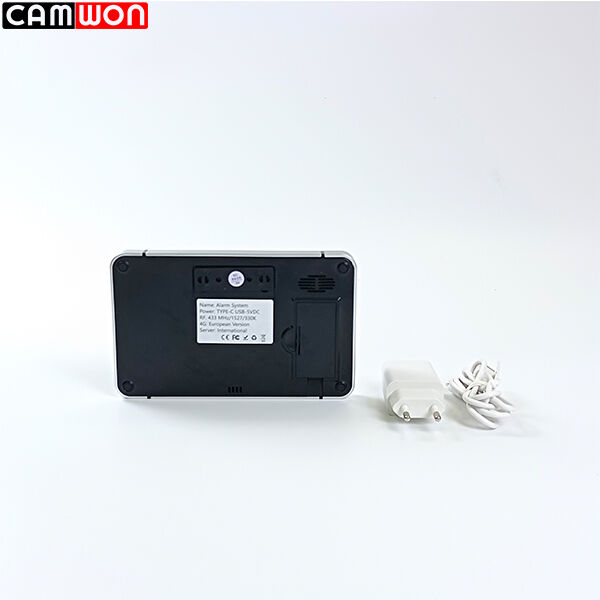

4.3'' Touch Screen SOS GSM 4G WiFi Smart Security System Tuya Home Alarm Systems



1. Product Name:4.3 Inch Touch Screen WiFi Alarm Kit
2. Display: 4.3" IPS Screen
3. Accessories Frequency: 433mHz
4. Connectivity: WIFI+2G / WIFI+4G
5. Power: DC 5V
6. Backup Battery: 3.7V, 500mAh Rechargeable Lithium Battery
7. Alarm Volume: 110dB
8. Working Temp. : - 10~55℃
9. Warranty: 18 months
10. Voice Control: Support Alexa & Google Assistant


Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing





Specification

    Smart Hub
     Power Supply:  Micro USB 110/220VAC to 5V, 1000mA
     Backup Battery:  3.7V, 500mAh Rechargeable Lithium Battery
     Consumption:  <350mA@normal
     Siren Output: <500mA
     Radio Frequency: 433Mhz
     GSM:  850/900/ 1800/ 1900MHz
     Wi-Fi: IEEE802. 11b/g/n
     Operation Temperature: - 10~55
    Remote
     Power Supply:  DC 3V (CR2025 Lithium Battery x1)
     Standby Current:  <5uA
     Alarm Current: < 15mA
     Transmitting Distance: <80m (Open Area and No Interference)
     Radio Frequency: 433Mhz
     Operation Temperature: - 10~55
    Door/Window Sensor
     Power Supply:  DC 3V (CR2032 Lithium Battery x1)
     Standby Current:  <8uA
     Alarm Current: < 15mA
     Transmitting Distance: <80m (Open Area/No Interference)
     Radio Frequency: 433Mhz
     Operation Temperature: - 10~55
    PIR Motion Sensor
     Power Supply:  DC 3V (CR2450 Lithium Battery x1)
     Standby Current:  < 15uA
     Alarm Current: <25mA
     Detection Scope:  < 12m/110°
     Transmitting Distance: <80m (Open Area and No Interference)
     Radio Frequency: 433Mhz
     Operation Temperature: - 10~55
     Siren
     Power Supply: Micro USB 110/220VAC to 5V, 1000mA
     Backup Battery:  3.7V, 300mAh Rechargeable Lithium Battery
     Standby Current:  < 15mA
     Alarm Current:  <230mA
     Volume:  100dB
     Radio Frequency: 433Mhz
     Operation Temperature: - 10~55


Our 4.3-inch Touch Screen Smart Security Alarm System, powered by Tuya Smart, provides comprehensive protection for homes, shops, apartments and offices. Equipped with GSM, 4G and WiFi triple-network connectivity, it ensures 24/7 stable monitoring, preventing signal loss and keeping your property safe. The 4.3-inch HD color touch screen is intuitive and easy to operate for all ages, clearly displaying real-time system status and supporting multi-language display for global application.


Featuring a dedicated SOS emergency button, the system offers extra protection for vulnerable groups. In case of emergencies, a simple press triggers an immediate alarm—it sends distress signals to preset contacts via SMS, calls and Tuya APP, while emitting a 110dB loud sound to deter intruders. The triple-network design guarantees reliability: WiFi for daily use, GSM and 4G as backups, with automatic network switching for seamless monitoring even when WiFi is disconnected.



Integrated with the Tuya Smart APP (available for iOS and Android), it supports remote arming, disarming and real-time push notifications when sensors are triggered. It is compatible with various wireless security accessories, allowing customized security zones and arming modes. Easy to install without professional wiring, it is a simple, reliable and cost-effective smart security solution for global users.
