Detail Information

Name:	WiFi Smart Alarm	Voice Control:	Support Alexa & Google Assistant
Backup Battery:	3.7V,300mAh	Accessories Frequency:	433mHz
Connectivity:	WIFI+2G / WIFI+4G	Supported Zones:	Up To 100 Wireless Zones And 3 Wired Zones
Alarm Volume:	110dB	App:	Tuya
Highlight:	Tuya WiFi Smart Alarm , WiFi Smart Alarm 110dB , 110dB WiFi Home Security Alarm

Product Description

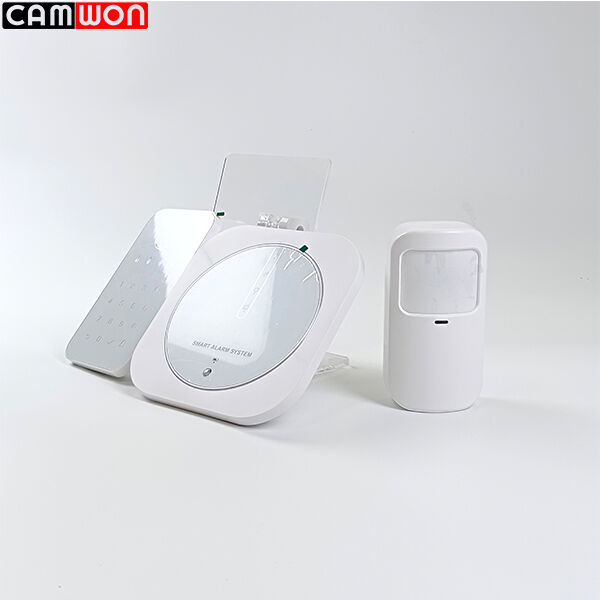

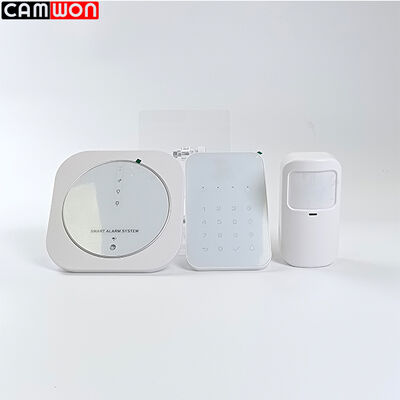

Tuya WiFi Smart Alarm System with PIR Motion Sensor Door Remote Control Home Security Kit

Product Introduction:

Leveraging Tuya's robust global server infrastructure, the system ensures high-speed, stable, and secure connectivity across 30,000+ compatible smart devices. You'll receive instant push notifications on your mobile for any triggered event—be it door sensor activation, motion detection, or tampering attempts—whether you're at home or away. Its sleek, compact design seamlessly integrates into any interior, and the intuitive app enables full remote management. This makes it the ideal, comprehensive, and customizable security solution for modern, connected homes.

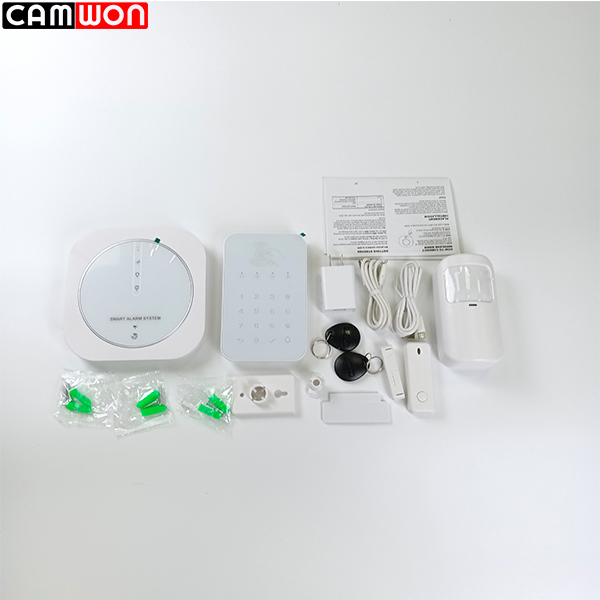

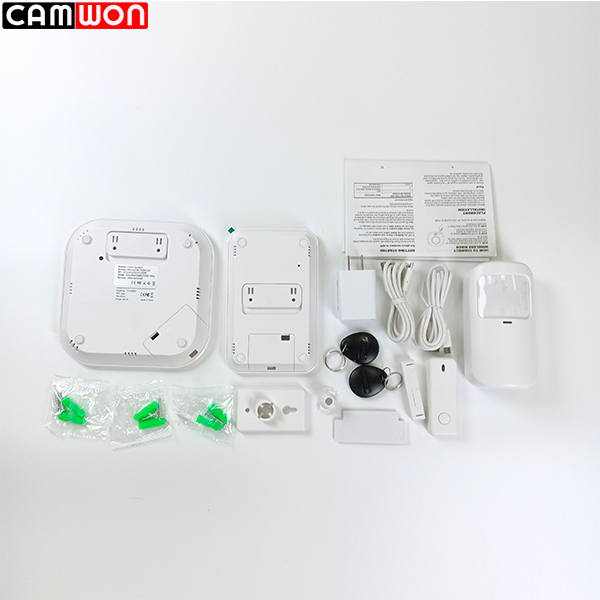

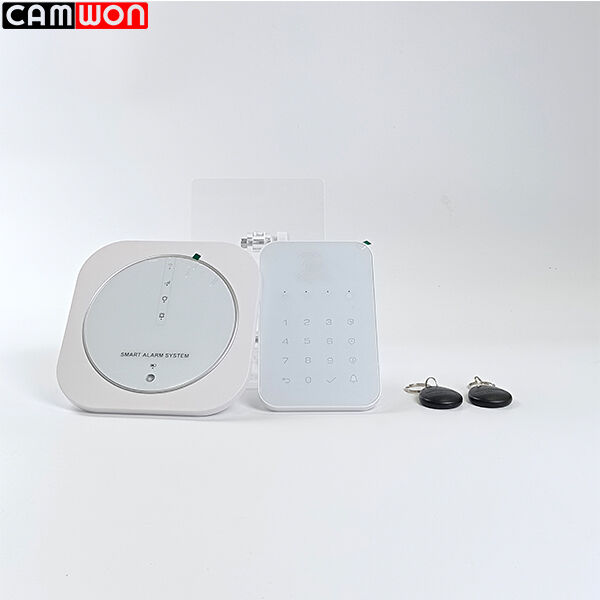

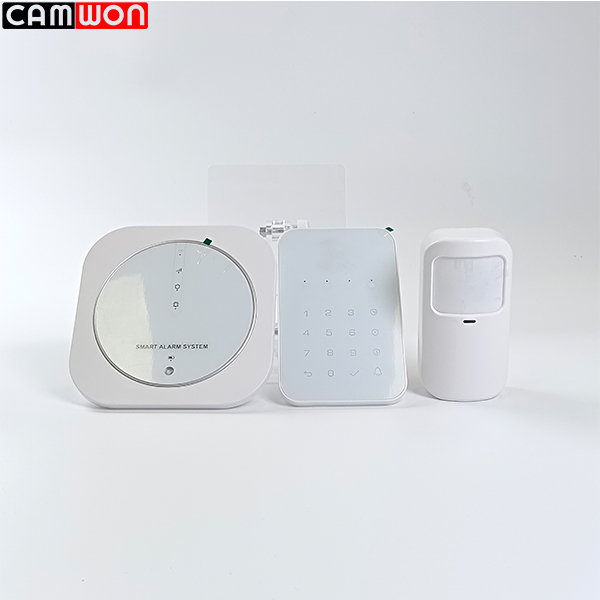

What's include:

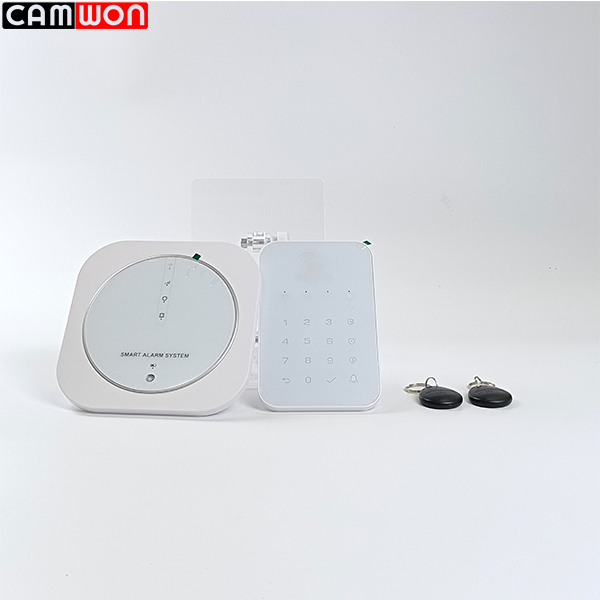

1* Smart Hub
1* PIR sensor
1* Door sensor
2* RFID card
1* RFID keypad
Accessory: sticker, user manual, power adaptor

Product Supports:

● OEM / ODM Support

● PID Customization

● Giftbox Customized

● Free Logo Printing

Specification Sheet:

Smart Hub Power Supply: Micro USB+5VDC/1000mA Backup Battery: 3.7V,300mAh Lithium-io Battery Consumption:<150mA@normal GSM: 850/900/1800/1900MHz Wi-Fi: IEEE802.11b/g/n Radio Frequency: 433Mhz Connectivity: wireless siren and up to 100 wireless sensors Operating Temperature: -10~55℃











Keypad Power Supply: Micro USB+5VDC/1000mA Backup Battery: 3.7V,500mAh Lithium-ion Battery Consumption: <15uA@sleep and <15mA@ready Radio Frequency: 433Mhz RFID Chip: 4100/4200RFID Frequency: 125KHz Operation Temperature: -10~55℃









Door/Window Sensor Power Supply: DC 3V (CR2032 Lithium Battery x1) Standby Current: <8uA Alarm Current: < 15mA Transmitting Distance: <80m (Open Area/No Interference) Radio Frequency: 433Mhz Operation Temperature: - 10~55℃







PIR Motion Sensor Power Supply: DC 3V (CR2450 Lithium Battery x1) Standby Current: < 15uA Alarm Current: <25mA Detection Scope: < 12m/110° Transmitting Distance: <80m (Open Area and No Interference) Radio Frequency: 433Mhz







RFID Tag Frequency: 125Khz/13.56Mhz/860-960Mhz Protocol: ISO14443A/ISO15693/ISO18000-6C Material: PVC+PET+ABS Function: key fob to quickly arm and disarm your home

More Information:

Your home deserves a smart, vigilant guardian that works around the clock—it deserves more than just locks. Introducing the CAMWON Smart Alarm System, a comprehensive security solution engineered to blend powerful protection with effortless convenience, so you can focus on what matters most with complete peace of mind.

Unmatched Security Coverage

Our system is built around a sleek, compact central panel, the intelligent brain of your security network. It wirelessly connects to a full suite of smart sensors—from door/window contacts and PIR motion detectors to environmental alarms—creating a seamless protective shield. The instant a sensor is triggered, whether by an opened window, unexpected movement, or tampering, the system reacts: a piercing 85dB siren deters intruders while instant, actionable alerts are sent directly to your smartphone via the Tuya Smart app. You stay informed of critical events in real time, no matter where you are.

Intuitive Smart Control & Connectivity

Powered by the industry-leading Tuya Smart platform, our system delivers lightning-fast, stable global connectivity for reliable command and alert delivery. Gain complete control from your pocket with the intuitive Tuya app: arm or disarm with a tap, check real-time sensor status, review event history, and customize alerts. For ultimate convenience, seamless integration with Google Assistant enables hands-free voice control. Simply say, “Hey Google, arm my home alarm,” and consider it done.

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	WIP-AK004

Minimum Order Quantity:	One Carton
