| Name: | Home Security Alarm System | Voice Control: | Support Alexa & Google Assistant |
|---|---|---|---|
| Supported Zones: | Up To 100 Wireless Zones And 3 Wired Zones | Alarm Volume: | 110dB |
| Accessories Frequency: | 433mHz | Backup Battery: | 3.7V, 500mAh |
| Connectivity: | Wifi+2G | App: | Tuya |
| Highlight: | 2G Home Security Alarm System,Home Security Alarm System OEM,ODM Tuya Alarm System |
||
Tuya Home Security Alarm System with PIR Motion Sensor Door Window Contact Remote Control
Product Introduction:
This all-in-one WiFi GSM alarm system, powered by Tuya, delivers reliable home and business protection with seamless smart connectivity. It integrates with Amazon Alexa and Google Assistant for voice control, making it easy to fit into modern smart home ecosystems. The kit includes a central alarm host, PIR motion detector, door/window contact sensor, and remote controls, covering all key entry points and activity zones for comprehensive security.
What's include:

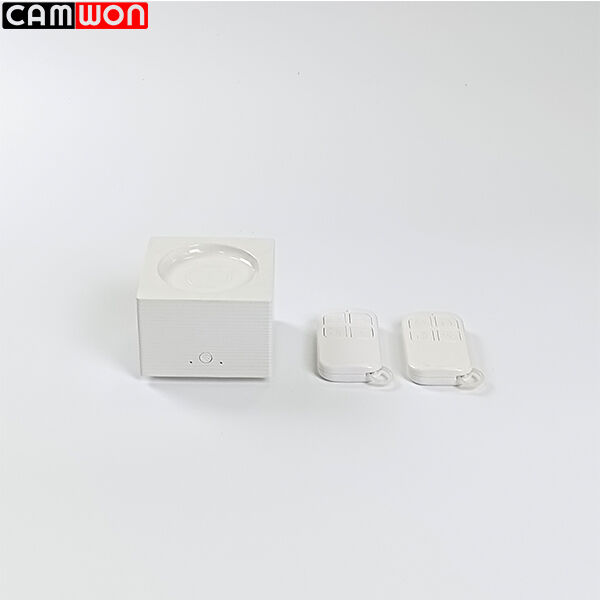

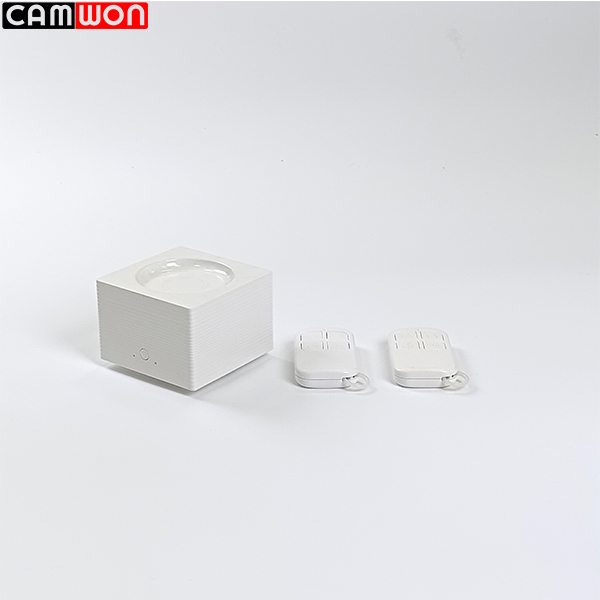

● 1 x Gateway hub
● 1 x Door sensor

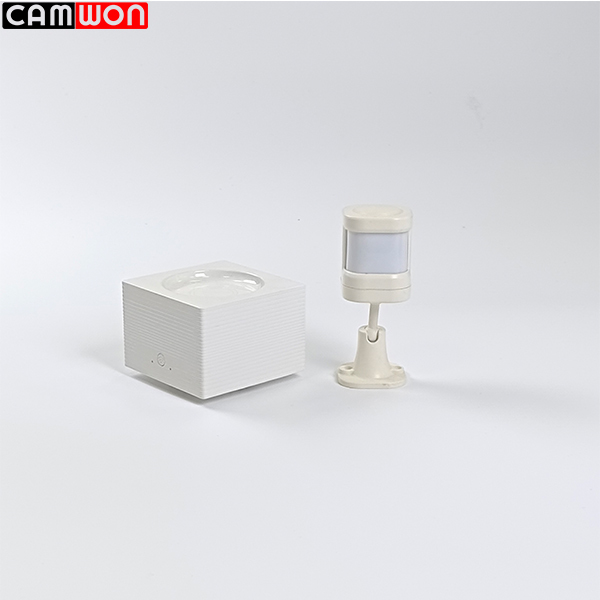

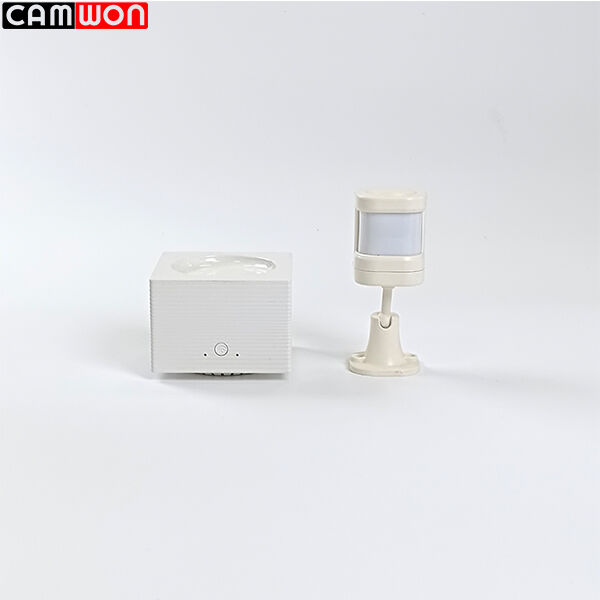

● 1 x PIR sensor
● 2 x Remote control

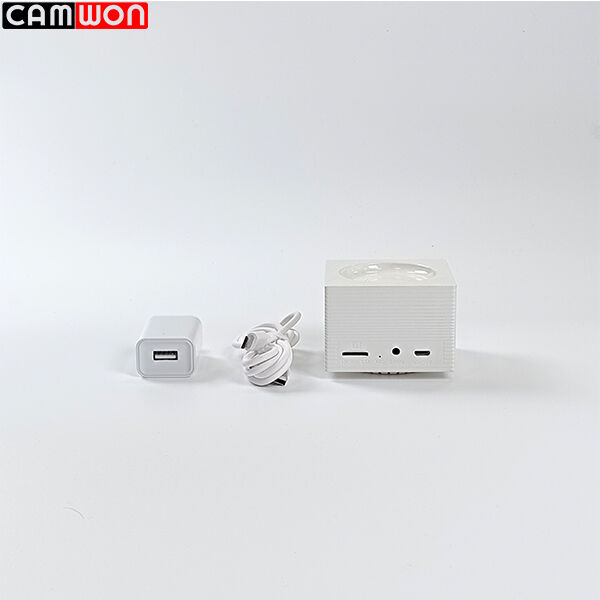

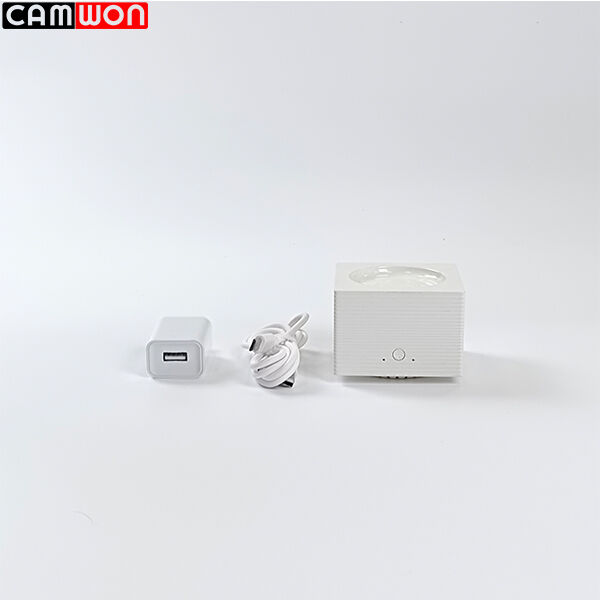

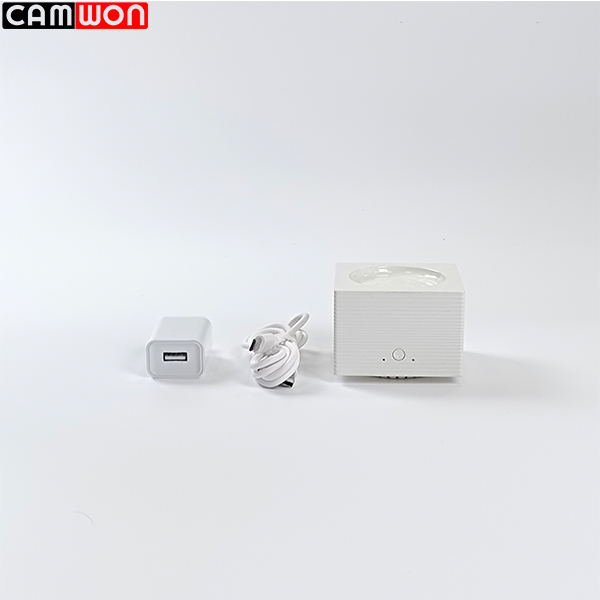

Accessory: sticker, user manual, power adaptor
Product Supports:
● OEM / ODM Support
● PID Customization
● Giftbox Customized
● Free Logo Printing
Specification Sheet:

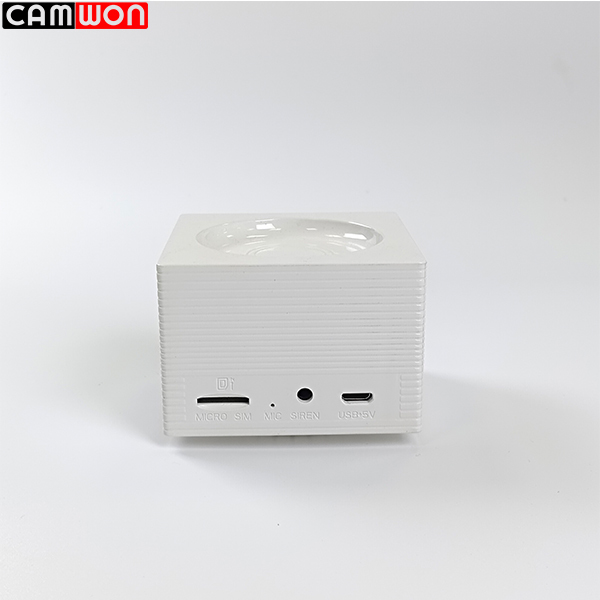

| Hub | |
| Power Supply: | Micro USB 110/220VAC to 5V, 1000mA |
| Backup Battery: | 3.7V, 500mAh Lithium Battery |
| Consumption: | <150mA@normal Siren Output: <500mA |
| Radio Frequency: | 433Mhz GSM: 850/900/1800/1900MHz |
| Wi-Fi: | IEEE802.11b/g/n |
| Operation Temperature: | -10~55℃ |
| Remote | |
| Power Supply: | DC 3V (CR2025 Lithium Battery x1) |
| Standby Current: | <5uA |
| Transmitting Distance: | <80m (Without obstacles and no Interference) |
| Radio Frequency: | 433Mhz |
| Operation Temperature: | -10~55℃ |
| Door/Window Sensor | |
| Power Supply: | DC 3V (CR2032 Lithium Battery x1) |
| Standby Current: | <8uA |
| Transmitting Distance: | <80m (Without obstacles and no Interference) |
| Radio Frequency: | 433Mhz |
| Operation Temperature: | -10~55℃ |
| PIR Motion Detector | |
| Power Supply: | DC 3V (CR2025 Lithium Battery x1) |
| Standby Current: | <15uA |
| Alarm Current: | <25mA |
| Detection Scope: | <12m/110° |
| Transmitting Distance: | <100m (Without obstacles and no Interference) |
| Radio Frequency: | 433Mhz |
| Operation Temperature: | -10~55℃ |
More Information:
![]()
The loud local alarm acts as a powerful deterrent to scare off intruders, while the multi-channel alert system keeps you informed no matter where you are. This combination of physical deterrence and remote monitoring provides comprehensive home security.
![]()
By automating security schedules, you never forget to arm or disarm the system, ensuring consistent home protection. Whether you’re at work, asleep, or on the go, the system adapts to your rhythm, making security seamless and worry-free.
![]()
Designed for inclusivity, the multilingual interface removes language barriers for international users. Whether you speak Chinese, Russian, or Romanian, the system adapts to your language preference, creating a user-friendly experience for diverse families and regions.
![]()
