| Name: | 3 Lens CCTV Camera | Resolution: | 3MP+3MP+3MP |
|---|---|---|---|
| Lens: | 3.6mm+3.6mm+3.6mm | Night Vision: | Infrared & Color Night Vision |
| Night Vision Range: | Up To 20 Meters | Human Tracking: | Support |
| Reset Buttom: | Support | Storage: | TF Card & Cloud Storage |
| Highlight: | 9MP 3 Lens CCTV Camera,8x Zoom Waterproof Security Camera,Waterproof Security Camera 9MP |
||

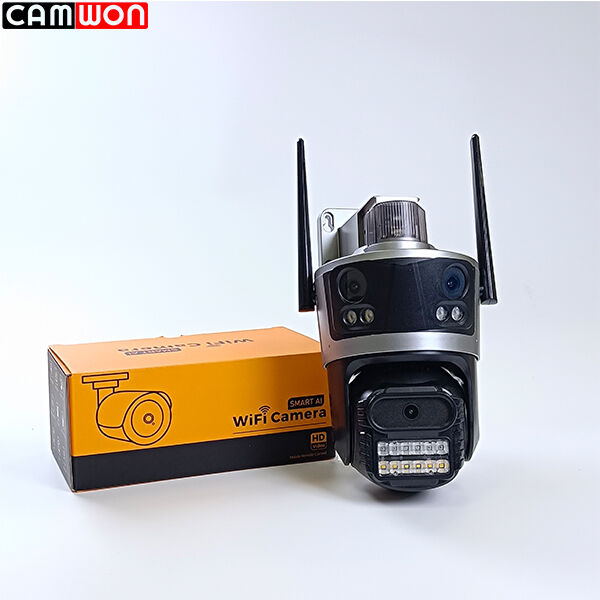

3 Lens 3 Screens 9MP Wifi Ptz 8x zoom Camera Waterproof Security Camera CCTV Camera
Product Supports:
● OEM / ODM Support
● Giftbox Customized
● Free Logo Printing
Specification
| Master control | 2*Dual-core 32-bit DSP (XM650V200) | |
| Sensor | 2*1/3 "high performance CMOS sensor +1*1/2.9" high performance CMOS sensor | |
| Minimum illumination | Color:0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black and white:0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
| Shutter | 1/50 (1/60) second to 1/10000 second | |
| Focal distance | Pan tilt: 3.6MM/Left bullet: 3.6MM/Right bullet: 3.6MM | |
| Noise reduction | Support 2D/3D noise reduction | |
| Video format | H.265AI | |
| Resolving power | Ball machine: Main stream: 2560* 1920@12fps ; Sub stream: 800* 448@12fps Gun mechanism one: Main stream: 1920* 1080@12fps ; Sub stream: 640* 360@12fps Gun Machine 2: Main Stream: 1920* 1080@12fps ; Sub stream: 640* 360@12fps |
|
| Frame rate | 12 fps | |
| Intelligent analysis | Support human shape detection | |
| Tracking function | Support human shape tracking | |
| Light source | Pan tilt: 4 infrared lights + 6 white light lights Left bullet: 2 infrared lights + 2 white light lights Right bullet: 2 infrared lights + 2 white light lights |
|
| Light mode | Starlight full color/infrared night vision/dual light warning | |
| Two-way voice | Support | |
| Cloud storage | Support | |
| Support Agreement | Support NETIP protocol,support bluetooth distribution network | |
| Network interface | 10M/100M adaptive Ethernet port | |
| Storage interface | 8-512G TF card storage | |
| Reset key interface | Support one-click recovery | |
| Wireless standard | IEEE802.11b, 802.11g, 802.11n | |
| Frequency range | 2.4 GHz ~ 2.4835 GHz | |
| Power waste | 24W | |
| Color box size | 248*153*147mm | |
| Temperature | -10℃~60℃, humidity less than 90% [no condensation] | |
| Power Supply | DC 12V ± 10% | |
| Single gross weight | Single weight :0.9kg Carton size :551.4*47.4*60.8CM, FCL weight :21kg Minimum packing :24Pcs/ box |
|
This security camera supports three flexible connection methods to ensure stable and reliable surveillance at all times:
WiFi connection for wireless setup and easy remote access
Bluetooth pairing for quick and convenient device configuration
Wired Ethernet connection to provide ultra-stable transmission in areas with weak wireless signal
It can intelligently detect moving human figures, automatically follow their motion trajectory in real time, and adjust the PTZ angle synchronously to keep the target in the frame at all times.This greatly improves monitoring efficiency and ensures no important movement is missed, providing reliable and proactive security protection.
