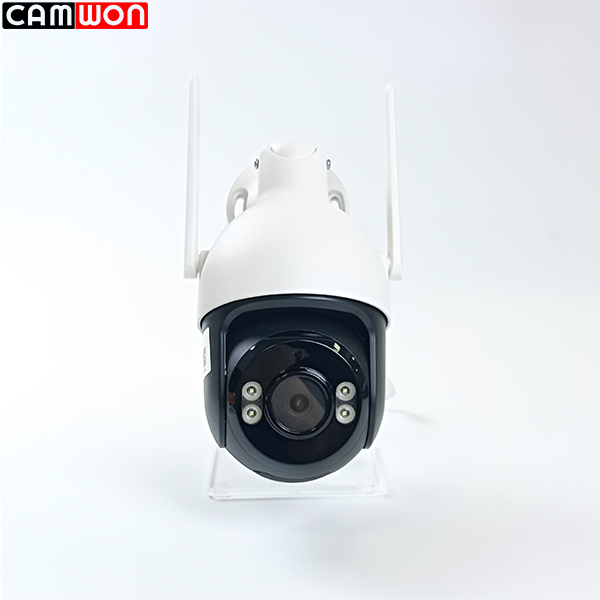

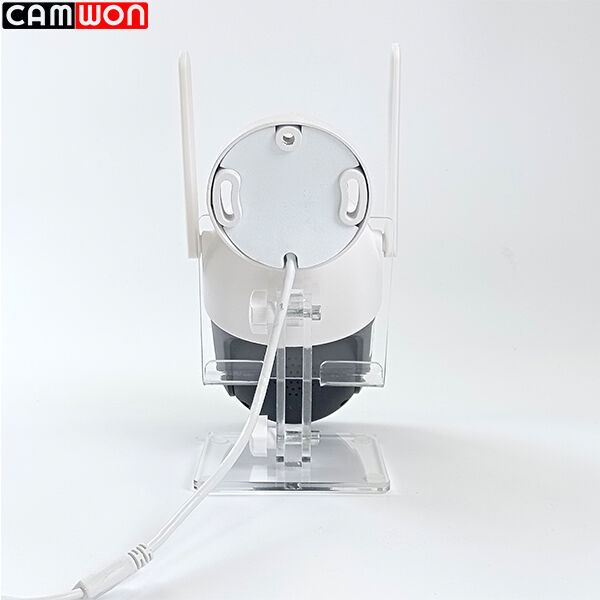

High Speed Dome Camera 360 Degree PTZ Camera 5X Optical Zoom Outdoor Dome Camera

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: WIP-CP500DK
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: 5MP 5X PTZ Camera Resolution: 5MP
Lens: 5X Optical Zoom (2.7-13.5MM) Night Vision: Infrared & Color Night Vision
Night Vision Range: Up To 60 Meters Human Detection: Support
Auto Tracking: Support Power: DC 12V
Highlight:

5x outdoor wifi camera

,

5x outdoor bullet wifi camera

,

optical outdoor wifi camera


Product Description

High Speed Dome Camera 360 Degree PTZ Camera 5X Optical Zoom Outdoor Dome Camera


Resolution: 5MP
Lens: 5X Optical Zoom (2.7-13.5mm)
AI Human Detection
Support 2.4GHz & 5GHz, hotpot, bluetooth
RJ45 port, ONVIF support, CMS surveillance
Night Vision: 20m (IR+White Lights)
Rotation angle: level 0°-355°, vertical 0°-90°
Audio: Two-way Audio
Local storage: Up to 128G micro SD
Material: Full Metal Housing, Waterproof IP66
Alarm: Push alert via app, FTP, Email
Power: DC12V


Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing



Specification

Sensor 1/2.8" SONY IMX335 CMOS  GK7205V300
Megapixel 5MP
Lens 5X optical zoom (2.7-13.5MM)
Day/Night Function Automatic IR-CUT
Video Compression Format H.265 (Standard Human Detection)
Dual Stream Supported
Image Resolution Primary Stream: 2560x1920 or 2560x1440; Secondary Stream: 800x600 or 800x448
Video Frame Rate 12.5fps (PAL), 12.5fps (NTSC)
Video Bitrate 32Kbps to 6Mbps
Night Vision 4 LEDs, Default Dual-Light Intelligent Switching
Night Vision Range 30-60 meters
Rotation 355° Horizontal, 90° Vertical
Network Protocols TCP/IP, UDP/IP, HTTP, ICMP, FTP, Email, Telnet, etc.
Motion Detection Configurable Sensitivity: 0-100 and 4 Detection Zones
ONVIF Supports ONVIF 2.4
IE Application Built-in web server allows users to browse and control the device directly from a browser
Mobile monitoring Supports iOS and Android operating systems.
Dynamic DNS Supports LAN and Internet
Connection Supports AP, Wi-Fi, and wired connections
Wi-Fi Supports dual-band Wi-Fi + Bluetooth
Audio Supports intercom
TF Card Supports 128GB TF cards
Other Features Support human detection, auto tracking
User Management Provides multi-user hierarchical permission management, allowing multiple users to access the device simultaneously.
Network Port 1 RJ45, 10/100M Ethernet port
Power Supply DC 12V 2A
Operating Temperature and Humidity 0-55°C, 10-95%


WIP-CP500DK is equipped with 5x optical zoom, allowing you to clearly capture distant objects without losing image quality. It supports smooth pan, tilt and zoom control, so you can easily monitor a wide area and adjust the view remotely. The optical zoom ensures sharp, clear footage even when magnified, making it ideal for long-distance monitoring and detailed observation.

High Speed Dome Camera 360 Degree PTZ Camera 5X Optical Zoom Outdoor Dome Camera  0


This PTZ camera features three professional night vision modes to adapt to different monitoring environments:
Infrared night vision: Provides clear black-and-white video in total darkness, with long-distance visibility.
Full-color night vision: Uses bright lights to capture vivid color footage even at night, ensuring clear details.
Smart dual-light mode: Automatically switches once detected human motion between infrared and white light based on ambient light, balancing security and image clarity.

High Speed Dome Camera 360 Degree PTZ Camera 5X Optical Zoom Outdoor Dome Camera  1


This PTZ camera is equipped with intelligent human detection and auto-tracking.It can accurately identify moving human figures and automatically filter out false alarms from animals, leaves or other objects.Once a person is detected, the camera will follow their movement in real time by adjusting its pan, tilt and zoom, ensuring the target stays centered in the frame.This greatly improves monitoring efficiency and reduces unnecessary alerts.

High Speed Dome Camera 360 Degree PTZ Camera 5X Optical Zoom Outdoor Dome Camera  2
