12V Smart Home WiFi Camera 4MP / 5MP Wireless CCTV Dome Camera With Bluetooth Connection

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: WIP-SD500AA
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: Smart Home WiFi Camera Lens: 3.6mm
Resolution: 4MP/5MP Power: DC12V
Night Vision: 20m Local Storage: Up To 128G Micro SD
Material: Full Metal Housing App: Camhi
Highlight:

12V Smart Home WiFi Camera

,

Smart Home WiFi Camera 4MP

,

Bluetooth Wireless CCTV Dome Camera


Product Description

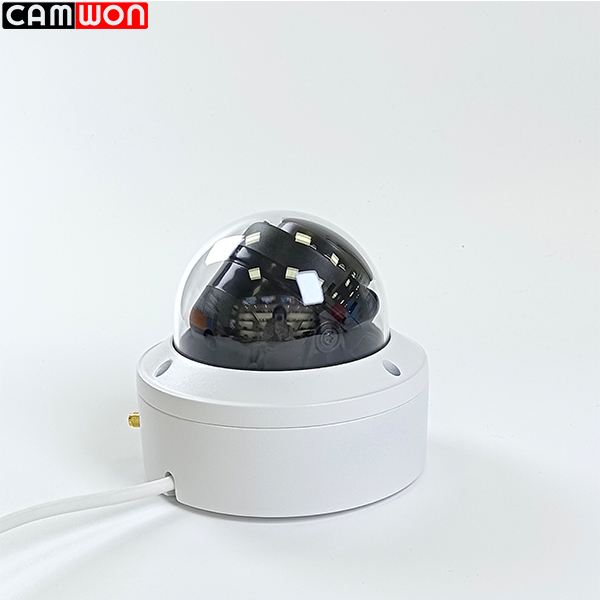

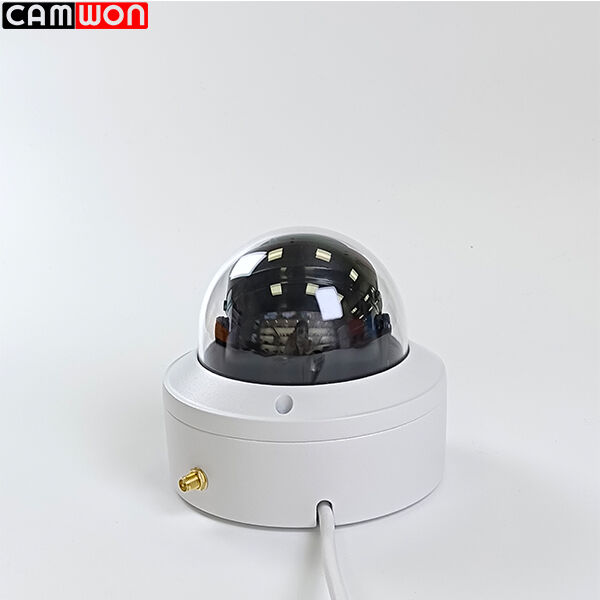

Smart Home Wifi Wireless CCTV Dome Outdoor Camera with Bluetooth Connection



Product Introduction:

Equipped with AI human detection, the camera intelligently distinguishes people from other motion, reducing false alarms. It supports both 2.4GHz and 5GHz Wi-Fi, plus Bluetooth and hotspot for flexible network setup — making installation easy and connection stable in any environment.



Features:

Resolution: 5Mp
Lens: 3.6mm
AI Human detection
Support 2.4GHz & 5GHz, hotpot, bluetooth
Built-in Two way audio
RJ45 port, ONVIF support, CMS surveillance
Night Vision: 20m (12pcs IR Array);
Support up to 128G TF card storage;
Alarm: Push alert via app, FTP, Email
Power: DC12V



What's included:
1 x Camera
1 x User Manual
1 x QC Pass Card
1 x Screw Bag



Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing



Specification Sheet:

Sensor 1/2.7" GC5603 Ingenic T41NQ
Pixel 5.0MP
Day/Night Function Auto IR-CUT
Video Compression Format H.265
Dual Stream Supported
Image Resolution Main stream 2880x1620, Sub stream 800x448
Video Frame Rate 12.5fps (PAL), 12.5fps (NTSC)
Video Bitrate 32Kbps ~ 6Mbps
Night Vision Starlight IR: 30m
Network Protocol TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET, etc.
Motion Detection Adjustable sensitivity 0-100; supports 4 detection zones
ONVIF Protocol ONVIF 2.4 Supported
IE Application Built-in Web Server, accessible via browser for viewing and control
Mobile Monitoring Supports iOS and Android
Dynamic DNS Supported for LAN and Internet
4G Signal Supported
4G Bands (EU CTA4) L716-EU
LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
Audio Intercom Supported
TF Card Storage Supports up to 128GB TF card
Other Features Human, Vehicle, Pet Detection Supported
User Management Multi-user permission management, supports simultaneous access
Network Interface 1x RJ45, 10/100M Ethernet
Module Power Consumption DC 12V 2A, 1.8W
Operating Temperature & Humidity 0°C ~ 55°C, 10% ~ 95% RH



More Information:

Compatible with the Camhi/Camhipro mobile app, this camera lets you access live feeds and recorded footage from anywhere. You can view multiple camera streams at once, adjust settings, and stay connected to your property with just a few taps on your smartphone.

12V Smart Home WiFi Camera 4MP / 5MP Wireless CCTV Dome Camera With Bluetooth Connection 0



Once a human is detected, the camera activates auto-tracking mode, smoothly following the target’s every movement. It keeps the intruder centered in the frame, ensuring continuous, clear footage of suspicious activity for reliable evidence collection.

12V Smart Home WiFi Camera 4MP / 5MP Wireless CCTV Dome Camera With Bluetooth Connection 1



Equipped with high-fidelity speakers and sensitive microphones, the two-way audio delivers crystal-clear sound for both speaking and listening. The visible audio waveform confirms stable transmission, ensuring every word is heard without distortion or delay.

12V Smart Home WiFi Camera 4MP / 5MP Wireless CCTV Dome Camera With Bluetooth Connection 2
