OEM / ODM Outdoor WiFi Wireless Camera 5MP Network CCTV Camera

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: WIP-SB500AA
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: Outdoor WiFi Wireless Camera Resolution: 5MP
Lens: 3.6mm Night Vision: Infrared & Color Night Vision
Night Vision Range: Up To 30 Meters Lights: 4 Dual-core Lights
Housing: Plastic POE: Optional
Highlight:

OEM Outdoor WiFi Wireless Camera

,

ODM Outdoor WiFi Wireless Camera

,

5MP Network CCTV Camera


Product Description

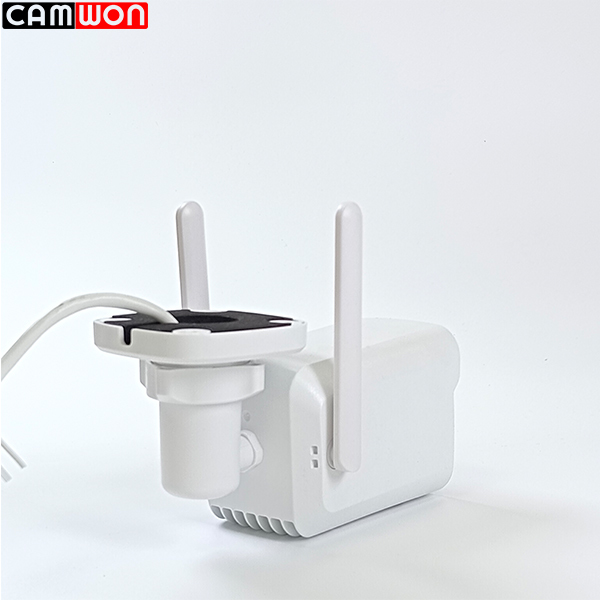

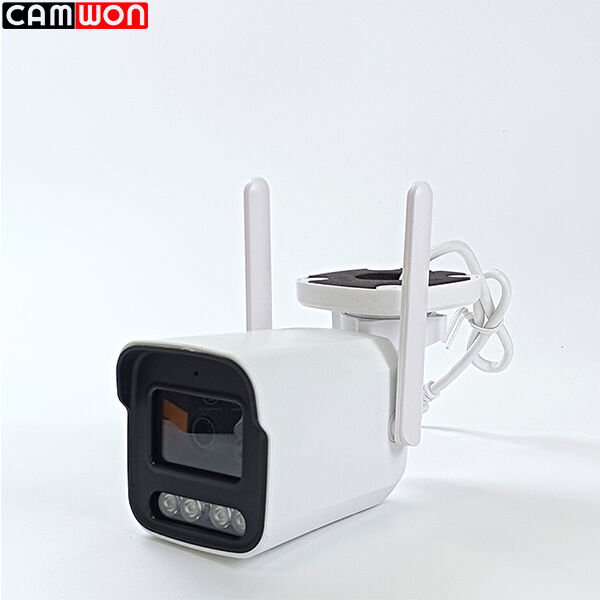

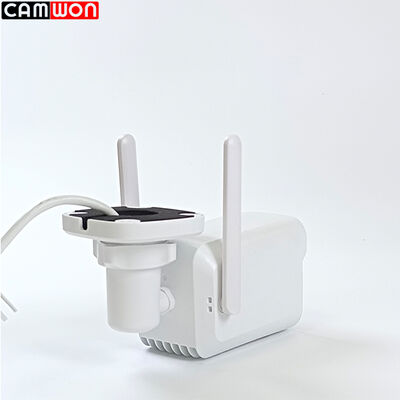

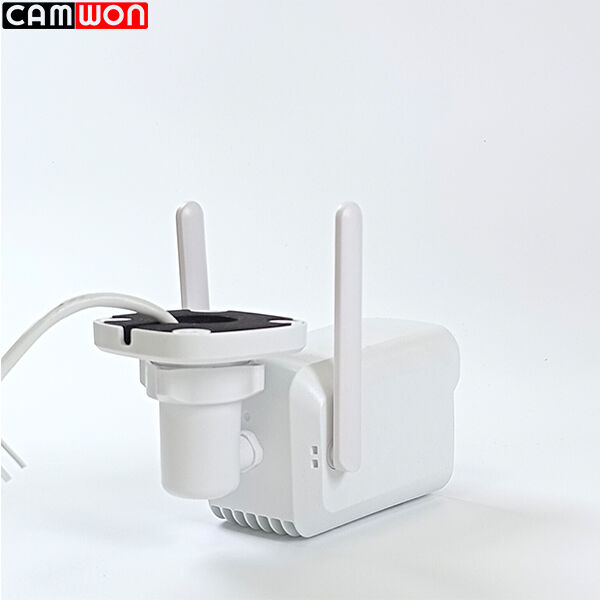

5MP Outdoor WiFi Wireless Bullet IP Camera Surveillance Security Network CCTV Camera


1. Night Vision Mode: Full Color/Intelligent Alert/Starlight Infrared
2. High-Definition Image Quality: 5MP resolution, clear and detailed images, high-definition 5.0MP 3.6mm lens
3. Audio: Supports two-way voice intercom
4. Connectivity: Supports AP/Wi-Fi/Ethernet connection methods
5. App: Supports remote monitoring via mobile app (iOS, Android), app: iCSEE
6. Storage Management: Supports local TF card storage, maximum support 128GB, automatic loop overwriting when full
7. Intelligent Analysis: Human detection
8. Protocol: Supports ONVIF
9. Product Features: IP66 waterproof, all-plastic shell.



Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing



Specification

System Architecture Embedded RTOS design, dual-core 32-bit DSP, pure hardware compression, watchdog timer, GK7205V500
Sensor 5-megapixel 1/3" black CMOS sensor, AI401
Resolution 5.0MP
Video processing H.265AI encoding, dual stream, AVI format; bitrate adjustable from 0.1M to 10Mpbs; frame rate adjustable from 1 to 30 frames per second
Minimum illumination Color: 0.0001Lux @(F1.2, AGC ON); 0 Lux with IR
Black and white: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Image output Main stream: 2880*1616@12fps; Sub-stream: 800*448@12fps
Shutter speed 1/50(1/60)s to 1/10,000s
Lens 3.6mm
Day/night mode Supports IR-CUT
Noise reduction Supports 2D/3D noise reduction
Wide dynamic range Supported
Night mode Warm light full-color/intelligent alert/starlight infrared, night vision distance 30 meters
Light 4 dual-core lights
Connectivity Supports AP hotspot/Wi-Fi pairing/wired network
Reset button Supported
Storage Cloud storage + TF local recording (maximum support 128GB)
Reliability Full lightning protection, meets national and international standards; stable and reliable 7*24 hours 65℃ high temperature test (including whole unit testing)
Intelligent Analysis Supports human detection, supports customized intelligent functions
Business Functions Supports remote monitoring via mobile client; supports message push after human detection alarm; supports MJPEG image capture;
ONVIF  Supported
Mobile monitoring Supported
Power supply DC12V





This camera is equipped with advanced AI Human Detection technology, which intelligently analyzes and identifies human figures in real time. Unlike traditional motion detection that is easily triggered by falling leaves, moving animals, light changes or other irrelevant movements, our AI algorithm only sends alerts when a human body is detected, effectively reducing false alarms and ensuring you only receive important notifications.
Once a human is identified in the monitoring area, the camera will immediately send an instant alert to your mobile device, allowing you to respond quickly to potential security risks. This smart function greatly improves monitoring efficiency and provides more accurate and reliable protection for your home, yard, shop or other outdoor spaces.

OEM / ODM Outdoor WiFi Wireless Camera 5MP Network CCTV Camera 0



This security camera features advanced infrared & color night vision technology to deliver clear footage day and night. In low-light environments, it automatically switches to infrared night vision for sharp black-and-white video with excellent visibility. When there is ambient light, it provides vibrant full-color night vision so you can see details clearly even in the dark. This dual night vision system ensures reliable 24/7 monitoring, letting you identify people, vehicles and objects clearly no matter how dark the environment is.

OEM / ODM Outdoor WiFi Wireless Camera 5MP Network CCTV Camera 1
