| Name: | 4 Lens Outdoor WiFi Camera | Resolution: | 1920*1080 For Each Lens |
|---|---|---|---|
| Digital Zoom: | 12X | Auto Tracking: | Support |
| Zoom Tracking: | Support | RJ45: | Support |
| App: | HiEasy | ||
| Highlight: | HiEasy WIFI Camera,4 Lens 8MP Camera,Home Security PTZ 360 Panoramic Camera |
||

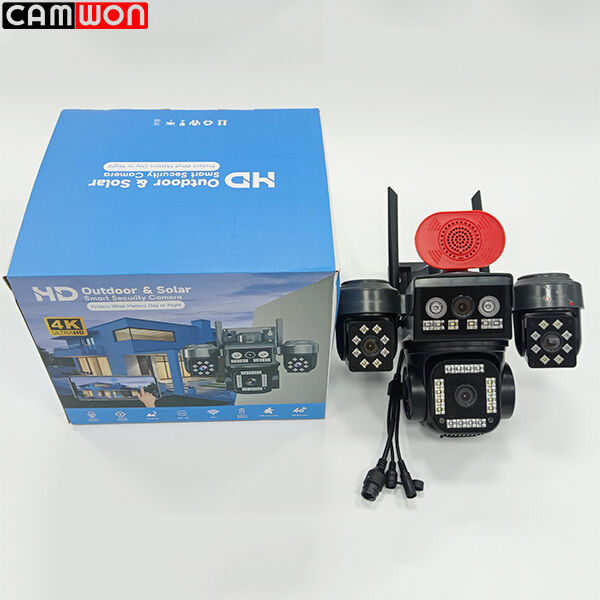

HiEasy Multi Sensor 4 Lens Screen 8MP WIFI Home Security PTZ 360 Panoramic Camera
Looking for an all-in-one security camera that covers more areas and offers smarter monitoring? Our 4 Lens 4 Screen PTZ AI Camera is your perfect solution for home and business safety! Unlike traditional single-lens cameras that only monitor one view, this upgraded camera comes with 4 lenses and 4 independent screens, letting you keep an eye on four different corners of your property at the same time with zero blind spots. Powered by smart AI human tracking technology, it can automatically detect human activity and follow every movement closely, so you’ll never miss any suspicious behavior. The premium 12X zoom tracking function allows you to zoom in on distant moving targets instantly, capturing ultra-clear detailed footage without losing focus. You can also manually adjust the angles of the side lenses freely to customize your monitoring coverage according to your actual needs. With the smart auto patrol mode, the camera automatically scans the surrounding area round the clock for effortless full-time protection. Moreover, it supports ONVIF protocol for easy connection with NVR systems, bringing you stable, easy-to-install and easy-to-manage smart surveillance experience.
Featuring innovative 4‑lens and 4‑screen synchronous display, this security camera enables multi‑area concurrent monitoring with a single unit. Four independent image sensors output four real‑time video streams, effectively eliminating monitoring dead zones for residential, retail, warehouse and campus scenarios. Side lenses support manual angle adjustment to adapt to diverse installation environments. Compatible with standard ONVIF protocol, the camera can be seamlessly integrated into existing NVR surveillance systems for unified storage and management. Reduce hardware investment while expanding overall monitoring coverage.
![]()
● 4 Lens 4 Screen
● Auto Patrol
● AI Human Tracking
● Auto Zoom Tracking
● 12X Digital Zoom
● Adjustable Side Lenses
Product Supports:
● OEM / ODM Support
● Giftbox Customized
● Free Logo Printing
Specification
| Product | Type | Four lens Bullet/PT module | ||
| Main processor | H610 | |||
| System | Operating system | Embedded Linux operation system | ||
| Sensor | Four lens 1/3.2 CMOS Sensor | |||
| Video coding standard | H.265+ | |||
| System standard | PAL 50HZ/NTSC 60HZ | |||
| Effective resolution | 2MP(1920*1080P*4) | |||
| Video frame rate | Self-adaption | |||
| Video stream | 135kbps-2048kbps | |||
| Minimum illumination | Day mode 1Lux, night vision mode 0.01Lux | |||
| Video | Day and night mode | Auto | ||
| Capture function | support | |||
| Coding standard | G.711U | |||
| Audio input | External microphone MIC, analog MIC with S/N ratio of 42DB | |||
| Audio | Audio output | External 8Ω/MAX 1.5W speaker | ||
| Voice Call | With AI echo cancellation, support full-duplex voice calls | |||
| Record mode | alarm recording, timing recording | |||
| Record | Record storage | TF card/PC/NVR | ||
| Cloud storage | Support | |||
| Alarm detection | With 1T computing power, accurate human detection, detection distance up to 30 meters | |||
| Sound and light alarm | Support, when equipped with dual light board, supports sound and light alarm | |||
| Alarm Voice | Support text-to-speech and customized voice functions | |||
| Alarm linkage | Video recording and image capture | |||
| PTZ | Preset position | Support 6 preset position settings | ||
| Tracking Function | Support human tracking | |||
| Night light | Night light function | Support night light function | ||
| Network | RJ45 | HTTP,TCP/IP,IPV4,UPNP,RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, IP Search(Support P6S IP camera, DVR, NVS and etc.) | ||
| WIFI-6 | IEEE 802.11b/g/n/ax, 802.11n 20MHz/40MHz bandwidth, support 802.11ax 20MHz bandwidth |
|||
| BLE | Support Bluetooth quick network configuration function | |||
| NearLink | Support SLE 1.0 | |||
| Protocol | P6S, Onvif | |||
| Others | TF card capacity | Maximum support 256GB(Universal FAT32 format) | ||
| Operating Voltage | Standard DC-12V | |||
| Working current | 185mA ±10mA | |||
| Working environment | -20℃ --- +55℃ | |||
| Main board | 52mm*38mm | |||
| Sub-board | 38*38mm (suitable for bullet/PTZ products)/28*28mm (suitable for dual lens Pan-tilt machine products) | |||
| ICR/LENS hole distance | 20mmm | |||
