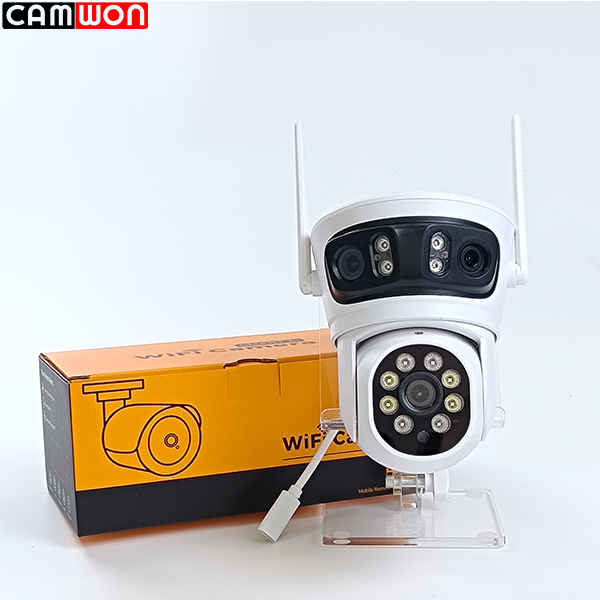

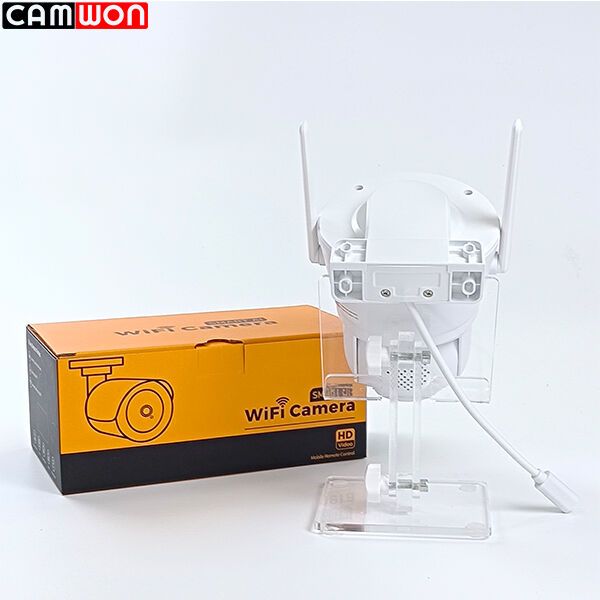

OEM ODM Tuya Wireless WiFi PTZ Camera 3 Lens 3 Screen for Outdoor Home Security Surveillance
Product Introduction:
Supporting seamless WiFi connectivity, the camera allows for easy installation and remote access via a dedicated mobile app. The built-in two-way audio system enables clear, real-time communication, letting you listen and speak directly from your smartphone. Whether it’s greeting a visitor, warning an unwanted guest, or speaking to a family member, the audio functionality adds an interactive layer to your home security setup, bridging the gap between monitoring and engagement.
Features:
● 3-Lens, 2MP + 2MP+ 2MP,
● 3-Screen
● Auto Tracking Motion
● Built-in Siren
● IR Lights + White Lights
● Night vision: Up to 20 meters
● Audio: Two-way Audio
● Support Local SD Card & Cloud Storage
● Power: 5V DC
What's include:
● 1 x Camera
● 1 x Power Cable
● 1 x Adapter
● 1 x Manual
● 1 x Screw bag
Product Supports:
● OEM / ODM Support
● PID Customization
● Giftbox Customized
● Free Logo Printing
Specification Sheet:
| APP |
Tuya / Smart Life |
| Processor: |
XM535D2 |
| Image sensor: |
1/3″ HD CMOS 2 megapixel CMOS sensor(SC2331) |
| Manual video format: |
MP4(1920*3240, storage in mobile) |
| Video compression standard: |
H.264 |
| Video frame rate: |
Max 25 frame |
| Video playback mode: |
Mobile client |
| Audio input and output: |
Input: built in microphone; output: built-in speaker |
| Built in lens-ballhead camera: |
4MM |
| Built in lens-gun camera: |
4MM*2 |
| Focusing method: |
Manual |
| Infrared night vision effect: |
8pcs ir lights,night vision 10 meters,power consumption 1.8W |
| White light effect: |
8 white light lamps, lighting, power consumption 1.8W |
| PTZ control: |
Horizontal rotation 270 degrees vertical 90 degrees |
| Local storage: |
Support MicroSD inserted 128GB card, support 24 hours of video or video alarm |
| Cloud Storage: |
Support |
| Support multiple protocols: |
HTTP,HTPPS,TCP,IPV4,UDP,ICMP,DHCP,DNS,ONVIF |
| Wifi: |
Support IEEE 802.11b/g/n |
| Motion detection: |
Support |
| Video method: |
Continuous video/Event video |
| Alarm action: |
Mobile client push screenshot |
| Firmware upgrade: |
Remote upgrade can be through the network |
| Multi-user sharing: |
Family share to 20 users |
| Supply voltage: |
5V1.5A |
| Working temperature: |
-30 degrees C ~40 C |
| Working environment: |
Outdoor |
| Product size: |
170*145*125MM |
| Packing size: |
198*137*145MM |
| Net weight: |
430g |
| Gross weight/pc: |
530g |
| Carton size: |
72.5*42*46.5CM(30pcs/Carton) |
| Gross weight/carton: |
21Kg(Roughly estimated) |
| Packaging and accessories: |
1 Color box |
| 2 Inner support |
| 3 Screw package |
| 4 Power supply |
| 5 Instructions |
More Information:
Built with robust outdoor functionality, it offers comprehensive pan-tilt coverage with a 355° pan range and 90° tilt range, allowing the camera to sweep across wide areas for detailed monitoring. Additionally, it boasts an IP65 waterproof rating, ensuring it can withstand harsh weather conditions such as heavy rain, snow, or extreme heat, making it a durable and reliable choice for year-round outdoor protection.
The third movable PTZ lens offers flexible, adjustable monitoring, allowing you to pan, tilt, and zoom to track moving targets, focus on specific areas of interest, and get close-up views of people or activities, so you never miss any important event.
The Color Night Vision mode utilizes high-brightness fill lights to illuminate the scene at night, capturing clear and vivid colored footage that allows you to easily distinguish details, identify people, and see every aspect of your property with natural visual clarity.
This auto tracking technology eliminates the need for manual pan and tilt operations, making it ideal for monitoring high-traffic areas like home entrances, driveways, and yards. It ensures you can always get a complete record of moving subjects, whether you are keeping an eye on your kids playing outdoors or securing your property against unauthorized access.
