Detail Information

Name:	WiFi PTZ Dome Camera	Resolution:	5MP
Lens:	2.7-13.5mm 5X Optical Zoom Auto Focus Lens	Night Vision:	Infrared Night Vision
Night Vision Range:	Up To 30 Meters	Rotation:	Horizon: 350°, Vertical: 90°
Human Detection:	Support	Preset Point:	8pcs
Highlight:	5MP Infrared Tracking Camera , Infrared Tracking Camera 2.4G , 5G Human Detection Security Camera

Product Description

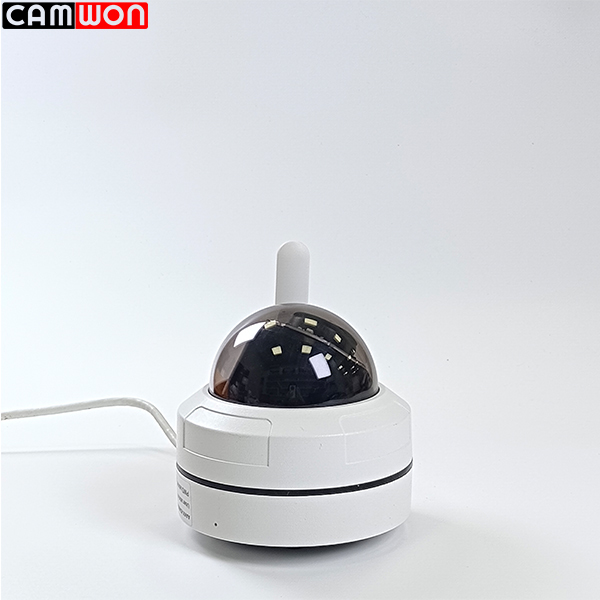

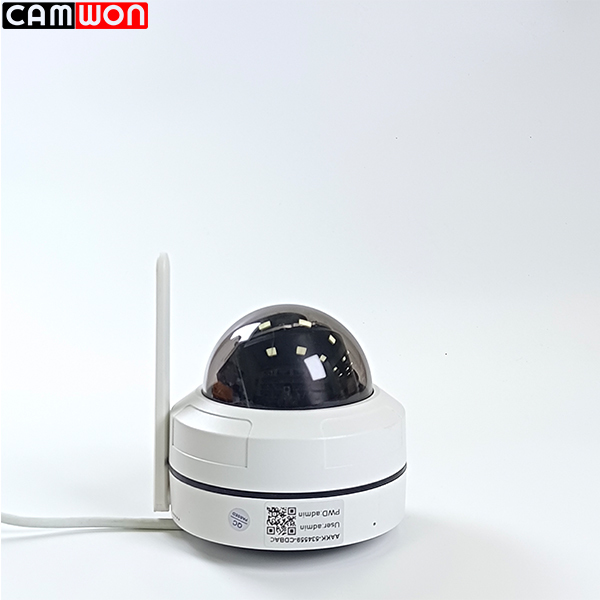

OEM 5MP Wifi IR Tracking Dome Camera 2.4G/5G Wifi IP66 Metal Wifi Camera Human Detection

This OEM 5MP WiFi IR tracking dome camera delivers sharp 5MP Super HD surveillance with dual-band 2.4G/5G WiFi for stable, high-speed wireless connectivity. Built with a rugged metal housing and IP66 weatherproof rating, it performs reliably in outdoor and harsh indoor environments year-round.

Equipped with smart IR night vision and auto human tracking, the camera clearly captures details day and night, automatically follows moving human targets, and sends real-time alerts via mobile app. Advanced AI human detection effectively reduces false alarms from pets, leaves, or vehicles, ensuring only meaningful events trigger notifications.

Supporting remote live view, playback, and two-way audio, it’s ideal for home, store, warehouse, and facility security. Durable, easy to install, and fully customizable for OEM branding, this camera combines high performance with cost-effective versatility for global security projects.

Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing

Specification

Video	Sensor	5.0 megapixel 1/2.8" SONY335 low lux CMOS
	Video resolution	Main stream: 2560x1920@15fps, 2560x1440@15fps Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps

	Video compression	H.264/H.265
	Lens	2.7-13.5mm 5X optical zoom auto focus lens
	View angle	108.1°- 30.3°
	Night vision	2pcs array infrared LEDs, night vision distance 30m
Audio	Audio compression	G.726/G.711
	Audio code rate	8Kbps, 16bi
	Audio input/output	Built-in MIC, support voice monitor
Alarm	Motion detection	Can set 4 independent detection areas, can set the sensitivity of 1-100
	Humanoid detection	Support, can be used in conjunction with motion detection to make the alarm more accurate
	Alarm linkage	Alarm mobile phone message push, Alarm recording or capture to Micro SD card, Alarm trigger sound alarm, Alarm capture sent to Email, Alarm recording or capture saved to FTP




	Alarm time	All day or manually customize alarm time period
Interface	Power	5.5*2.1mm power interface
	Ethernet	RJ45 Ethernet interface
	Reset button	Support, press for 5 seconds to reset the camera
	Micro SD card	Support up to 128G micro SD card
	Wireless	IEEE 802.11 b/g/n
	Onvif protocol	Support ONVIF 2.4(backward compatible)
PTZ	Rotation angle	Horizon: 350°, Vertical: 90°
	Horizontal speed	12°/S
	Vertical speed	15°/S
	Preset	8 preset points
General specification	Power consumption	Day: 3W, Night: 8W
	Operating environment	Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～90%, non-condensing

	Shell material	Metal shell and plastic sheath
	Waterproof level	IP65
	Product size	113mm×113mm×113mm(L×W×H)
	Product weight	0.45kg
	Package size	148mmx148mmx148mm(L×W×H)
	Package weight	0.7kg

This dome camera features a 5X optical zoom lens, delivering clear and sharp close-up views of distant objects without image quality loss. It allows flexible adjustment of the monitoring range, enabling you to capture fine details effectively even from far away.

This dome camera supports flexible pan-tilt rotation, providing a wide monitoring range with 350° horizontal coverage and 90° vertical rotation. It allows you to remotely adjust the viewing angle freely, effectively eliminating blind spots and achieving all-round surveillance.

Tag:

Brand Name:	OEM Brand
Certification:	CE, ROHS,EN-18031, UKCA, TELEC, REACH，BSCI
Model Number:	WIP-CD500AF

Minimum Order Quantity:	One Carton
