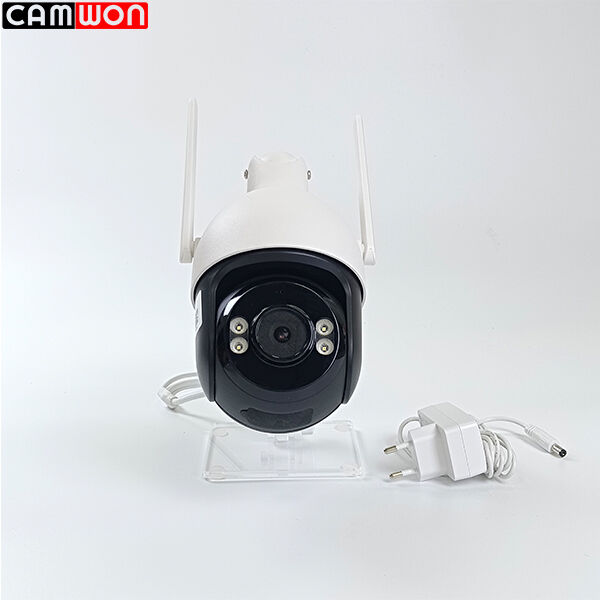

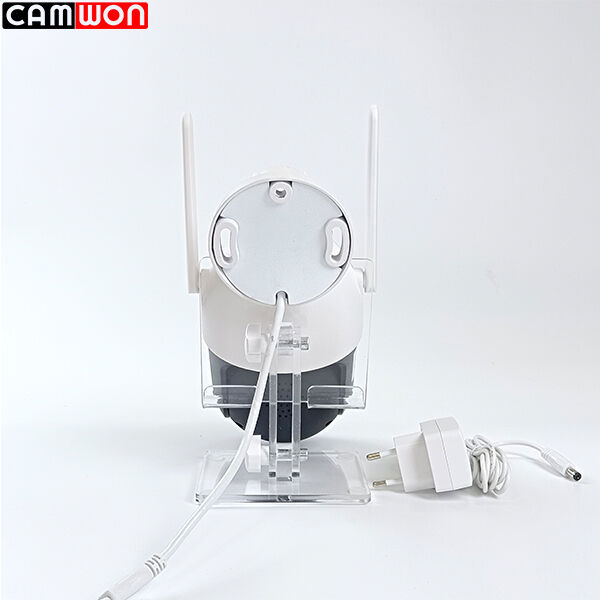

OEM Outdoor 5MP 5X Zoom Human Detection 5Ghz WiFi Auto Tracking Network PTZ IP Camera
This professional outdoor network PTZ camera delivers 5MP Super HD clarity with 5X optical zoom, supporting 5GHz WiFi for stable long‑distance transmission. Equipped with AI human detection and auto‑tracking, it automatically locks onto and follows moving targets to minimize false alerts.
IP66 weatherproof rating ensures reliable operation in rain, dust and extreme temperatures. Pan/tilt rotation provides full‑area coverage, while infrared night vision maintains clear monitoring 24/7. It supports two‑way audio, remote viewing via APP, ONVIF protocol, and local/cloud storage, making it ideal for residential, commercial and perimeter security. Custom OEM & ODM services are available to meet your branding and project needs.
● Resolution: 5MP
● Lens: 5X Optical Zoom (2.7-13.5mm)
● AI Human Detection
● Support 2.4GHz & 5GHz, hotpot, bluetooth
● RJ45 port, ONVIF support, CMS surveillance
● Night Vision: 20m (IR+White Lights)
● Rotation angle: level 0°-355°, vertical 0°-90°
● Audio: Two-way Audio
● Local storage: Up to 128G micro SD
●Material: Full Metal Housing, Waterproof IP66
● Alarm: Push alert via app, FTP, Email
● Power: DC12V
Product Supports:
● OEM / ODM Support
● Giftbox Customized
● Free Logo Printing
Specification
| Sensor |
1/2.8" SONY IMX335 CMOS GK7205V300 |
| Megapixel |
5MP |
| Lens |
5X optical zoom (2.7-13.5MM) |
| Day/Night Function |
Automatic IR-CUT |
| Video Compression Format |
H.265 (Standard Human Detection) |
| Dual Stream |
Supported |
| Image Resolution |
Primary Stream: 2560x1920 or 2560x1440; Secondary Stream: 800x600 or 800x448 |
| Video Frame Rate |
12.5fps (PAL), 12.5fps (NTSC) |
| Video Bitrate |
32Kbps to 6Mbps |
| Night Vision |
4 LEDs, Default Dual-Light Intelligent Switching |
| Night Vision Range |
30-60 meters |
| Rotation |
355° Horizontal, 90° Vertical |
| Network Protocols |
TCP/IP, UDP/IP, HTTP, ICMP, FTP, Email, Telnet, etc. |
| Motion Detection |
Configurable Sensitivity: 0-100 and 4 Detection Zones |
| ONVIF |
Supports ONVIF 2.4 |
| IE Application |
Built-in web server allows users to browse and control the device directly from a browser |
| Mobile monitoring |
Supports iOS and Android operating systems. |
| Dynamic DNS |
Supports LAN and Internet |
| Connection |
Supports AP, Wi-Fi, and wired connections |
| Wi-Fi |
Supports dual-band Wi-Fi + Bluetooth |
| Audio |
Supports intercom |
| TF Card |
Supports 128GB TF cards |
| Other Features |
Support human detection, auto tracking |
| User Management |
Provides multi-user hierarchical permission management, allowing multiple users to access the device simultaneously. |
| Network Port |
1 RJ45, 10/100M Ethernet port |
| Power Supply |
DC 12V 2A |
| Operating Temperature and Humidity |
0-55°C, 10-95% |
WIP-CP500DK is equipped with 5x optical zoom, allowing you to clearly capture distant objects without losing image quality. It supports smooth pan, tilt and zoom control, so you can easily monitor a wide area and adjust the view remotely. The optical zoom ensures sharp, clear footage even when magnified, making it ideal for long-distance monitoring and detailed observation.
This PTZ camera features three professional night vision modes to adapt to different monitoring environments:
Infrared night vision: Provides clear black-and-white video in total darkness, with long-distance visibility.
Full-color night vision: Uses bright lights to capture vivid color footage even at night, ensuring clear details.
Smart dual-light mode: Automatically switches once detected human motion between infrared and white light based on ambient light, balancing security and image clarity.
This PTZ camera is equipped with intelligent human detection and auto-tracking.It can accurately identify moving human figures and automatically filter out false alarms from animals, leaves or other objects.Once a person is detected, the camera will follow their movement in real time by adjusting its pan, tilt and zoom, ensuring the target stays centered in the frame.This greatly improves monitoring efficiency and reduces unnecessary alerts.
