20x Optical Zoom PTZ Camera 5MP / 8MP High Definition Security Camera

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: WIP-CP800CH
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: Optical Zoom PTZ Camera Audio: Dual-Way Audio
Resolution: 5MP/8MP Wifi: 2.4GHz & 5GHz
Power Adaptor: DC12V Weatherproof: IP66
Rotation Angle: Horizon: 0°~355°, Vertical: 0°~90° App: Camhi
Highlight:

20x Optical Zoom PTZ Camera

,

Optical Zoom PTZ Camera 5MP

,

8MP High Definition Security Camera


Product Description

5/8MP High Definition 20x Optical Zoom Home Security Ptz Outdoor/indoor Camera



Features:

Resolution: 5.0/8.0 Megapixel
Lens: 20X Optical Zoom (4.7-94mm)
Support 2.4GHz & 5GHz, hotpot, bluetooth
AI Human Zoom Tracking
10pcs IR & White LED Light: 80m
RJ45 port, ONVIF support, CMS surveillance
Support two way audio(built-in MIC and speakers);
Support up to 128G TF card storage;
Pan Range: 0°~360° endless; Tilt: 0°~90°
Pan Speed: 60°/sec; Tilt Speed: 30°/sec
Material: Full Metal Housing, Waterproof IP67
Power: DC12V



What's include:

1 x Camera
1 x User Manual
1 x QC Pass Card
1 x Screw Bag



Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing



Specification Sheet:

APP Camhi pro / Camhi
Video Sensor 8.0 megapixel 1/2.8" SONY307 star light CMOS
Video resolution Main stream: 4K (3840x2160)
Sub stream: 720P(1280x720)
Video compression H.264/H.265
Lens 4.7-94mm 20X optical zoom auto focus lens + 10X digital zoom
View angle 61.4°~3.6°
Night vision 8pcs IR + White LEDs, night vision distance 100m
Audio Audio compression G.726/G.711
Audio code rate 8Kbps, 16bit
Audio input Built-in MIC and speakers, support two way audio
Audio output Support, can connect speakers
Audio Audio compression G.726/G.711
Audio code rate Rate adaptive
Audio input Support, can connect the pickup and MIC
Audio output Support, can connect speakers
Alarm Motion detecting alarm Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push
Alarm recording Support Micro SD card and PC client linkage alarm recording
Storage Micro SD card Support up to 128G micro SD card
Recording mode Alarm record, timing record
Video playback Support APP, IE browser, remote client play and download the video
PTZ Rotation angle Horizon: 0°~355°, Vertical: 0°~90°
Horizontal speed 20°~ 40°/S
Vertical speed 10°~ 20°/S
Preset Support 8 preset points
General specification Power DC12V 2A
Operating environment Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing
Waterproof level IP66
Product size 190mm×130mm×235mm(L×W×H)
Product weight 1.4kg
Package size 275mmx230mmx170mm(L×W×H)
Package weight 2.0kg
Reset button Support



More Information:

This PTZ IP camera delivers 2.0 megapixel HD video for clear monitoring. It connects via WiFi and supports P2P, making remote access simple and convenient for home use.

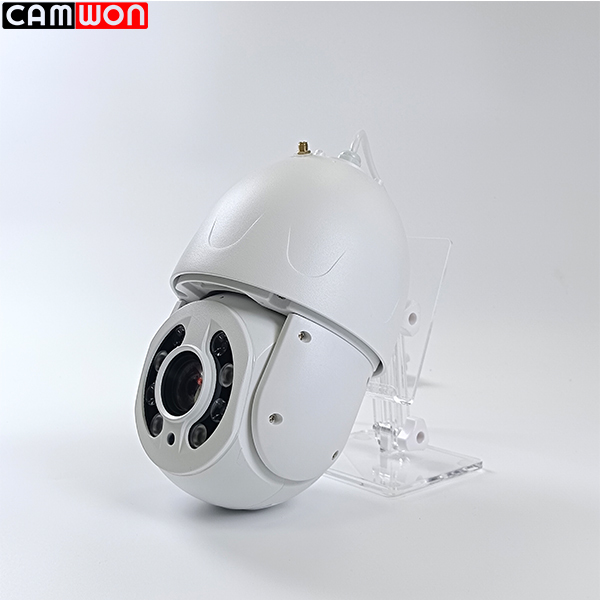

20x Optical Zoom PTZ Camera 5MP / 8MP High Definition Security Camera 0



This camera features 20X optical zoom, letting you magnify distant objects in rural or wide-area scenes with exceptional clarity. It reveals fine details that are invisible at normal viewing distances.

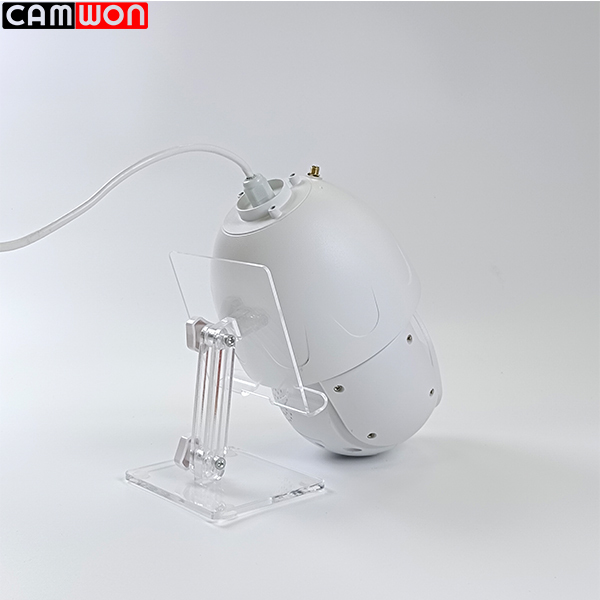

20x Optical Zoom PTZ Camera 5MP / 8MP High Definition Security Camera 1



This PTZ camera supports 355° horizontal and 90° vertical rotation, allowing you to cover almost every corner of your property. You can easily control the viewing angle via your smartphone for full-area monitoring.

20x Optical Zoom PTZ Camera 5MP / 8MP High Definition Security Camera 2



This 5.0 megapixel HD camera is equipped with 8pcs SMD array infrared LEDs, delivering clear black-and-white night vision footage even in complete darkness.

20x Optical Zoom PTZ Camera 5MP / 8MP High Definition Security Camera 3
