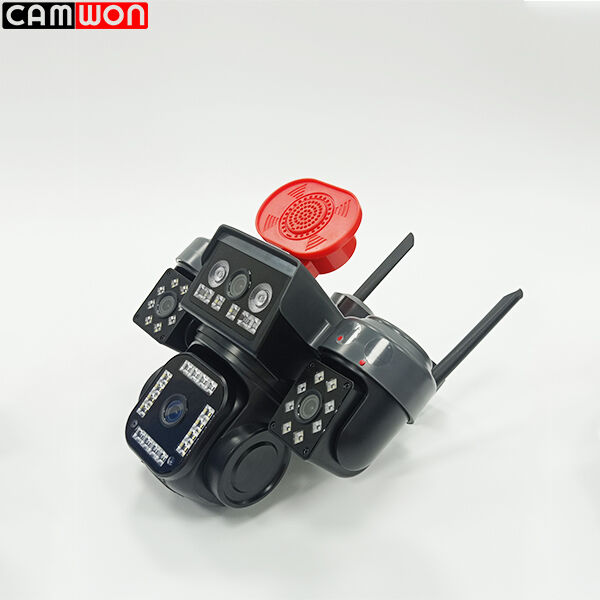

Four Lens 12X Zoom Security Cameras Smart AI Tracking Wireless WIFI Outdoor PTZ CCTV

Four Lens 12X Zoom Security Cameras Smart AI Tracking Wireless WIFI Outdoor PTZ CCTV

Maximize your surveillance coverage with our 4 Lens + 4 Screen security camera. Breaking the limits of single‑view cameras, this unit generates four distinct live views concurrently, allowing you to keep tabs on four different locations all from one screen. Instead of deploying multiple cameras, you gain wide‑angle multi‑zone monitoring with simplified wiring and installation. Adjustable lens positions help tailor coverage to match your actual site conditions. Thanks to ONVIF compliance, it connects smoothly to most NVR solutions for local recording and centralized security management, delivering practical, cost‑effective full‑range protection for both commercial and residential applications.

Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing

Specification

Product	Type	Four lens Bullet/PT module
	Main processor	H610
System	Operating system	Embedded Linux operation system
	Sensor	Four lens 1/3.2 CMOS Sensor
	Video coding standard	H.265+
	System standard	PAL 50HZ/NTSC 60HZ
	Effective resolution	2MP(1920*1080P*4)
	Video frame rate	Self-adaption
	Video stream	135kbps-2048kbps
	Minimum illumination	Day mode 1Lux, night vision mode 0.01Lux
Video	Day and night mode	Auto
	Capture function	support
	Coding standard	G.711U
	Audio input	External microphone MIC, analog MIC with S/N ratio of 42DB
Audio	Audio output	External 8Ω/MAX 1.5W speaker
	Voice Call	With AI echo cancellation, support full-duplex voice calls
	Record mode	alarm recording, timing recording
Record	Record storage	TF card/PC/NVR
	Cloud storage	Support
Alarm	Alarm detection	With 1T computing power, accurate human detection, detection distance up to 30 meters
	Sound and light alarm	Support, when equipped with dual light board, supports sound and light alarm
	Alarm Voice	Support text-to-speech and customized voice functions
	Alarm linkage	Video recording and image capture
PTZ	Preset position	Support 6 preset position settings
	Tracking Function	Support human tracking
Night light	Night light function	Support night light function
Network	RJ45	HTTP,TCP/IP,IPV4,UPNP,RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, IP Search(Support P6S IP camera, DVR, NVS and etc.)
	WIFI-6	IEEE 802.11b/g/n/ax, 802.11n 20MHz/40MHz bandwidth, support 802.11ax 20MHz bandwidth
	BLE	Support Bluetooth quick network configuration function
	NearLink	Support SLE 1.0
	Protocol	P6S, Onvif
Others	TF card capacity	Maximum support 256GB(Universal FAT32 format)
	Operating Voltage	Standard DC-12V
	Working current	185mA ±10mA
	Working environment	-20℃ --- +55℃
	Main board	52mm*38mm
	Sub-board	38*38mm (suitable for bullet/PTZ products)/28*28mm (suitable for dual lens Pan-tilt machine products)
	ICR/LENS hole distance	20mmm
