5MP Network PTZ Camera Full Color Night Vision IP66 Waterproof CCTV Security Camera

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: WIP-CP800CH
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: CCTV Security Camera Resolution: 5MP/8MP
Audio: Dual-Way Audio Power Adaptor: DC12V
Wifi: 2.4GHz & 5GHz Rotation Angle: Horizon: 0°~355°, Vertical: 0°~90°
Weatherproof: IP66 App: Camhi
Highlight:

waterproof cctv security camera

,

5mp cctv security camera

,

5mp security cctv camera


Product Description

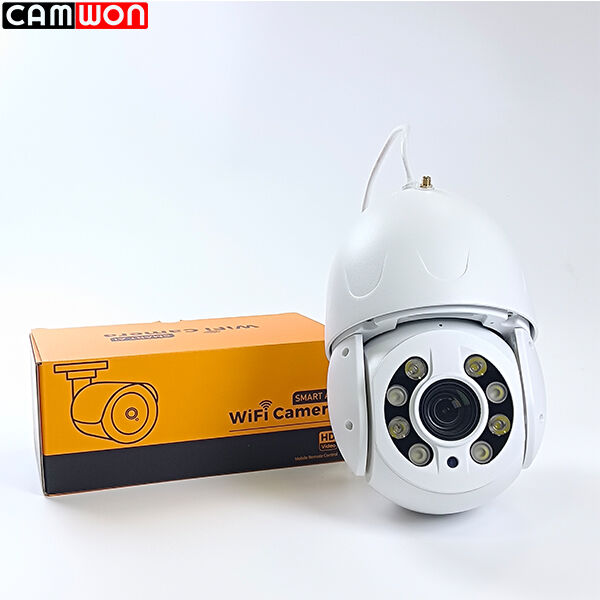

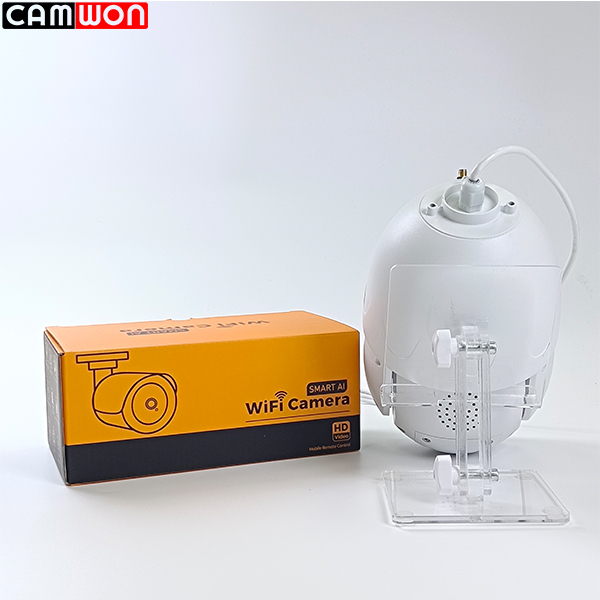

5MP Network PTZ Camera Full Color Night Vision IP66 Waterproof CCTV Security Camera


Features:

Resolution: 5.0/8.0 Megapixel
Lens: 20X Optical Zoom (4.7-94mm)
Support 2.4GHz & 5GHz, hotpot, bluetooth
AI Human Zoom Tracking
10pcs IR & White LED Light: 80m
RJ45 port, ONVIF support, CMS surveillance
Support two way audio(built-in MIC and speakers);
Support up to 128G TF card storage;
Pan Range: 0°~360° endless; Tilt: 0°~90°
Pan Speed: 60°/sec; Tilt Speed: 30°/sec
Material: Full Metal Housing, Waterproof IP67
Power: DC12V


What's include:

1 x Camera
1 x User Manual
1 x QC Pass Card
1 x Screw Bag


Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing


Specification Sheet:

APP Camhi pro / Camhi
Video Sensor 8.0 megapixel 1/2.8" SONY307 star light CMOS
Video resolution Main stream: 4K (3840x2160)
Sub stream: 720P(1280x720)
Video compression H.264/H.265
Lens 4.7-94mm 20X optical zoom auto focus lens + 10X digital zoom
View angle 61.4°~3.6°
Night vision 8pcs IR + White LEDs, night vision distance 100m
Audio Audio compression G.726/G.711
Audio code rate 8Kbps, 16bit
Audio input Built-in MIC and speakers, support two way audio
Audio output Support, can connect speakers
Audio Audio compression G.726/G.711
Audio code rate Rate adaptive
Audio input Support, can connect the pickup and MIC
Audio output Support, can connect speakers
Alarm Motion detecting alarm Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push
Alarm recording Support Micro SD card and PC client linkage alarm recording
Storage Micro SD card Support up to 128G micro SD card
Recording mode Alarm record, timing record
Video playback Support APP, IE browser, remote client play and download the video
PTZ Rotation angle Horizon: 0°~355°, Vertical: 0°~90°
Horizontal speed 20°~ 40°/S
Vertical speed 10°~ 20°/S
Preset Support 8 preset points
General specification Power DC12V 2A
Operating environment Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing
Waterproof level IP66
Product size 190mm×130mm×235mm(L×W×H)
Product weight 1.4kg
Package size 275mmx230mmx170mm(L×W×H)
Package weight 2.0kg
Reset button Support


More Information:

Built with IP66 weather resistance, the camera works reliably outdoors in all weather conditions. It also features infrared night vision, ensuring clear footage even in complete darkness.

5MP Network PTZ Camera Full Color Night Vision IP66 Waterproof CCTV Security Camera 0


With 20X zoom capability, you can easily focus on specific targets across large landscapes, such as remote buildings or farm areas. It ensures no critical detail is missed during long-range monitoring.

5MP Network PTZ Camera Full Color Night Vision IP66 Waterproof CCTV Security Camera 1


With flexible pan-tilt rotation, this camera eliminates blind spots in home surveillance. It lets you remotely adjust the lens direction to check different areas, such as the front yard, driveway, or backyard.

5MP Network PTZ Camera Full Color Night Vision IP66 Waterproof CCTV Security Camera 2


With an 80-meter night vision distance, this camera can monitor large outdoor areas effectively at night, ensuring no details are missed in low-light conditions.

5MP Network PTZ Camera Full Color Night Vision IP66 Waterproof CCTV Security Camera 3
