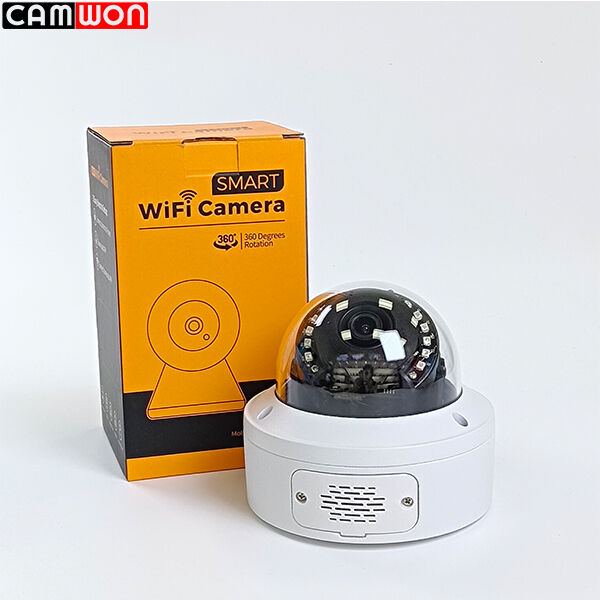

Wi-Fi Security Smart Detection Camera with Large Viewing Angle Outdoor Cameras

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: WIP-SD500AA
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: Smart Detection Camera Resolution: 4MP/5MP
Power: DC12V Night Vision: 20m
Local Storage: Up To 128G Micro SD Lens: 3.6mm
Alarm: Push Alert Via App, FTP, Email App: Camhi
Highlight:

smart outdoor cameras

,

smart outdoor poe cameras


Product Description

 Wi-Fi Security Smart Detection Camera with Large Viewing Angle Outdoor Cameras


Product Introduction:

Built-in two-way audio lets you listen and speak remotely via app — perfect for greeting visitors or warning intruders. It supports up to 128GB TF card storage and is ONVIF-compliant for seamless CMS surveillance integration, giving you full control over your security footage.


Features:

Resolution: 5Mp
Lens: 3.6mm
AI Human detection
Support 2.4GHz & 5GHz, hotpot, bluetooth
Built-in Two way audio
RJ45 port, ONVIF support, CMS surveillance
Night Vision: 20m (12pcs IR Array);
Support up to 128G TF card storage;
Alarm: Push alert via app, FTP, Email
Power: DC12V


What's included:
1 x Camera
1 x User Manual
1 x QC Pass Card
1 x Screw Bag


Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing


Specification Sheet:

Sensor 1/2.7" GC5603 Ingenic T41NQ
Pixel 5.0MP
Day/Night Function Auto IR-CUT
Video Compression Format H.265
Dual Stream Supported
Image Resolution Main stream 2880x1620, Sub stream 800x448
Video Frame Rate 12.5fps (PAL), 12.5fps (NTSC)
Video Bitrate 32Kbps ~ 6Mbps
Night Vision Starlight IR: 30m
Network Protocol TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET, etc.
Motion Detection Adjustable sensitivity 0-100; supports 4 detection zones
ONVIF Protocol ONVIF 2.4 Supported
IE Application Built-in Web Server, accessible via browser for viewing and control
Mobile Monitoring Supports iOS and Android
Dynamic DNS Supported for LAN and Internet
4G Signal Supported
4G Bands (EU CTA4) L716-EU
LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
Audio Intercom Supported
TF Card Storage Supports up to 128GB TF card
Other Features Human, Vehicle, Pet Detection Supported
User Management Multi-user permission management, supports simultaneous access
Network Interface 1x RJ45, 10/100M Ethernet
Module Power Consumption DC 12V 2A, 1.8W
Operating Temperature & Humidity 0°C ~ 55°C, 10% ~ 95% RH


More Information:

Equipped with clear two-way audio, this camera allows you to communicate with people on-site in real time. Whether you’re greeting visitors, talking to family members, or warning off intruders, the built-in speaker and microphone ensure smooth, convenient interactions.

 Wi-Fi Security Smart Detection Camera with Large Viewing Angle Outdoor Cameras 0


When an intrusion is detected, the system sends instant push notifications to your smartphone, accompanied by a visual alert siren. This dual deterrence not only warns you in real time but also scares off potential intruders to protect your home.

 Wi-Fi Security Smart Detection Camera with Large Viewing Angle Outdoor Cameras 1


Equipped with clear two-way audio, this camera allows you to communicate with people on-site in real time. Whether you’re greeting visitors, talking to family members, or warning off intruders, the built-in speaker and microphone ensure smooth, convenient interactions.

 Wi-Fi Security Smart Detection Camera with Large Viewing Angle Outdoor Cameras 2
