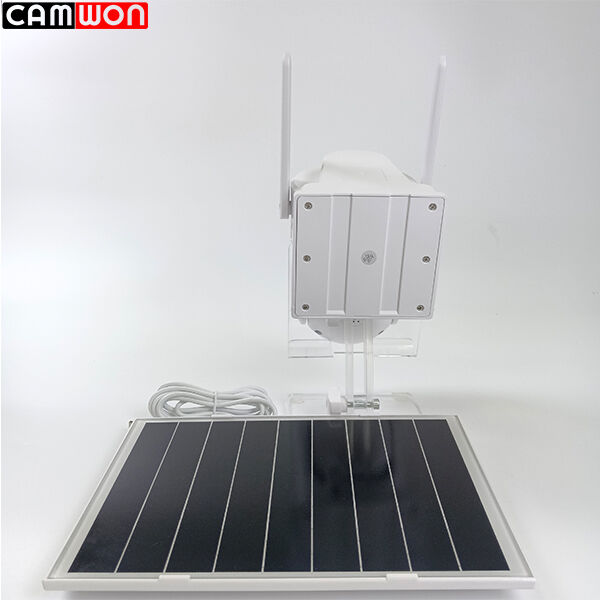

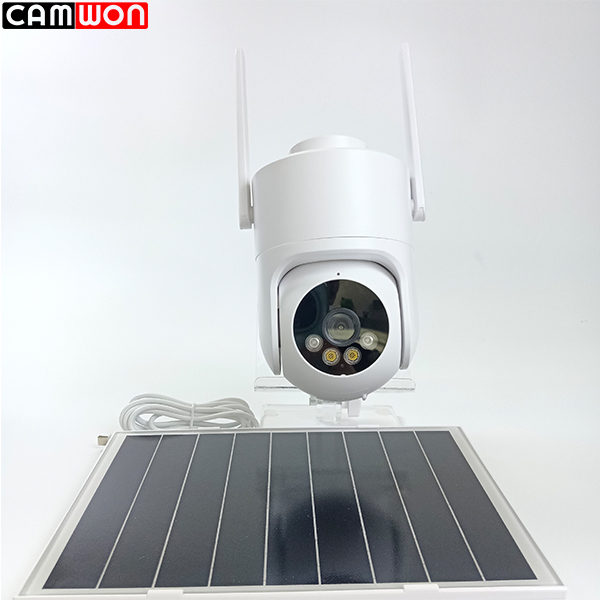

Smart AOV Solar Camera 4G Sim Card Solar Security Camera Outdoor

Basic Information
Brand Name: OEM Brand
Certification: CE, ROHS,EN-18031, UKCA, TELEC, REACH,BSCI
Model Number: WIP-CP300BX
Minimum Order Quantity: One Carton
Get Best Price
Chat Now
Detail Information
Name: AOV Solar Camera Solar Panel Power: 8W
Battery Capacity: 10400mAh Resolution: 2304*1296/3MP
Network: WiFi/4G Recording Mode: 24-hour Recording Mode
Color: Black/White Optional Detection Range: Up To 30 Meters
Highlight:

Smart AOV Solar Camera

,

4G Sim Card Solar Security Camera

,

Sim Card Solar Security Camera Outdoor


Product Description

Wholesale Solar 4G Sim Card AOV Camera Solar Powered Panel Smart Outdoor CCTV Camera



What Is an AOV Solar Camera?

AOV (Always-On Video) Solar Camera is a new-generation solar-powered security camera that can record video 24 hours a day. Unlike traditional solar cameras, it does not use a PIR motion sensor. Instead, the camera stays active all the time and continuously captures video, so no important moment is missed. Thanks to advanced low-power technology and a solar power system, AOV camera can achieve full-day recording while still operating on solar energy.



Product Supports:

● OEM / ODM Support

● Giftbox Customized

● Free Logo Printing



AOV Solar Camera vs. Traditional PIR Solar Camera

Traditional PIR Solar Camera

  • Uses a PIR sensor to detect motion

  • Starts recording only when motion is detected

  • May miss events if motion is too fast, too far, or blocked

  • Lower power consumption, but limited coverage

Specification



Model NO.  WIP-CP300BX
APP Camhi pro
Sensing Principle Human Detection
Working Principle When no one is in view, the device captures a single frame per second. When a human appears, the frame rate drops to 15 frames per second.
Main Chip HI3516V608
Sensor 1/2.9" CMOS Sensor
4G Module: EU: LTE-FDD B1/B3/B5/B7/B8/B20/B28
US: LTE-FDD B2/B4/B5/B12/B13/B14/B66/B71
Network Protocol P2P
Adjustable Angle Pan: 320°, Tilt: 90°
Resolution 2304*1296/3MP
Focal Length 4mm@F1.6
Shooting Angle 83°
Battery Capacity 10400mAh
Solar Panel Power 8W
Maximum Charging Current 2000mA
Night Shooting Infrared + White Light (Fill Light)
White Light Power ≤0.2W
Infrared Power ≤0.2W
Sensing Distance 0-30m
Operating Temperature -15°C to 60°C
Operating Humidity 0%-90%RH
Standby Power Consumption Approximately 0.16W
Operating Power Consumption ≤1W during the day, ≤2.2W at night
Waterproof Rating IP66
Packaging Weight 1.5kg (including 4 18650 batteries)





AOV Solar Camera

  • No PIR sensor required

  • Records video continuously, 24/7

  • Captures full events from start to finish

  • Provides more reliable and complete security monitoring

Smart AOV Solar Camera 4G Sim Card Solar Security Camera Outdoor 0





Low Frame Rate Recording in AOV Solar Camera



Low frame rate recording is a key technology used in AOV Solar Camera to enable continuous, 24-hour video recording while keeping power consumption extremely low. Instead of recording video at a high frame rate all the time, the camera captures fewer frames per second during normal monitoring. This significantly reduces energy usage, allowing the camera to operate reliably on solar power.



When important activity occurs, the recorded frames still provide a clear and complete view of the event, making it easy to understand what happened. By balancing video continuity and power efficiency, low frame rate recording allows AOV solar camera to stay always on without relying on wired power.

Smart AOV Solar Camera 4G Sim Card Solar Security Camera Outdoor 1



Long Detection Range up to 30 Meters



AOV Solar Camera is designed with an advanced video-based detection system that provides a detection range of up to 30 meters. Unlike traditional PIR-based cameras, which are limited by sensor sensitivity and environmental conditions, the AOV camera analyzes video data directly to detect activity at longer distances.



In comparison, a traditional PIR solar camera typically has a detection range of only 10 to 12 meters, limited by the physical characteristics of the PIR sensor. This shorter range may result in missed events beyond close proximity.



With nearly three times the detection distance, AOV solar camera reduces blind spots and delivers more reliable security monitoring for large or remote areas.

Smart AOV Solar Camera 4G Sim Card Solar Security Camera Outdoor 2
